Description
Specifications
Description :

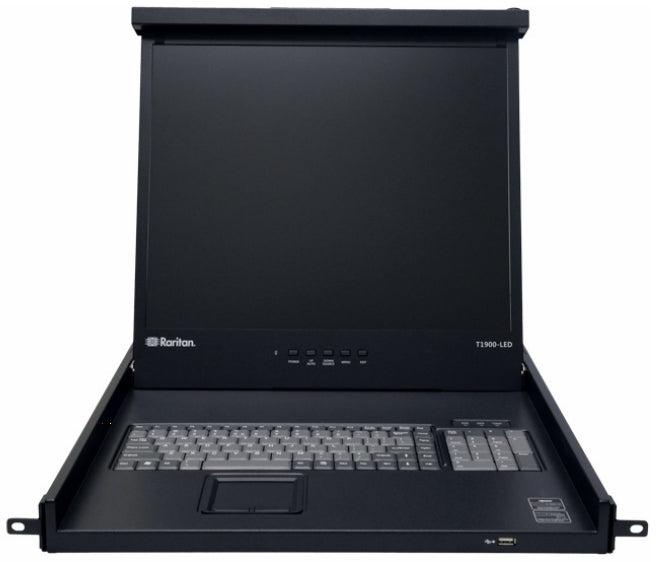

LED-Backlit LCD Console DrawersRaritan T1900. Display diagonal: 48.3 cm (19"), Display resolution: 1280 x 1024 pixels, Display: TFT. Interface: DVI-D, VGA, USB 2.0. Certification: FCC, UL, CE, UCCI. Power consumption (typical): 16.2 W, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Width: 434 mm, Height: 43.5 mm, Depth: 569 mm
Rackmount LCD Consoles
Raritan’s 1U, 17" T1700-LED and 19" T1900-LED Console Drawers with LED-backlit LCD displays and DVI-D and VGA inputs, connect to your existing analog or digital KVM switches and provide video, keyboard and touchpad functionality from a single workstation to manage one or multiple racks of servers.
- The 17 inch T1700-LED supports up to a 1080P, 1920x1080@60Hz, and the aspect ratio is 16:9.
- The 19 inch T1900-LED supports up to a 1280x1024@75Hz video resolution with an aspect ratio of 4:3.
They're perfect for the administration of servers in data centers, server rooms and labs.
High Resolution Video Display
There's widescreen support for DVI-D video input for high definition video up to and including a 1920x1080 for the 17" model and 1280x1024 for the 19" one.
DVI or VGA Video Inputs
Both rackmount console drawers support DVI-D video input for high definition video, including 480P, 720P and 1080P. They also support standard VGA input.
Space Saving Design
The 1U modular design takes up to 85% less space than a full sized keyboard, monitor, and mouse and manages one or more servers at the rack.
Specifications :
General Information
Manufacturer | Legrand Group |
---|---|
Manufacturer Part Number | T1900-LED |
Manufacturer Website Address | http://www.legrand.us |
Brand Name | Raritan |
Product Model | T1900-LED |
Product Name | T1900-LED LCD Rack Console |
Product Type | LCD Rack Console |
UPC | 785813026224 |
Screen Size | 19" |
---|---|
Display Screen Type | LCD |
Screen Resolution | 1280 x 1024 |
Height | 1.7" |
---|---|
Width | 17.1" |
Depth | 22.4" |
Weight (Approximate) | 27.78 lb |
Environmentally Friendly | Yes |
---|
