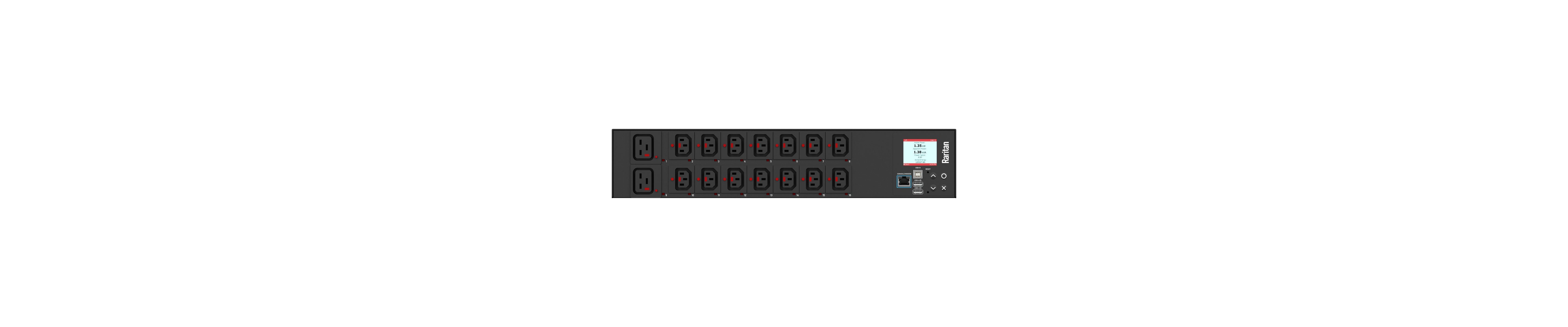

Raritan PX3-5367CR-E2 power distribution unit (PDU) 16 AC outlet(s) 2U Black

SKU: PX3-5367CR-E2

Regular price $1,234.29
Regular price Sale price $1,234.29
Sale Sold out
Shipping calculated at checkout.
          Que. & Ans.

          Description :

          IEC60320 C13, IEC60320 C19, 200 - 240V, 16A, 50-60 Hz, Ethernet, USB, 440 x 293 x 88 mm, Black

          Raritan PX3-5367CR-E2. PDU types: Monitored, Switched, Rack capacity: 2U, Type: Single-phase. AC outlets quantity: 16 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 320. Cable length: 3 m, Security algorithms: HTTPS,SSH. Monitoring: Current, Power, Voltage, Management protocols: HTTP(s); SSH; Telnet; RS-232 (Serial); Power IQ; SNMP version v2/v3; SMTP; JSON-RPC; Modbus over.... Nominal input voltage: 230 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz

          Monitored and switched rack power distribution unit (2U [horizontal], 3.7kVA, 16 outlets). INPUT: 230v, 16a - IEC 60320 C20 plug (2P3W); OUTPUT: 14@ C13 Locking, 2@ C19 Locking outlets; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per outlet; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Cascading upto 16 PDU's using single Ethernet or USB connection. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Dual 10/100/1000 Ethernet port. Tri-color status LED per receptacle. Max Dimensions 440mm x 293mm x 88mm (17.3in x 11.5in x 3.5in). Max Weight TBD. Maximum ambient temperature 60C at full load.
