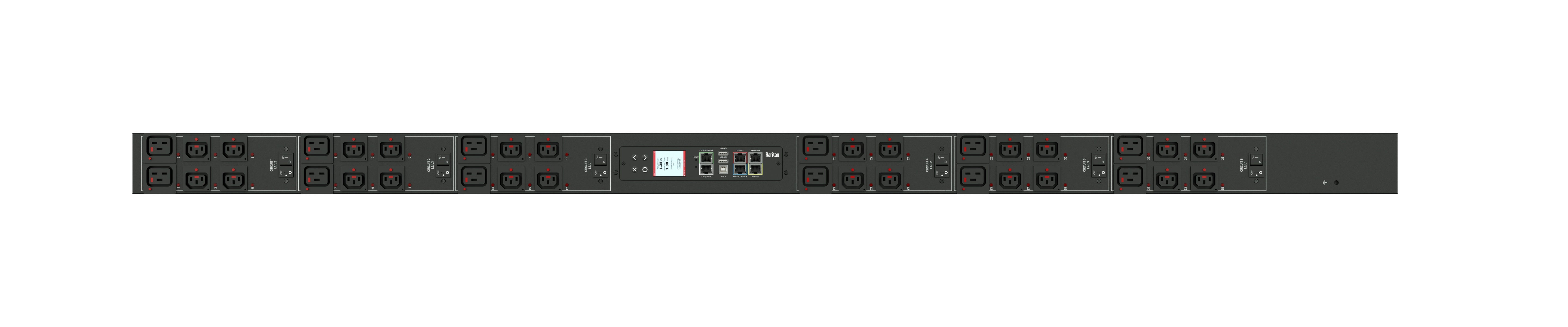

Raritan PX3-4749V-E2N1V2 power distribution unit (PDU) 36 AC outlet(s) 0U Black

SKU: PX3-4749V-E2N1V2

Regular price $2,737.26
Regular price Sale price $2,737.26
Sale Sold out
Shipping calculated at checkout.
          Que. & Ans.

          Description :

          IEC60320 C13, IEC60320 C19, Ethernet, USB, LCD, 208 - 240V, 50A, 50 - 60 Hz, 79 x 89 x 1650 mm, 13.1 kg

          Raritan PX3-4749V-E2N1V2. PDU types: Monitored, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 36 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60320. LED indicators: Status, Cable length: 3 m, Security algorithms: HTTPS,SSH. Monitoring: Current, Power, Voltage, Supported network protocols: HTTP(s); SSH; Telnet; RS-232 (Serial); Power IQ; SNMP version v2/v3; SMTP; JSON-RPC; Modbus over.... Nominal input voltage: 208 V, Maximum current: 50 A, AC input frequency: 50 - 60 Hz

          Monitored rack power distribution unit (0U [vertical], 14.4kVA, 36 outlets). INPUT: 208v (3-phase DELTA), 50a - CS8365C plug (3P4W); OUTPUT: 24@ C13 Locking, 12@ C19 Locking outlets; on 6@ 2-pole, 20a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse, per outlet; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Cascading upto 16 PDU's using single Ethernet or USB connection. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Dual 10/100/1000 Ethernet port. Tri-color status LED per receptacle. Breaker metering and alarming (0V detection). Max Dimensions 79mm x 89mm x 1650mm (3.1in x 3.5in x 65.0in). Max Weight TBD. Maximum ambient temperature 60C at full load.
