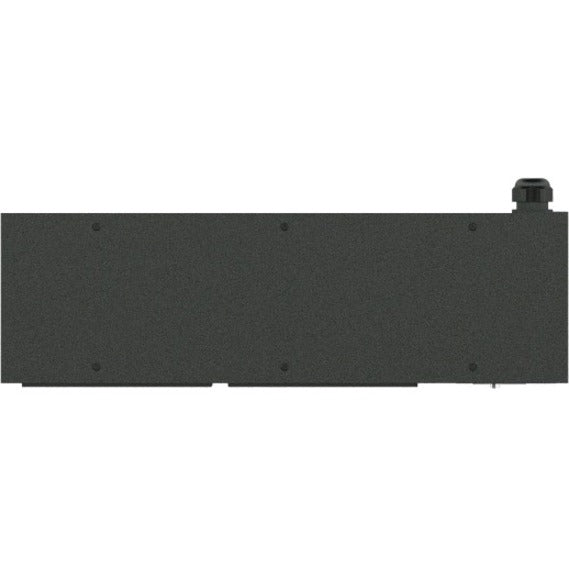

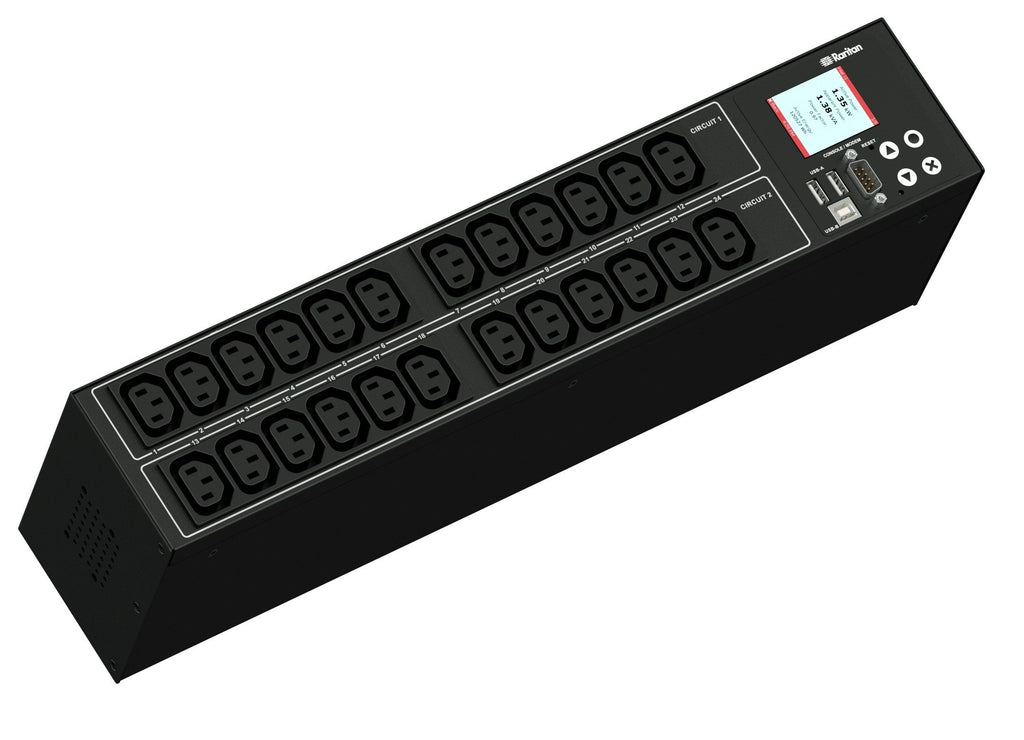

Raritan PX3-1842R power distribution unit (PDU) 30 AC outlet(s) 2U Black

SKU: PX3-1842R

Regular price $945.44
Regular price Sale price $945.44
Sale Sold out
Shipping calculated at checkout.
          Que. & Ans.

          Description :

          7.7kVA, 24xC13/6xC19, 2990249V, 440x133x88mm, 3.5kg

          Raritan PX3-1842R. PDU types: Managed, Metered, Monitored, Rack capacity: 2U, Mounting: Horizontal. AC outlets quantity: 30 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Certification: CE, Canada ICES-003, Part 15 Class A of the FCC. Monitoring: Humidity, Temperature, Management protocols: HTTP(s); SSH; Telnet; RS-232 (Serial); Power IQ; SNMP version v2/v3; SMTP; JSON-RPC; Modbus over.... Nominal input voltage: 200-240 V, Maximum current: 32 A, AC input frequency: 50/60 Hz

          Tender Text/Bid Submittal Text

          Monitored rack power distribution unit (2U [horizontal], 7.4kVA, 30 outlets). INPUT: 230v, 32a - IEC 60309 2P+E 6h 32A plug (2P3W); OUTPUT: 24@ C13, 6@ C19 outlets; on 2@ 1-pole, 16a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Cascading upto 16 PDU's using single Ethernet or USB connection. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Dual 10/100/1000 Ethernet port. Breaker metering and alarming (0V detection). Max Dimensions 440mm x 133mm x 88mm (17.3in x 5.2in x 3.5in). Max Weight 3.5 kg. Maximum ambient temperature 60C at full load.
