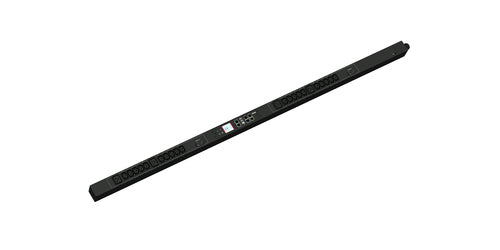

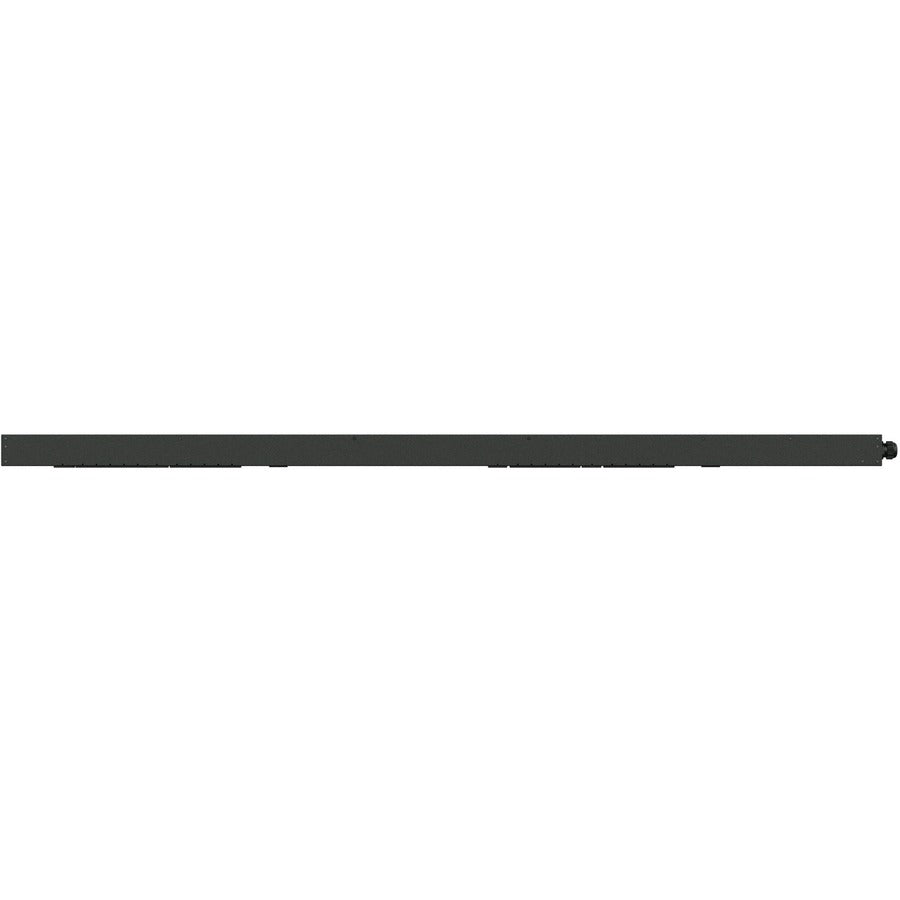

Raritan PX3-1493V power distribution unit (PDU) 24 AC outlet(s) 0U Black

SKU: PX3-1493V

Regular price $832.56
Regular price Sale price $832.56
Sale Sold out
Shipping calculated at checkout.
          Que. & Ans.

          Description :

          20xC13, 4xC19, 200-240V, 50/60Hz, 32A, 1539x55x52mm, 5.5kg, Black

          Raritan PX3-1493V. PDU types: Managed, Metered, Monitored, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3 m, Security algorithms: HTTPS,SNMPv3,SSH, Certification: CE, ICES-003, FCC. Nominal input voltage: 200-240 V, Maximum current: 32 A, AC input frequency: 50/60 Hz. Width: 1539 mm, Depth: 55 mm, Height: 52 mm


          Monitored rack power distribution unit (0U [vertical], 7.4kVA, 24 outlets). INPUT: 230v, 32a - IEC 60309 2P+E 6h 32A plug (2P3W); OUTPUT: 20@ C13, 4@ C19 outlets; on 2@ 1-pole, 16a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse; Color, matrix LCD display : Voltage, current, or active power (per line or per breaker); Alarms; Configuration information (name, ratings, IP / Networking).; Field-Replaceable, hot-swappable network module with 536MHz processor, 16MB SPI Flash, and 64MB DDR2 RAM; Gigabit(10/100/1000) Ethernet port. Secondary, redundant Ethernet port. Redundant power sharing between network modules.Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Environmental monitoring [temp/humidity] capable of up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP/PXE, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Breaker metering and alarming (0V detection). Max Dimensions 52mm x 55mm x 1539mm (2.1in x 2.2in x 60.6in). Max Weight 5.5 kg. Maximum ambient temperature 60C at full load.
