Description :
16x KVM LAN, 17" 1920x1080 LCD, 65W, 1URaritan MCD-LED17116. Console ports: RJ–45. HD type: Full HD, Maximum resolution: 1920 x 1080 pixels, Video bandwidth: 60 Hz. Product colour: Black, Rack capacity: 1U, Mean time between failures (MTBF): 30000 h. Display: LCD, Display diagonal: 43.2 cm (17"). Power source: AC, AC input voltage: 100 - 240 V, Input current: 1.5 A

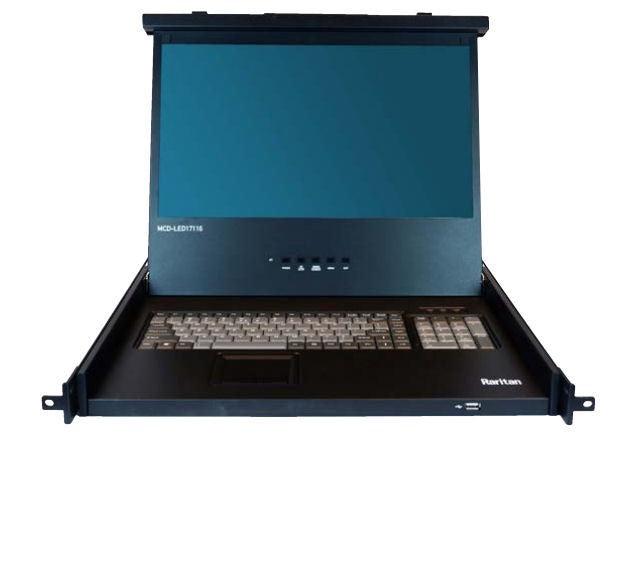

Raritan’s MasterConsole® Digital with integrated 17” LED Console Drawer (MCD-LED) is a digital KVM switch and console drawer combination for small to midsized businesses. This advanced combination brings you KVM ports for 8 and 16 servers and can be cascaded 2 levels to support up to 512 connections at distances up to 100 feet (30 meters). The flexible video interface supports both Analog — VGA and Digital — DVI, HDMI and DisplayPort with a maximum HD video resolution up to 1920x1080. The MCD-LED with its convenient space saving design simply connects to multiple computers with the use of standard Category 5/6/6e cables. MCD-LED provides at-the-rack access with a friendly user interface and convenient hotkeys to quickly access connected computers. It is ideal for performing system maintenance, administration, running applications, and troubleshooting.
Space Saving Design
The 1U modular design takes up to 85% less space than a full sized keyboard, monitor, and mouse.
Scalability and Cascading
Control 8 or 16 servers directly from the MCD-LED switch, or access up to 512 servers by cascading with Raritan’s MCD-232 Cat5 KVM switches.
Simple Installation
Plug-and-play installation, auto-configuration, and easy-to-use onscreen displays allow for easily install of the MCD-LED at the rack.
High Resolution LCD Display
Supports 1920x1080 video resolution at 150 feet.
Specifications :
General Information
Manufacturer | Legrand Group |
---|---|
Manufacturer Part Number | MCD-LED17116 |
Manufacturer Website Address | http://www.legrand.us |
Brand Name | Raritan |
Product Line | MasterConsole |
Product Model | MCD-LED17116 |
Product Name | MasterConsole MCD-LED17116 LCD Rack Console |
Product Type | LCD Rack Console |
UPC | 785813060556 |
Screen Size | 17.3" |
---|---|
Display Screen Type | LCD |
Screen Resolution | 1920 x 1080 |
HDMI | Yes |
---|---|
Network (RJ-45) | Yes |
Product Color | Black |
---|---|
Height | 1.7" |
Width | 18.9" |
Depth | 22.5" |
Weight (Approximate) | 26.46 lb |
