Qvs Video Console/Extender

Description :

QVS Video Console/Extender
VGA/WUXGA with Audio Single CAT5e/6 Extender Kit
An economical way to connect any VGA/WUXGA video display to any computer, switch or distribution amplifier. It has gain and skew to compensate with UTP cable variations. Mounting flange on the transmitter module & pass-thru audio & video port provide greater installation flexibility. Supports resolution varies from 640x480 up to 1920x1440 depending on the distance and quality of CAT5e/6 UTP cable. Using a Belden CAT5e solid cable, it can support up to 1920x1200 60Hz up to 100ft, 1280x1024 75Hz up to 300ft, 1024x768 75Hz up to 500ft. Includes transmitter & receiver, power adaptors. Required Cables: Solid CAT5e/6 Cables.

Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: QVS
Manufacturer: QVS
Product Name: Video Console/Extender
Manufacturer Part Number: VA-E
Manufacturer Website Address: http://www.qvs.com

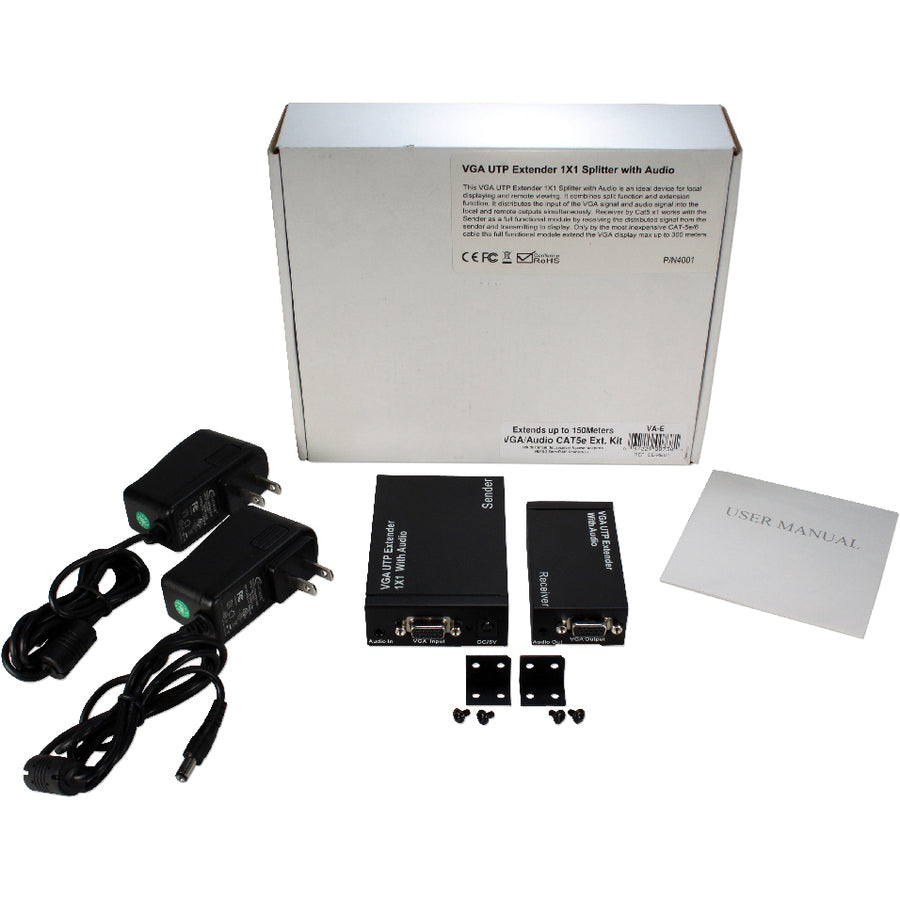

Package Contents:

• Video Console/Extender


• Power Adapter


• Mounting Kit
