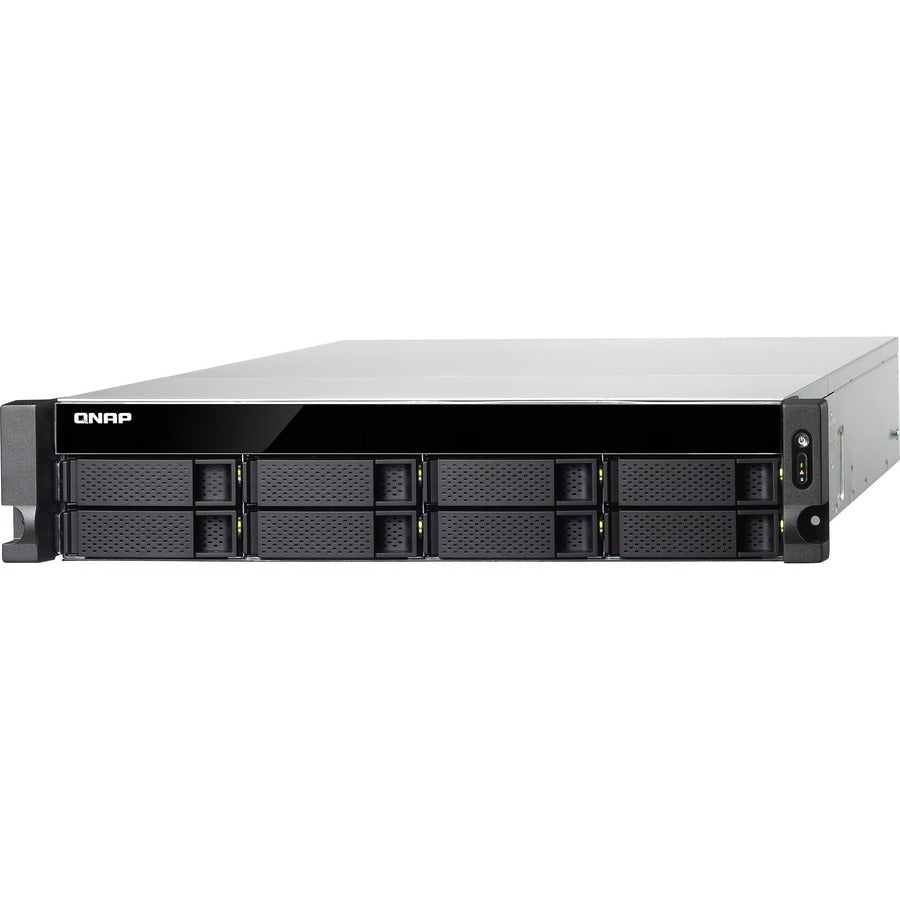

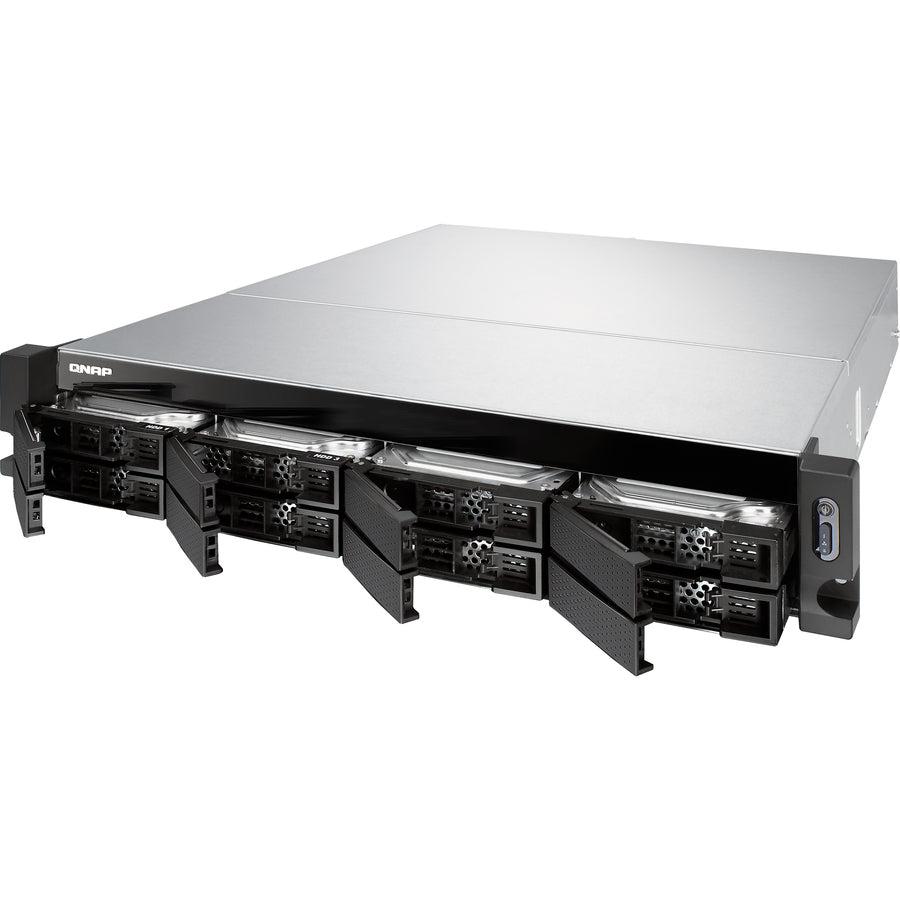

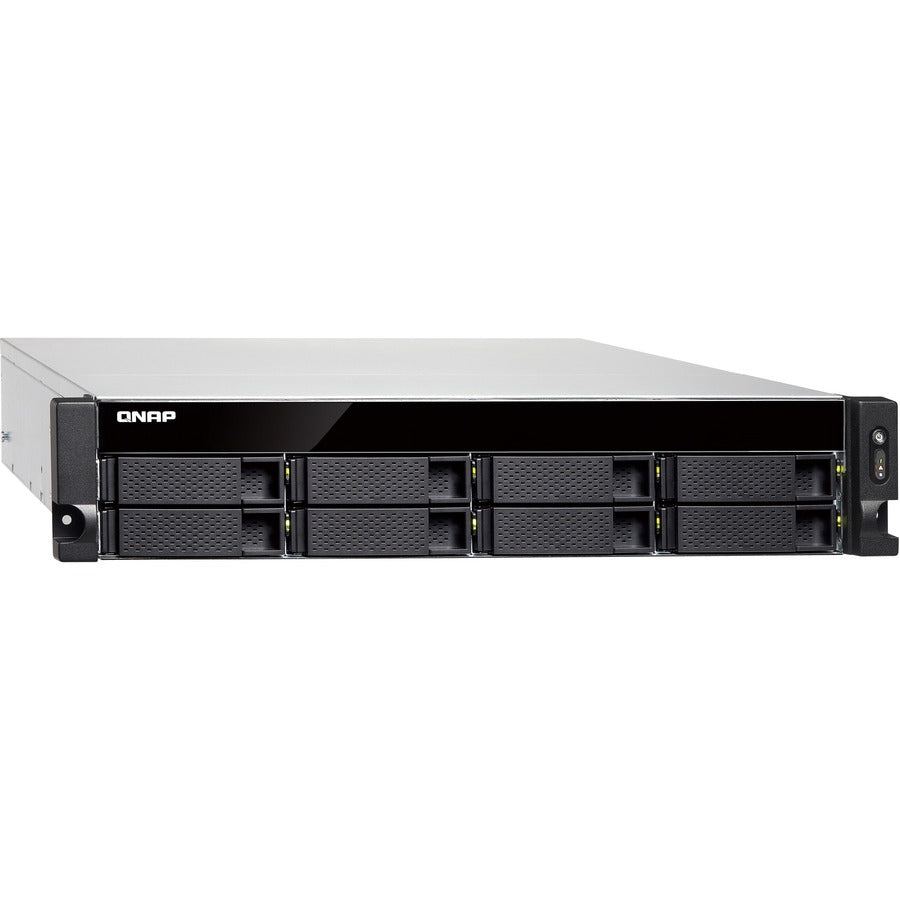

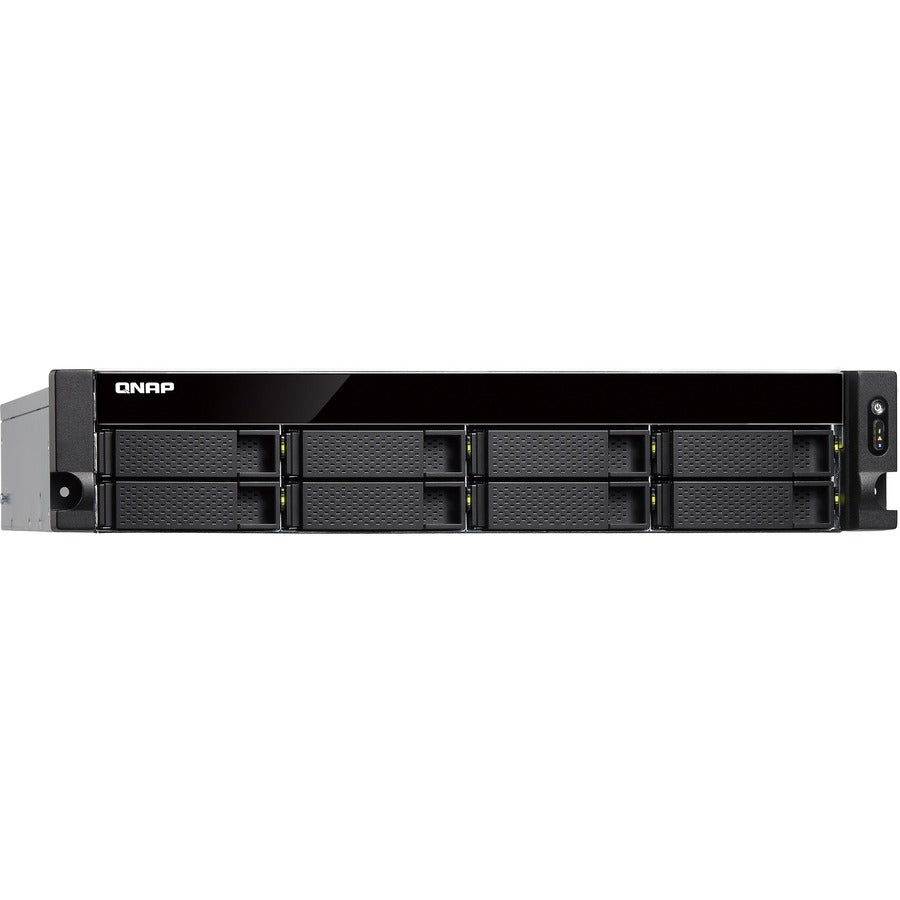

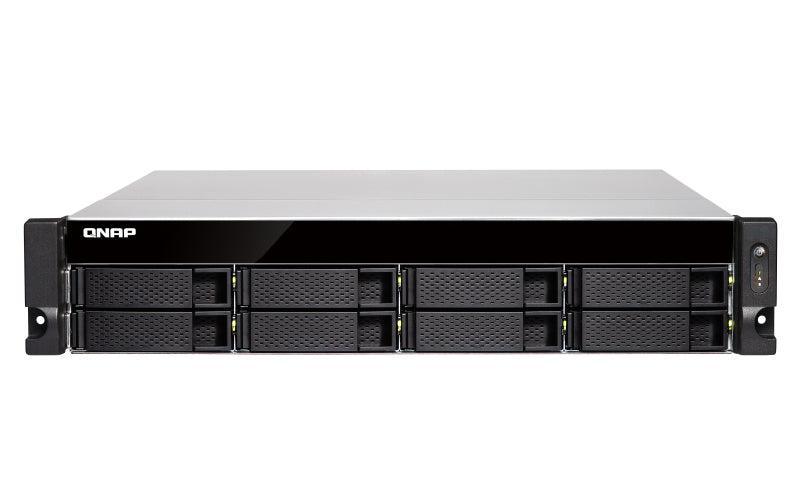

Qnap Tvs-872Xu Nas Rack (2U) Ethernet Lan Black I3-8100

Description :

Intel Core i3-8100 3.6 GHz, 4 GB DDR4, 2 x 10GbE SFP+, 4 x RJ45, 2 x Type-C USB 3.1 Gen2, 4 x Type-A USB 3.1 Gen2, 1 x HDMI 2.0

QNAP TVS-872XU. Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA III, Storage drive sizes supported: 2.5,3.5". Processor family: Intel® Core™ i3, Processor manufacturer: Intel, Processor model: i3-8100. Internal memory: 4 GB, Internal memory type: DDR4, Maximum RAM supported: 64 GB. Fiber optic connector: SFP+. On-board graphics adapter base frequency: 350 MHz, On-board graphics adapter dynamic frequency (max): 1100 MHz, On-board graphics adapter ID: 0x3E91

8th Gen Intel® Core™ processors. Built-in Mellanox® ConnectX®-4 Lx 10GbE Controller. iSER supported.
Designed for diversified business IT environments, the TVS-872XU features an 8th generation Intel® Core™ processor, Mellanox® ConnectX®-4 Lx 10GbE controller, and PCIe expansion for 25GbE / 40GbE connectivity to boost intensive large file sharing, heavily-loaded backups, or virtualization applications. PCIe expandability also allows for installing graphics cards to empower AI workflows and video transcoding, and the 4K HDMI 2.0 output can display surveillance videos on a monitor or TV to improve surveillance management.

8th Gen Intel® Core™ processors with more cores and power, and up to 64 GB RAM
The TVS-872XU features an 8th Gen Intel® Core™ i3-8100 quad-core 3.6 GHz processor and up to 64 GB DDR4 memory, delivering higher performance to help you accomplish more tasks efficiently. It provides four Gigabit and two 10GbE SFP+ LAN ports, supports SATA 6Gb/s drives, and features AES-NI encryption for delivering high performance while also maintaining the security of your data.

Dual-channel memory delivers power-smart performance
The TVS-872XU supports dual-channel DDR4 memory in four Long-DIMM slots. When using paired memory modules, the TVS-872XU can leverage the power of dual-channel architecture to boost performance. You also customize the memory configuration (supports up to 64 GB RAM) of the TVS-872XU for greater performance to tackle dynamically-changing workloads such as virtualization.

Robust. Durable. Expandable.
The TVS-872XU features high-quality hardware and expandable architecture, enabling optimum performance and flexibility to fulfill business needs in performance and application diversification.

Dual 10GbE connectivity optimizes high-speed data transfer and VMware virtualization with iSER
The TVS-872XU provides two 10GbE SFP+ ports that use the Mellanox® ConnectX®-4 Lx SmartNIC controller. They support the iSCSI Extensions for RDMA (iSER) protocol, allowing data to bypass general network drivers, the socket layer, and to directly enter memory buffers of the ESXi server and storage to offload CPU workloads. When both the VMware® server and the TVS-872XU support iSER, it can provide up to 60% increased random read/write performance and 50% decreased latency, providing an essential tool to optimize demanding virtualization applications.

Recommended usage of PCIe slots
The TVS-872XU provides multiple PCIe slots. To ensure that the SATA drives have sufficient bandwidth, it is recommended to only use low-end expansion cards, (such as a 1GbE NIC, USB 3.0 card, or Wi-Fi adapter) with the PCIe Gen2 slot (Slot 1) as this slot is connected to the PCH. For high-end expansion cards (including 10GbE/40GbE NICs, SAS cards, Mustang-200 acceleration card, and graphics cards), it is recommended to use PCIe Gen3 slots (Slot 2, 3, 4) as these slots are connected to the CPU.

Abundant I/O capability with PCIe expansion
The TVS-872XU features 4 PCIe slots that allow for the usage of various expansion cards to expand application potential.

Empower GPU-accelerated computing with graphics cards
Graphics cards are optimized for graphical calculations and transformations. The TVS-872XU provides PCIe slots for installing an AMD Radeon™ or NVIDIA® graphics card to boost data-intensive AI machine learning, while also providing benefits for imaging processing and virtual machine performance (via GPU passthrough).

SSD caching and auto tiering enable 24/7 optimized storage efficiency
By enabling Qtier™ auto-tiering on the TVS-872XU, organizations can just buy the amount of SSDs needed, and attain the highest value/performance and optimal storage efficiency for data storage and sharing.

Improve random data access speeds with an SSD cache
SSD caches accelerate IOPS performance and reduce latency for storage volumes. They are perfect for IOPS-demanding applications (including databases and virtualization) and can significantly improve overall workflows. The TVS-872XU also supports write-only SSD caches to greatly boost write-intensive applications and also RAID 5/6 SSD caches for higher performance and caching space.

Maximize the value of SSDs with Qtier Technology
Qtier™ Technology empowers the TVS-872XU with auto tiering that helps continuously optimize storage efficiency by automatically moving data between 2.5-inch SSDs and high-capacity HDDs based on the data's access frequency. Qtier™ 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSDs.

Attain enterprise-grade SSD performance levels from affordable consumer SSDs
With SSD prices continuing to fall, even small businesses and home users can easily integrate cost-effective SSDs to boost their NAS performance. The TVS-872XU supports software-defined SSD extra over-provisioning (OP) that allows you to allocate additional OP space (from 1% to 60%) to optimize random write speeds and to extend SSD lifespan. Now you can use affordable consumer SSDs for the TVS-872XU, adjust the SSD OP, and potentially attain performance and endurance levels similar to enterprise-grade SSDs to enjoy faster file backups, smoother multimedia experiences, and optimized virtualization applications.

Up to 128 monitoring channels in QVR Pro, 4K HDMI output, and real-time transcoding
The TVS-872XU has an HDMI 2.0 port which supports 4K (3840 x 2160) 60Hz output, allowing you to directly display surveillance videos and media files on a monitor or TV via HD Station. Featuring advanced Intel® UHD Graphics 630, the TVS-872XU provides high-quality 4K (H.264) and 1080p video transcoding, and you can easily convert videos to universal file formats that can be smoothly played on multiple devices

Flexibly allocate physical and virtual network resources to simplify network deployment
The Network & Virtual Switch application allows you to leverage limited physical network resources for unlimited virtual applications and centrally manage the entire network structure with a brilliantly-visualized network topology map. Flexible manageability enables you to reorganize physical and virtual network connections with greater ease, so you can allocate adequate network resources to the TVS-872XU, virtual machines and containers whenever needed. The network deployment is greatly simplified while your network management efficiency is greatly improved.

Complete backup planning
The TVS-872XU provides a reliable, flexible backup & disaster recovery solution to assist organizations in routine backup jobs with cost-efficiency and high productivity.

Snapshots for Volume & LUN
Snapshots are essential for NAS data protection, and their block-level feature makes them a dependable method for protecting data in the face of the growing threat of ransomware. The TVS-872XU supports up to 256 snapshots per volume/LUN, and up to 1,024 snapshots per NAS.

Hybrid Backup Sync
Consolidates backup, restoration and synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan.

VM backup
With high performance, potentially huge storage capacities, integrated virtualization solutions, and support for snapshots that record the state of the system at any time, the TVS-872XU is perfect for backing up virtual machines.

Windows and Mac backup
Use the license-free QNAP NetBak Replicator utility to back up/restore files from Windows® computers. Time Machine® is fully supported for backing up Mac® computers.

Optimized collaboration with seamless file sharing and sync
The TVS-872XU centrally stores data and files, and supports SMB/CIFS, AFP and NFS protocols for file sharing across Windows®, Mac®, and Linux®/UNIX® networks. Coupled with Qsync (a utility that turns a QNAP NAS into a safe, high-capacity data center for file synchronization) any file uploaded to the TVS-872XU will be made available for all linked devices, such as computers, laptops and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration. Files can be centrally managed using File Station, including files from mobile devices and optical disc drives. File Station also allows you to mount a remote NAS, and transfer files between your NAS and public cloud services for greater convenience.

All-in-one server to host virtual machines and containers
Virtualization Station and Container Station introduce a hybrid approach to virtualization. No matter your virtualization needs, you can count on QNAP for complete virtualization support.

Complete control over system status and data security
In open network environments, data on connected devices may be exposed in a potential hack. The TVS-872XU provides numerous security options, such as encrypted access, IP blocking, 2-step verification, and more. Administrators can also control the access rights of each user to different folders, and use the following tools to enhance security management.

Flexible and economical storage expansion
QNAP provides several ways to expand your NAS storage as needed to accommodate data and business growth.
