Skip to product information
1 of 5

QNAP Systems

QNAP Turbo NAS TS-253E-8G SAN/NAS Storage System TS-253E-8G-US

QNAP Turbo NAS TS-253E-8G SAN/NAS Storage System TS-253E-8G-US

SKU:TS-253E-8G-US

Regular price $545.01
Regular price Sale price $545.01
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

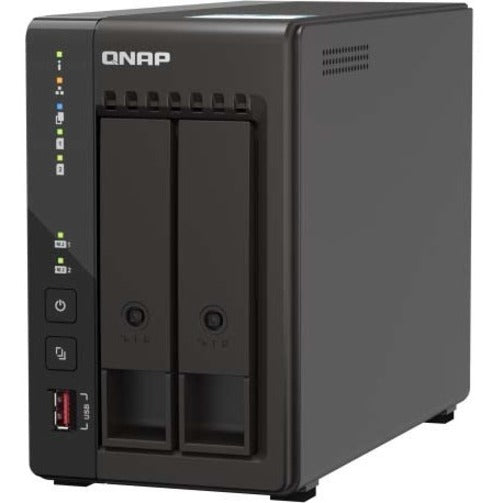

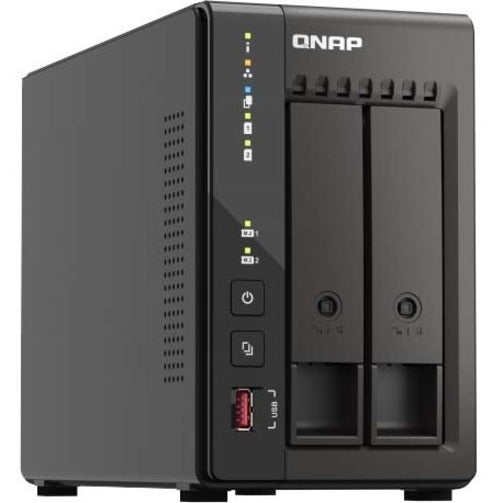

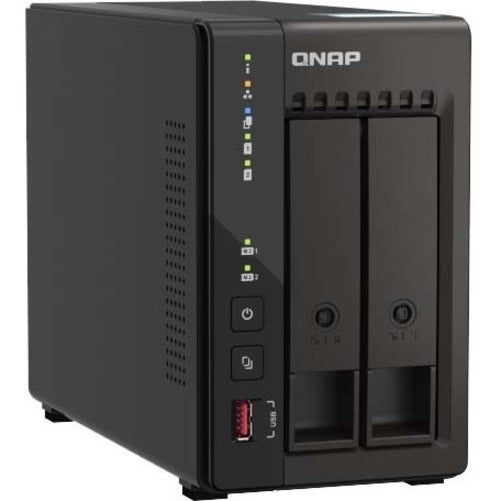

          QNAP Turbo NAS TS-253E-8G SAN/NAS Storage System

          TS-253E | Dual 2.5GbE, 8GB RAM, and long-term availability

          The TS-253E features 2.5GbE connectivity, 8GB RAM, and M.2 slots for NVMe SSD caching to deliver high performance for applications such as surveillance systems, virtual machines, file servers or backup servers. Dual HDMI outputs also provide direct multimedia playback and robust surveillance monitoring. QNAP will provide long-term availability and support for the TS-253E, providing a great choice for businesses requiring matching NAS models deployed in multiple locations.

          Dual 2.5GbE ports

          2.5 times faster network speed with existing CAT5e cables; supports port trunking to deliver up to 5Gbps.

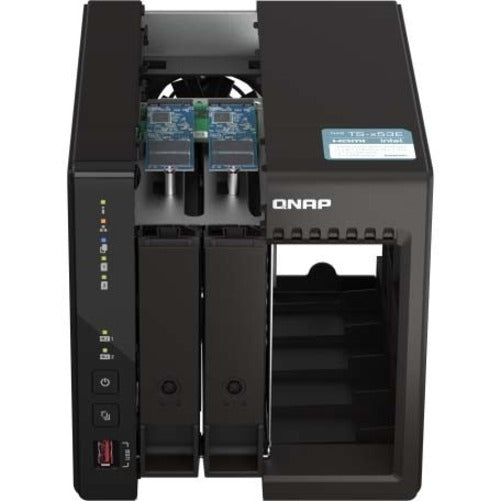

          Dual M.2 2280 PCIe slots

          Attain greater NAS performance by installing M.2 2280 NVMe PCIe SSDs (sold separately) or Edge TPU.

          8GB RAM onboard

          System performance and multitasking is optimized with 8GB RAM.

          Long-term model

          The TS-253E will be available and supported by QNAP for an extended period, up to 2029.

          Dual HDMI output

          The dual-screen extension can be used for surveillance or 4K high-resolution video playback.

          Expand storage capacity

          Supports USB expansion enclosures.

          Available Models | TS-253E-8G

          Intel® Celeron® J6412 4-core/4-thread processor, burst up to 2.6 GHz, 8 GB on board

          Intel quad-core processor burst up to 2.6 GHz with AES-NI encryption

          Processor

          Intel® Celeron® J6412 quad-core processor (burst up to 2.6GHz)

          RAM

          Onboard 8GB (non-expandable)

          Encryption

          The Intel® AES-NI encryption engine boosts encryption performance while maintaining the confidentiality of NAS data.

          USB ports

          2 x USB 3.2 Gen2
          2 x USB 2.0

          Long-term availability

          The TS-253E is powered by an Intel® Celeron® J6412 processor and will be available and supported for an extended period. This long-term availability makes the TS-253E an ideal choice for MSP, SI, and other IT-related businesses requiring matching NAS models for long-term projects.

          24/7 surveillance solution for stores and branch offices

          The TS-253E is a one-stop surveillance solution for centrally recording/managing multiple cameras and surveillance servers based in your offices, stores, and other working spaces.

          Record/monitor your environment

          QVR Elite is QNAP's subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-253E and enjoy simplified camera management, storage space allocation, camera live viewing and playback.


          • SAN/NAS Storage System offers maximum storage efficiency and convenience

          • Supports up to 2 drives; for flexible storage options

          • Through RAID levels (0, 1, jbod), RAID provides data reliability, fault tolerance and improves overall performance

          • Experience responsive performance, power, adaptability and fun with Intel Celeron 2 ghz processor

          • Through RAID levels (0, 1, jbod), RAID provides data reliability, fault tolerance and improves overall performance

          • Tower form factor is ideal for running internal applications, serving public websites or storing sensitive customer data with maximum productivity

          • 2.5 Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity

          • It's qts 5.0.1 operating system offers powerful platform to efficiently run routine applications

          Product Type: SAN/NAS Storage System
          Additional Warranty Information: The TS-253E is backed by a 3-year warranty at no additional cost.
          Brand Name: QNAP
          Form Factor: Tower
          Manufacturer: QNAP Systems
          Product Model: TS-253E-8G
          Product Name: Turbo NAS TS-253E-8G SAN/NAS Storage System
          Product Line: Turbo NAS
          Manufacturer Part Number: TS-253E-8G-US
          Manufacturer Website Address: http://www.qnap.com
          Package Contents:

          • Turbo NAS TS-253E-8G SAN/NAS Storage System
          • 1 x Ethernet Cable
          • 1 x Power Cord
          • AC Adapter
          • 2 x Flat Head Screw (for M.2 SSD)
          • 8 x Flat Head Screw (for 3.5" HDD)
          • 6 x Flat Head Screw (for 2.5" HDD)
          • Quick Installation Guide (QIG)
          • 2 x Drive Tray Keys

          Limited Warranty: 3 Year
          Weight (Approximate): 2.82 lb

          Specifications :

          General Information

          Manufacturer QNAP Systems
          Manufacturer Part Number TS-253E-8G-US
          Manufacturer Website Address http://www.qnap.com
          Brand Name QNAP
          Product Line Turbo NAS
          Product Model TS-253E-8G
          Product Name Turbo NAS TS-253E-8G SAN/NAS Storage System
          Product Type SAN/NAS Storage System
          UPC 885022024520

          Processor

          Processor ManufacturerIntel
          Processor TypeCeleron
          Processor ModelJ6412
          Processor CoreQuad-core (4 Core)
          Processor Speed2 GHz
          Ethernet Technology2.5 Gigabit Ethernet

          Interfaces/Ports

          HDMIYes
          Total Number of USB Ports4
          Network (RJ-45)Yes
          Operating SystemQTS 5.0.1
          Height6.6"
          Width4"
          Depth8.9"
          Weight (Approximate)2.82 lb

          Miscellaneous

          Package Contents
          • Turbo NAS TS-253E-8G SAN/NAS Storage System
          • 1 x Ethernet Cable
          • 1 x Power Cord
          • AC Adapter
          • 2 x Flat Head Screw (for M.2 SSD)
          • 8 x Flat Head Screw (for 3.5" HDD)
          • 6 x Flat Head Screw (for 2.5" HDD)
          • Quick Installation Guide (QIG)
          • 2 x Drive Tray Keys

          Warranty

          Limited Warranty3 Year
          Additional Warranty InformationThe TS-253E is backed by a 3-year warranty at no additional cost.
