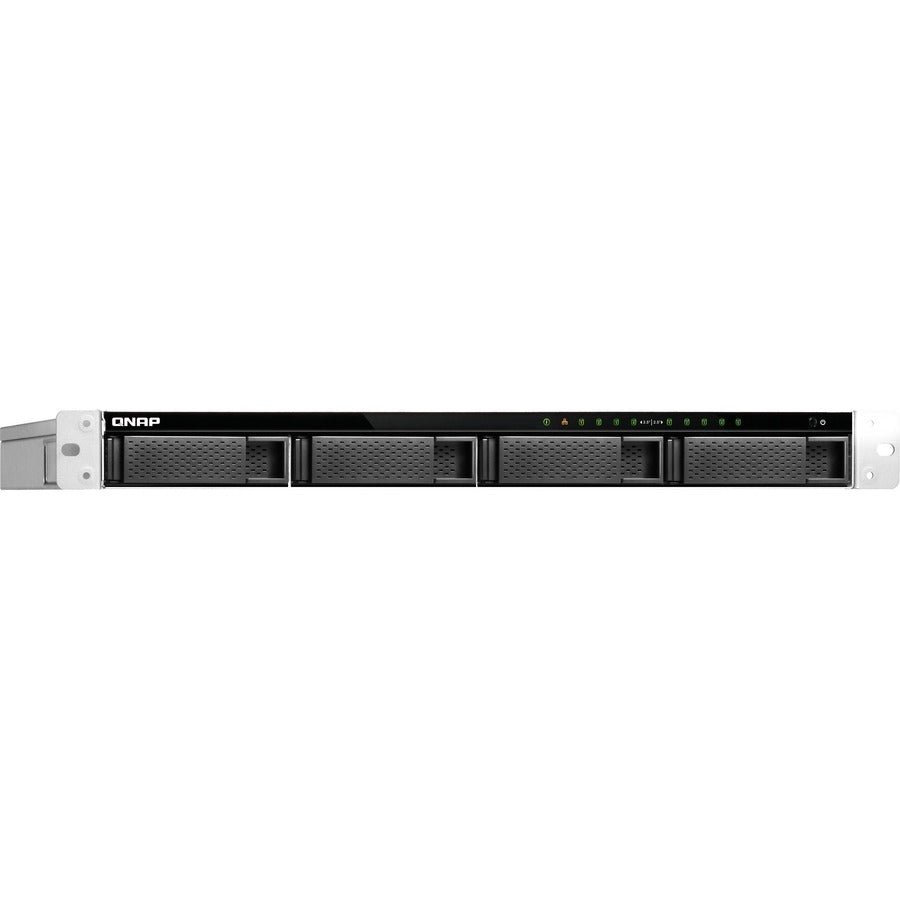

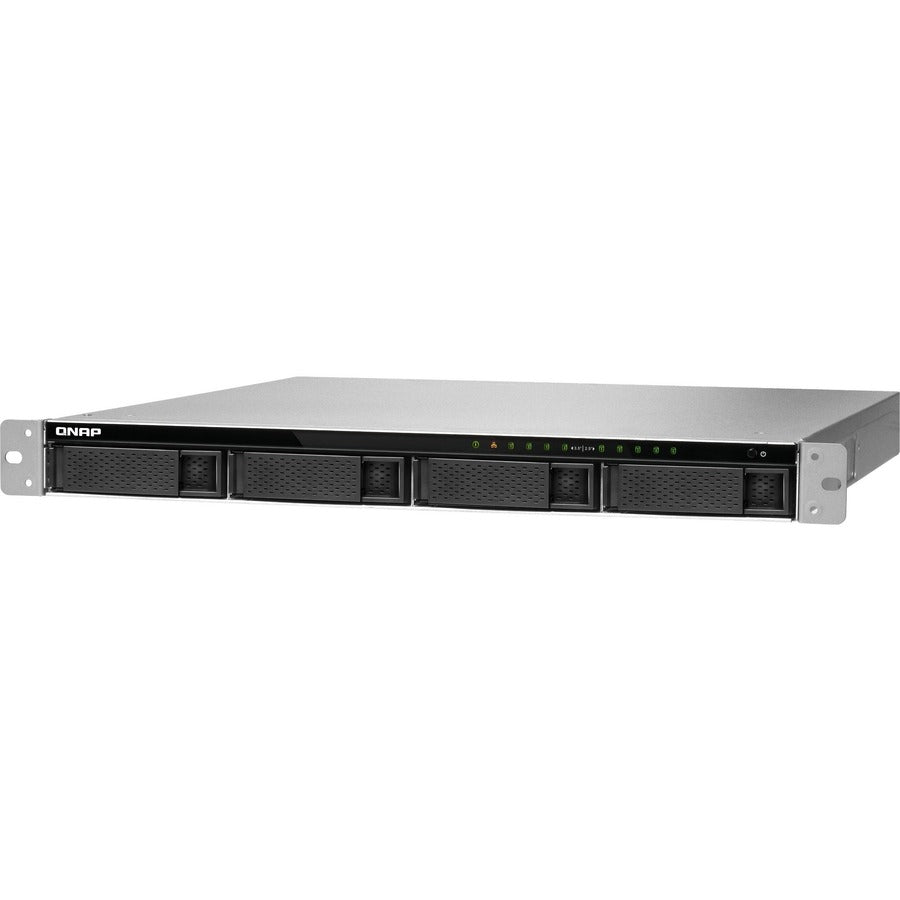

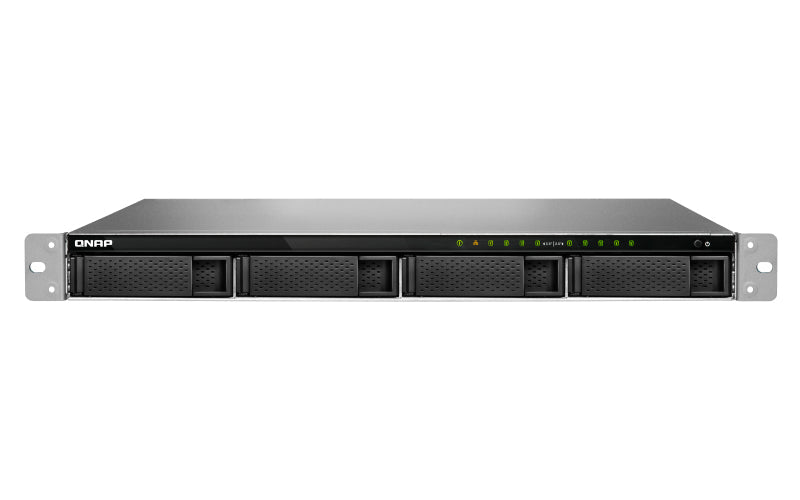

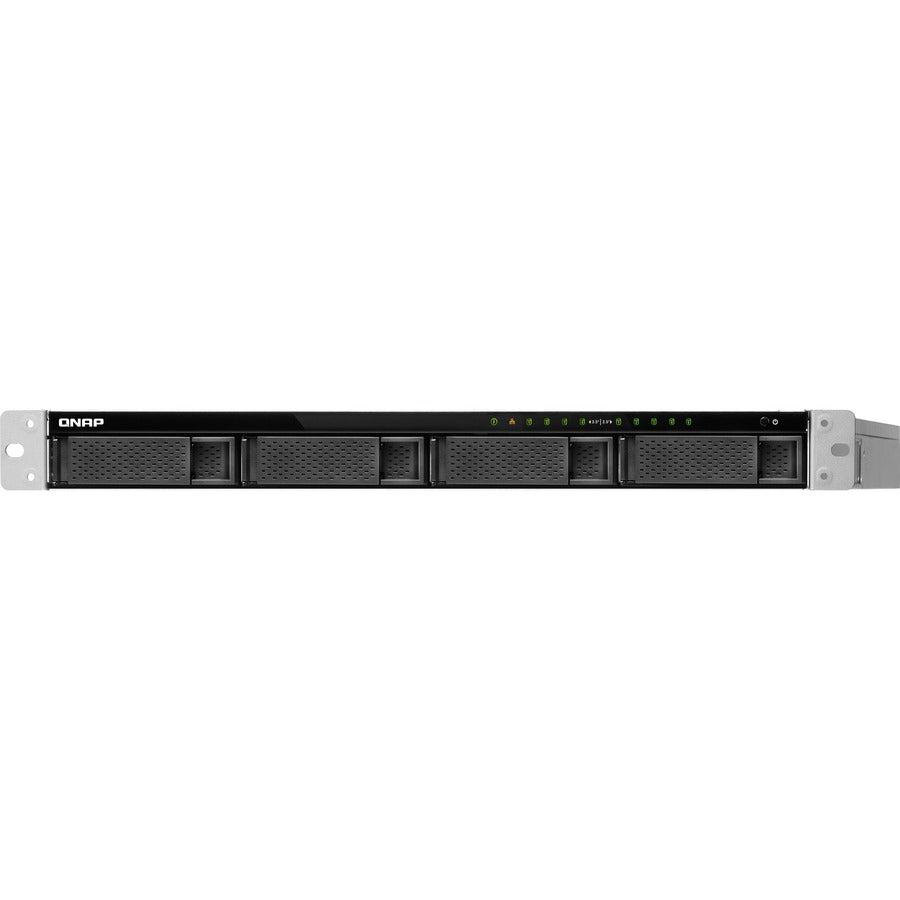

Qnap Ts-977Xu-Rp Nas Rack (1U) Ethernet Lan Aluminium, Black

Description :

AMD Ryzen 5 3600 (3.6/4.2GHz), 8GB DDR4 (2400MHz), 10GbE

QNAP TS-977XU-RP. Supported storage drive interfaces: Serial ATA, Storage drive size: 3.5", Storage drive sizes supported: 2.5,3.5". Processor family: AMD Ryzen, Processor frequency: 3.6 GHz, Processor boost frequency: 3.4 GHz. Internal memory: 8 GB, Internal memory type: DDR4, Memory clock speed: 2400 MHz. Ethernet LAN data rates: 10,1000,10000 Mbit/s, Ethernet LAN data rate supported (max): 10000 Mbit/s. Fiber optic connector: SFP+

Powered by AMD’s powerful Ryzen™ processor, the TS-977XU-RP delivers high system performance with up to 6 cores/12 threads and Turbo Core up to 3.9 GHz. The TS-977XU-RP features a hybrid structure with four 3.5-inch HDD and five 2.5-inch SSD drive bays, allowing for enabling SSD caching and Qtier™ auto-tiering technology to greatly boost IOPS to meet the performance requirements of demanding applications. The TS-977XU-RP features two SFP+ 10GbE ports and two Gigabit ports for high-speed connectivity, providing businesses and organizations with an ideal solution for quickly deploying a high-bandwidth, high-reliability storage environment. The TS-977XU-RP also features a redundant power supply to ensure maximum system uptime.

Top-class hardware engineering with high I/O expandability
The hardware design of the TS-977XU-RP provides exceptional system performance and expandability to fulfill diverse application requirements.

Absolute performance with AMD Ryzen™ and up to 64GB RAM
Powered by a high-performance AMD Ryzen™ 3 1200 processor or Ryzen™ 5 2600 processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM, the TS-977XU-RP delivers aggressive yet power-smart performance to meet your multitasking demands. For resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization, look no further than the TS-977XU-RP.

Hybrid structure for enabling SSD and tiered storage
The TS-977XU-RP features an HDD+ SSD hybrid structure (including five 2.5-inch and four 3.5-inch drive bays*), allowing you to leverage the benefits of both hard drives and SSD to provide high storage capacity and high performance. Qtier™ Technology empowers the TS-977XU-RP with automatic tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity hard drives. The new Qtier™ 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.

Dual-channel Memory to delivers power-smart performance
The TS-977XU-RP supports dual-channel DDR4 memory and features four Long-DIMM slots. When using paired memory modules, the TS-977XU-RP leverages the power of dual-channel architecture to boost performance. You can also customize the memory configuration (supports up to 64GB RAM) of the TS-977XU-RP, making it the most ideal and cost-efficient storage solution for environments like virtualization that contain dynamically-changing workloads.

Extend NAS functionality with PCIe cards
The TS-977XU-RP features a PCIe slot that allows for installing a 10GbE/40GbE network card, a QM2 M.2 SSD/10GbE PCIe card, or a wireless network card to provide greater application potential.

10GbE/ 40GbE adapters
Supports lightning-fast throughput for bandwidth-demanding tasks such as virtualization and fast backup/restoration for an ever-growing amount of data.

QM2 card with M.2 SSD/10GbE support
Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS to enjoy optimal performance.

Wireless network cards
Use with the WirelessAP Station app to transform the NAS into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices.

Install a graphics card for GPU-accelerated computing
Graphics cards are optimized for graphical calculations and transformations, but require significantly more power than other hardware. The TS-977XU-RP provides a 300 watt power supply and a PCIe slot that supports low-profile AMD Radeon™ or NVIDIA® GeForce® graphics cards that do not require additional power. Installing a graphics card can boost performance of applications such as video editing, 4K video transcoding, imaging processing in QTS and the performance of virtual machines via GPU passthrough.

Performance & reliability. Your wise choice.
The TS-977XU-RP supports advanced business features to provide maximized efficiency and performance while ensuring 24/7 services.

USB 3.1
USB 3.1 Gen 2 (10Gbps) provides speeds up to 10Gb/s (double the speed of USB 3.0) to greatly boost data transfer performance, allowing for transferring large files faster and more easily.

Central management
Designed for IT administrators, QRM+ provides a single-point solution to discover, map, monitor and manage all Windows®, Linux® and IPMI devices in your network, and facilitates device discovery with a graphical topology diagram.

Optimized performance for VMware Virtualization with iSER
With the built-in dual 10GbE ports that natively features Mellanox® ConnectX-4, the TS-977XU-RP supports the iSCSI Extensions for RDMA (iSER) protocol to boost data transfer performance of the TS-977XU-RP as VMware® ESXi storage and to reduce the CPU load of the ESXi server. iSER can provide a significant increase in performance, providing an essential tool to optimize demanding virtualization applications.

Block-based iSCSI LUN: Ideal choice for virtualization storage
The TS-977XU-RP supports block-based iSCSI LUN that provides a more reliable and isolated environment than file-based LUN. Supporting VMware®, Citrix®, Microsoft® Hyper-V® and Windows Server® 2016, the TS-977XU-RP provides a high-performance, reliable and affordable storage solution for virtualization environments, while also supporting VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced operational efficiency and management in virtualization applications.

All-in-one server to host virtual machines and containers
Virtualization Station and Container Station jointly introduce a hybrid approach to virtualization. No matter your virtualization needs, you can count on QNAP for complete virtualization support.

Virtualization Station
Virtualization Station allows you to run multiple Windows®, Linux®, UNIX® and Android™ virtual machines and access them via a web browser or VNC (Virtual Network Computing). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.

Container Station integrates LXC and Docker® lightweight virtualization technologies. You can download apps from the built-in Docker Hub Registry®. It supports container import/export and permission settings. It’s easy deployment, portable, and efficient.

Host multiple virtual QTS systems on a single NAS
Based on Virtualization Station, vQTS allows for creating isolated virtual QTS systems to provide benefits for resource segregation, multi-tenant environments, and flexible application deployment. vQTS can also help optimize power usage, costs, and physical space. You can host multiple independent QTS systems on the TS-977XU-RP, while each virtual QTS can be used by different departments and teams with their own privilege settings and application environments, realizing greater business flexibility in management and applications.

Upgrade your IT environment with QNAP's fast and affordable 10GbE Switch!
QNAP 10GbE/NBASE-T™ unmanaged switches allow you to instantly upgrade your network environment at a cost-effective price. With a 10GbE network you can enjoy blazing-fast transfer speeds, empower bandwidth-demanding tasks like virtualization, and enable simultaneous real-time access to large NAS-based files using multiple workstations (ideal for video editing and multimedia). QNAP also provides a 10GbE PCIe network expansion card for Windows®/Linux® PCs to take advantage of high-speed LAN environments.

Optimized collaboration with seamless file sharing and sync
The TS-977XU-RP centrally stores data and files, and supports SMB/CIFS, AFP and NFS protocols for file sharing across Windows®, Mac®, and Linux®/UNIX® networks. Coupled with Qsync (a utility that turns a QNAP NAS into a safe, high-capacity data center for file synchronization) any file uploaded to the TS-977XU-RP will be made available for all linked devices, such as computers, laptops or mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration. Files can be centrally managed using File Station, including files from mobile devices and optical disc drives. File Station also allows you to mount a remote NAS, and transfer files between your NAS and public cloud services for greater convenience.

Complete backup planning
The TS-977XU-RP provides a reliable, flexible backup & disaster recovery solution to assist organizations in routine backup jobs with cost-efficiency and high productivity.

Windows and Mac backup
Use the license-free QNAP NetBak Replicator utility to back up/restore Windows® files, alongside Time Machine® support for Mac® devices. It is easy, fast and convenient.

Hybrid Backup Sync
Consolidates backup, restoration and synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan.

Snapshots for Volume & LUN
Snapshot is essential for NAS data protection, and its block-level feature makes it a dependable method for protecting data in the face of the growing threat of ransomware. The TS-977XU-RP supports up to 256 snapshots per volume or LUN, and maximum 1,024 snapshots per NAS.

VM backup
With high performance, potentially huge storage capacities, integrated virtualization solutions, and support for snapshots that record the state of the system at any time, the TS-977XU-RP are perfect for backing up virtual machines.

QVR Pro surveillance solution
QNAP’s QVR Pro surveillance solution allows you to arrange a dedicated, independent storage space for surveillance data on TS-977XU-RP and leverage the advantages of scalability and storage manageability from QTS. With QVR Pro, camera management, storage space allocation, camera live viewing and playback is greatly simplified. You can also use the QVR Pro Client mobile app to monitor your cameras from anywhere, or use a USB webcam as an ONVIF network camera with the QUSBCam2 app.

Flexible and economical storage expansion
You need an easy solution to increase storage capacity when running out of space. QNAP provides several ways to expand your NAS storage as needed to accommodate data and business growth.

VJBOD
Use VJBOD (Virtual JBOD) to expand your storage capacity by using the unused storage of other QNAP NAS. Up to 8 QNAP NAS can be mounted as local disks on the TS-977XU-RP

Upgrade RAID Capacity
Hot swap lower-capacity drives with larger-capacity drives so that your QNAP NAS can grow with your business.

Migrate to a New NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.

Attach Expansion Enclosures
Connect up to 8 REXP-1620U-RP/REXP-1220U-RP* or up to 2 UX-1200U-RP/800U-RP expansion enclosures. Use the QTS Storage & Snapshots Manager to easily handle NAS capacity expansion.

More Productivity Applications

Q’center
Use the NAS as a central management platform to manage multiple QNAP NAS across multiple sites, monitor system logs, and manage NAS updates and maintenance.

QmailAgent
Centrally manage and switch between different email accounts, back up emails to the NAS, and safeguard email security and personal privacy.

Browser Station
Enable remote access through NAS browsers to access local LAN resources without going through complex VPN setting.

IFTTT Agent
A popular web automation service for combining QNAP NAS and mobile devices/apps to customize NAS applets.

DJ2 Live
DJ2 Live enables private live streaming through QNAP NAS with scalable live streaming to public cloud services, including Facebook, YouTube, and platforms that support RTMP endpoints.

Mobile Apps
Simplify file access, NAS management, multimedia entertainment, surveillance, and download tasks on mobile devices with QNAP mobile apps.
