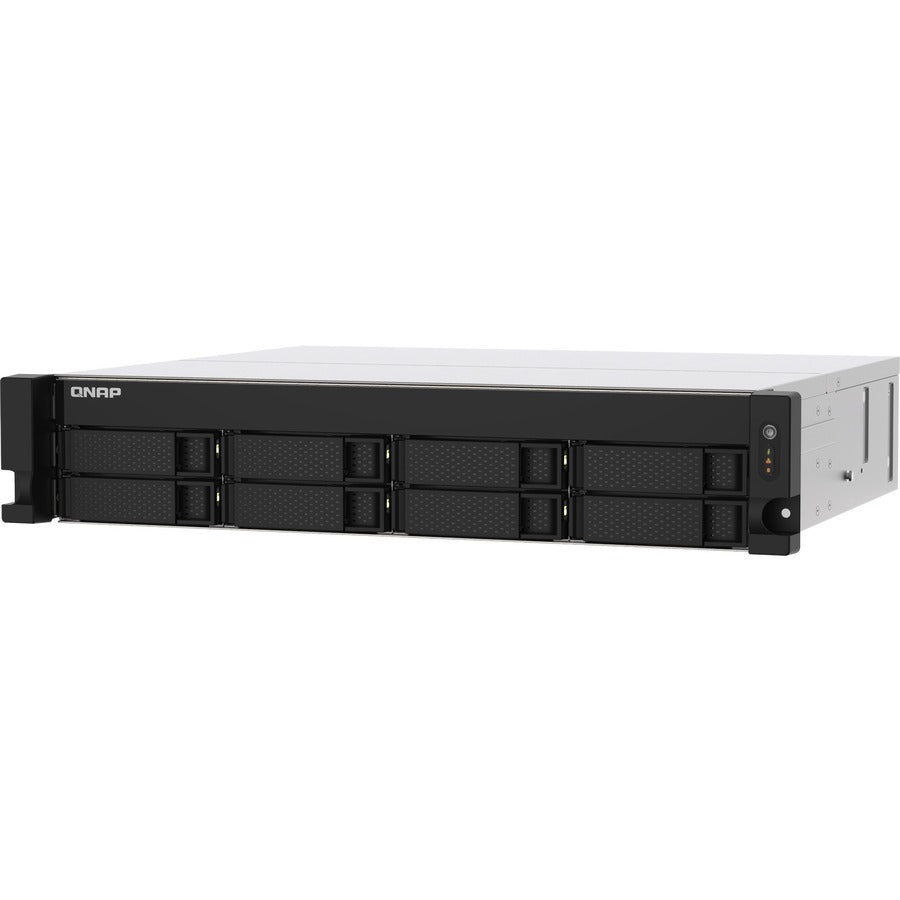

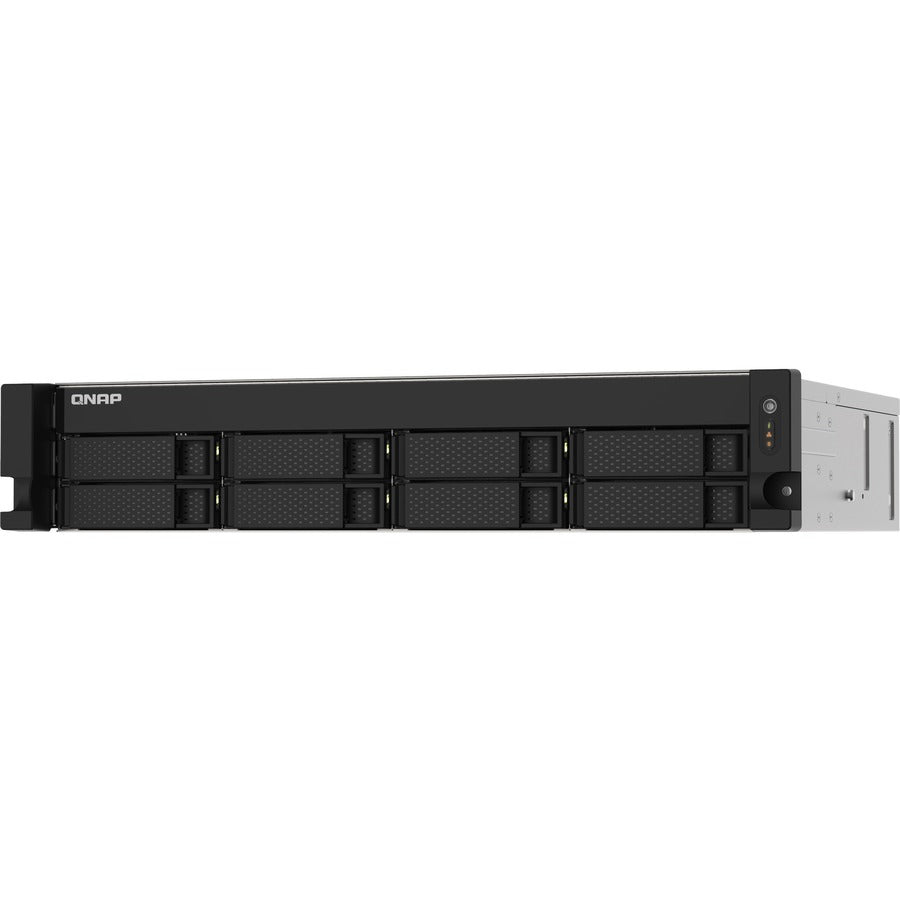

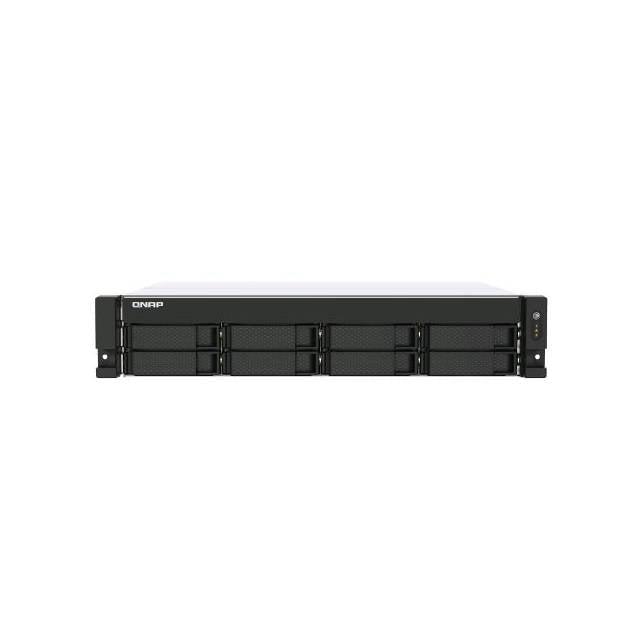

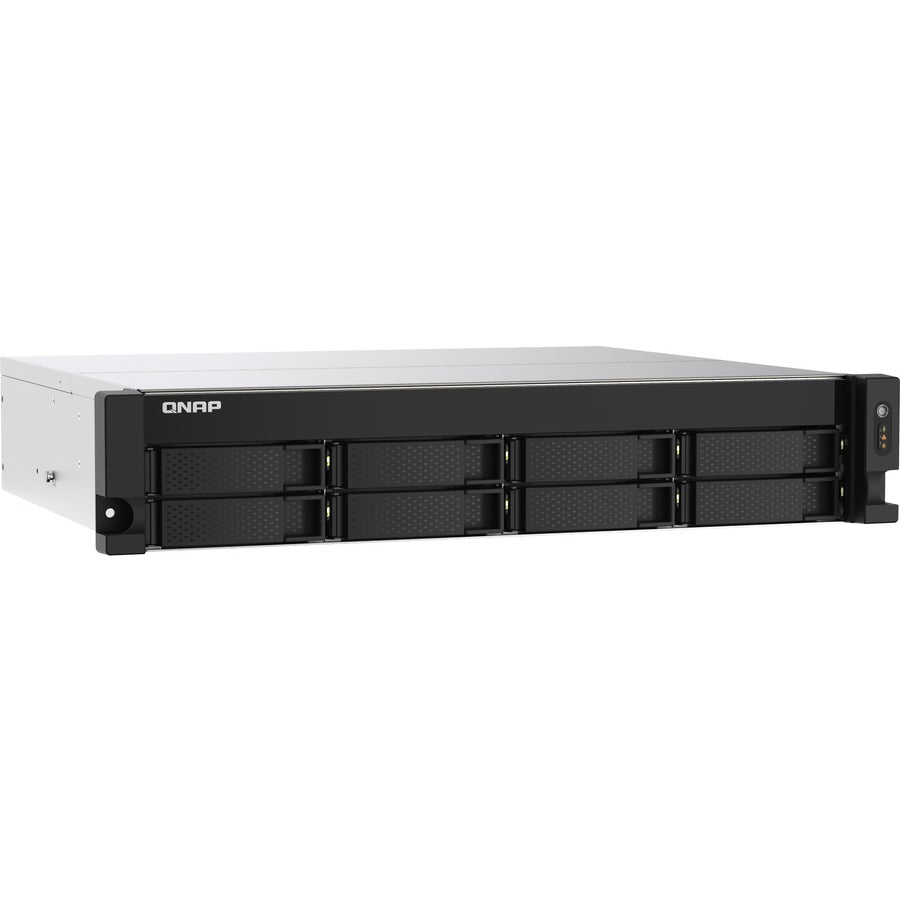

Name: Qnap Ts-873Au-Rp-4G-Us Amd Ryzen Embedded V1500B 2.2Ghz/ 4Gb Ddr4/ 8 Sata/ Usb3.2/ 2U Rackmount
Brand: QNAP
SKU: TS-873AU-RP-4G-US
Price: 2259.40 USD
Availability: InStock

Qnap Ts-873Au-Rp-4G-Us Amd Ryzen Embedded V1500B 2.2Ghz/ 4Gb Ddr4/ 8 Sata/ Usb3.2/ 2U Rackmount

Roll over image to zoom in Click on image to zoom

Mfr Part Number: TS-873AU-RP-4G-US
Hardware:
- CPU: AMD Ryzen Embedded V1500B quad-core 2.2 GHz processor
- CPU Architecture: 64-bit x86
- Floating Point Unit: Yes
- Encryption Engine: AES-NI
- Hardware-accelerated Transcoding: Optional via a PCIe graphics card
- System Memory: 4 GB UDIMM DDR4 (1 x 4 GB)
- Maximum Memory: 64 GB (2 x 32 GB)
- Memory Slots: 2 x Long-DIMM DDR4, Support ECC memory
- Flash Memory: 5GB (Dual boot OS protection)
- Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s. The system is shipped without HDD
- Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
- Hot-swappable: Yes
- M.2 SSD Slot: Optional via a QNAP QM2 PCIe card
- SSD Cache Acceleration Support: Yes
- LAN Port:
  - 2 x 2.5 Gigabit Ethernet Port (2.5G/1G/100M)(also support 10M)
  - 5 Gigabit Ethernet Port (5G/2.5G/1G/100M): Optional via a network adapter
  - 10 Gigabit Ethernet Port: Optional via a network adapter
- Wake on LAN (WOL): Yes, Only the 2.5GbE port
- Jumbo Frame: Yes
- PCIe Slot: 2 x PCIe Gen3 x4
- USB:
  - USB 3.2 Gen 1 port: 1 x Type-A
  - USB 3.2 Gen 2 (10Gbps) Port: 2 x Type-C, 1 x Type-A
- HDMI Output: Optional via a PCIe graphics card
- LED Indicators: HDD 1-8, Status, LAN, USB, Power
- Buttons: Power, Reset
- Operating temperature: 0 - 40 C (32F - 104F)
- Storage Temperature: -20 - 70C (-4F - 158F)
- Relative Humidity: 5-95% RH non-condensing, wet bulb: 27C (80.6F)
- Sound Level: 19~44.9 db(A)
- System Warning: Buzzer
- Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 2000
Operating System: QTS 4.4.2 (embedded Linux)
Supported File Systems:
- Internal hard drive (EXT4)
- External hard drive (EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT)
Network & Virtual Switch:
- TCP/IP: Dual stack (IPv4 and IPv6)
- Jumbo frame
- DHCP server and client
- RADVD
- USB Wi-Fi adapter
- Static Route
- NCSI (Network Connectivity Status Indicator)
- DDNS settings (Customize & Multiple Service)
- Port trunking (Link aggregation)

  - failover

  - Load balancing
- Virtual switch

  - Network Address Translation (NAT)

  - Spanning Tree Protocol (STP)

  - Software-Defined Switch mode
Security:
- Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP)
- Host access control for shared folders (CIFS/SMB)
- AES 256-bit folder-based and volume-based encryptions which are validated by FIPS 140-2 CAVP (Cryptographic Algorithm Validation Program)
- 256-bit external drive encryption (AES)
- Importing of SSL certificates from Lets Encrypt
- Instant alerts through email, SMS, push service, and audio
- 2-step verification
Storage Management:
- Supported RAID types: RAID 0, 1, 5, 6, 10, 50, 60, JBOD, Single
- RAID Hot Spare and Global Hot Spare
- RAID Rebuild Speed Customization
- Online RAID capacity expansion
- Online RAID level migration
- SSD RAID Over-provisioning
- SSD RAID Performance evaluation (with SSD Profiling Tool)
- SSD TRIM for RAID 0,1,10
- Bitmap support
- Disk auto S.M.A.R.T. data migration
- Disk bad block scan and S.M.A.R.T test.
- Disk bad block recovery
- Disk secure data erase
- Ironwolf Health Management
- Storage pools
- Online volume expansion
- Volume type conversion
- Volume shrink
- Storage space utilization
- Storage expansion using QNAP expansion units
- JBOD enclosure roaming
- SSD read-only and read-write cache
- SSD write-only cache
- Qtier Data Tiering Technology

  - Automatic or scheduled data tiering

  - IO-aware auto tiering

  - Shared folder tiering on demand
- Flexible volumes and LUNs with thin provisioning and space reclaiming

  - If the NAS has less than 4GB RAM, then the maximum volume capacity is 144TB.

  - If the NAS has at least 4GB RAM, then the maximum volume capacity is 250TB.
- Snapshots - The maximum number of snapshots varies depending on installed memory.

  - Volume and LUN snapshots

  - Snapshot Dashboard

  - Snapshot Manager

  - Snapshot local restore and revert

  - Snapshot Clone

  - Snapshot Replica and Snapshot Vault

  - Snapshot remote restore and revert

  - Unified Snapshot Directory

  - Support for Windows Previous Versions (CIFS/SMB)

  - Snapshot Agent for Microsoft Windows and VMware vSphere
Form Factor: 2U Rackmount
Power Supply Unit: 300W PSU(x2), 100 - 240V
Power Consumption-HDD Sleep Mode: 36.08 W
Power Consumption-Operating Mode, Typical: 61.25 W
Fan: 2 x 80mm, 12VDC
Dimensions (HxWxD): 3.5 18.98 16.73 inch
Weight (Net): 20.17 lbs

General Information

Manufacturer	QNAP Systems
Manufacturer Part Number	TS-873AU-RP-4G-US
Manufacturer Website Address	http://www.qnap.com
Brand Name	QNAP
Product Series	TS-x73AU
Product Model	TS-873AU-RP-4G
Product Name	TS-873AU-RP-4G SAN/NAS Storage System
Product Type	SAN/NAS Storage System
UPC	885022019939

Processor

Processor Manufacturer	AMD
Processor Type	Ryzen
Processor Model	V1500B
Processor Core	Quad-core (4 Core)
Processor Speed	2.20 GHz

Ethernet Technology	2.5 Gigabit Ethernet

Total Number of USB Ports	4
Number of USB 3.2 Gen 1 Ports	1
Network (RJ-45)	Yes

Operating System	QTS 4.4.2

Power Description

Maximum Power Supply Wattage	300 W

Height	3.5"
Width	19"
Depth	35.4 ft
Weight (Approximate)	20.17 lb

Miscellaneous

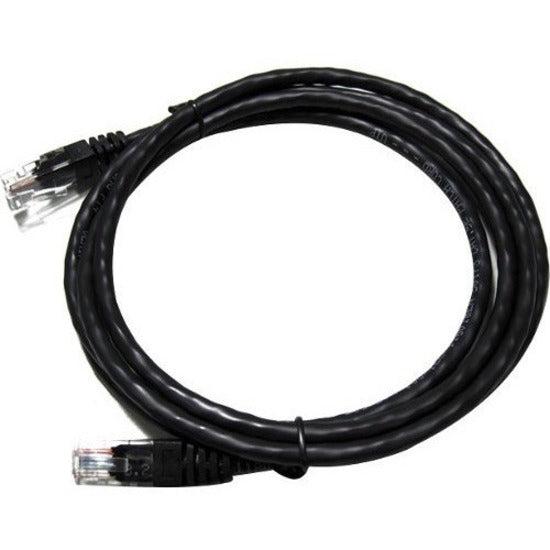

Package Contents	TS-873AU-RP-4G SAN/NAS Storage System 1 x Ethernet Cable 2 x Power Cords 32 x Flat Head Screws (for 3.5" HDD) 24 x Flat Head Screws (for 2.5" HDD) Quick Installation Guide (QIG)

Warranty

Limited Warranty	3 Year
