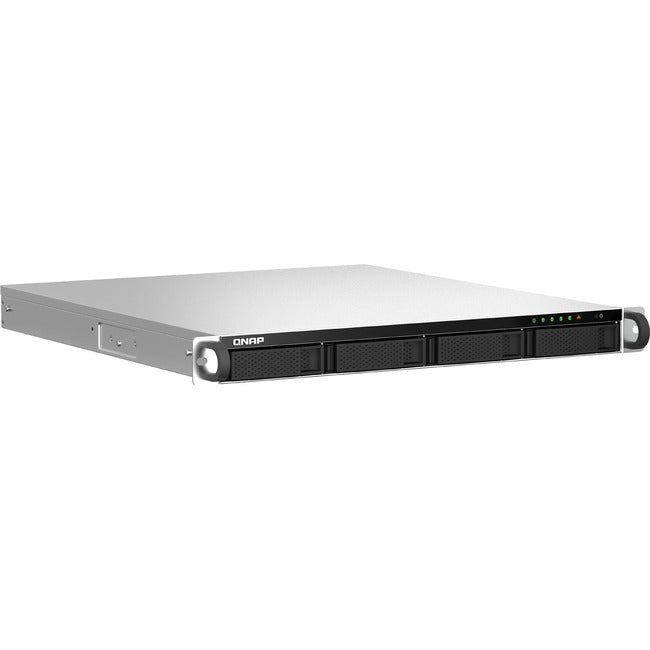

QNAP TS-464U-8G SAN/NAS Storage System TS-464U-8G-US

Description :

QNAP TS-464U-8G SAN/NAS Storage System

TS-464U

Intel® quad-core rackmount NAS with dual-port 2.5GbE and PCIe expandability for high-speed transmission and virtualization applications

Powered by an Intel® Celeron® N5105/N5095, quad-core processor (burst up to 2.9GHz), the TS-464U features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combine bandwidth. The built-in 4K HDMI output allows for multimedia and virtual machine display. With a PCIe Gen 3 slot, the TS-464U provides flexibility in extending NAS functionality, allowing you to install various cards: 10GbE/5GbE network card, QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition. The TS-464U also supports AES 256-bit encryption to ensure the confidentiality of sensitive business data without affecting system performance.

•
  2.5GbE connectivity

  Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.

•
  PCIe expandability

  Install a PCIe Gen3 x2 card to expand the core functionality of the TS-464U, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card.

•
  Snapshots

  Protect your files and data from accidental deletion and malware attacks with snapshots that fully record the system status and data.

•
  License-free virtualized environment

  Host multiple containerized apps to run a wide range of applications and services.

•
  Drives Auto-Tiering

  Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.

•
  Flexible expansion

  Scale your storage capacity to fit growing data needs by connecting QNAP's expansion units.

Quad-core high performance and up to 16GB RAM

The TS-464U is powered by an Intel Celeron N5105 / N5095 quad-core processor and supports up to 16 GB DDR4 memory, two 2.5GbE ports and SATA 6 Gb/s drives. The integrated Intel® AES-NI encryption engine also helps protect confidential data without impacting system performance.

Streamline large file transfers and video editing with 2.5GbE

The TS-464U comes with two 2.5GbE RJ45 (2.5G/1G/100M) LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gbps transmission speeds, improving the efficiency of bandwidth-hungry business applications such as large file transfers, fast backup/restore, and multimedia transfer & editing.

Future-proof your IT infrastructure for high-speed networks

The TS-464U is ideally matched with QNAP's managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provide 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows®/Linux® workstations, allowing you to easily build a high-speed network environment for productive team collaboration.

• SAN/NAS Storage System offers maximum storage productivity with added dependability


• Supports up to 4 drives; for flexible storage options


• Through RAID levels (0, 1, 5, 6, 10, jbod), RAID provides data reliability, fault tolerance and improves overall performance


• DDR4 SDRAM memory technology for fast, easy, and convenient access and retrieval of data and information


• Through RAID levels (0, 1, 5, 6, 10, jbod), RAID provides data reliability, fault tolerance and improves overall performance


• Rack-mountable san/nas storage system allows a clutter-free, convenient usage with increased efficiency


• 2.5 Gigabit Ethernet Ethernet technology for increasing efficiency with the quicker transfer and sharing of information


• QTS 5.0.1 OS makes you more productive and creative

Product Type: SAN/NAS Storage System
Additional Warranty Information: The TS-464U is backed by a 3-year warranty at no additional cost.
Rack Height: 1U
Brand Name: QNAP
Form Factor: Rack-mountable
Manufacturer: QNAP Systems
Product Model: TS-464U-8G
Product Name: TS-464U-8G SAN/NAS Storage System
Manufacturer Part Number: TS-464U-8G-US
Manufacturer Website Address: http://www.qnap.com
Package Contents:

• TS-464U-8G SAN/NAS Storage System
• 1 x Ethernet Cable
• 2 x Power Cords
• 48 x Flat Head Screws (for 3.5" HDD)
• 36 x Flat head screws (for 2.5" HDD)
• 2 x Hanger
• Quick Installation Guide (QIG)
