Qnap Ts-432Pxu-2G San/Nas Storage System

Description :

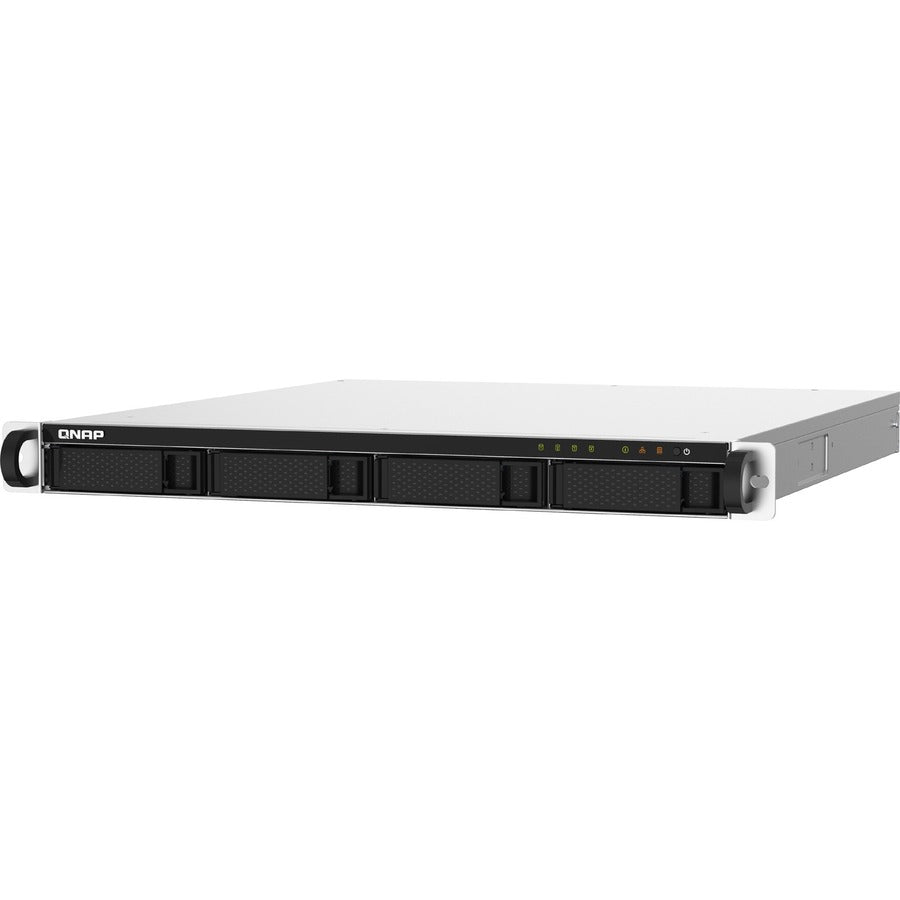

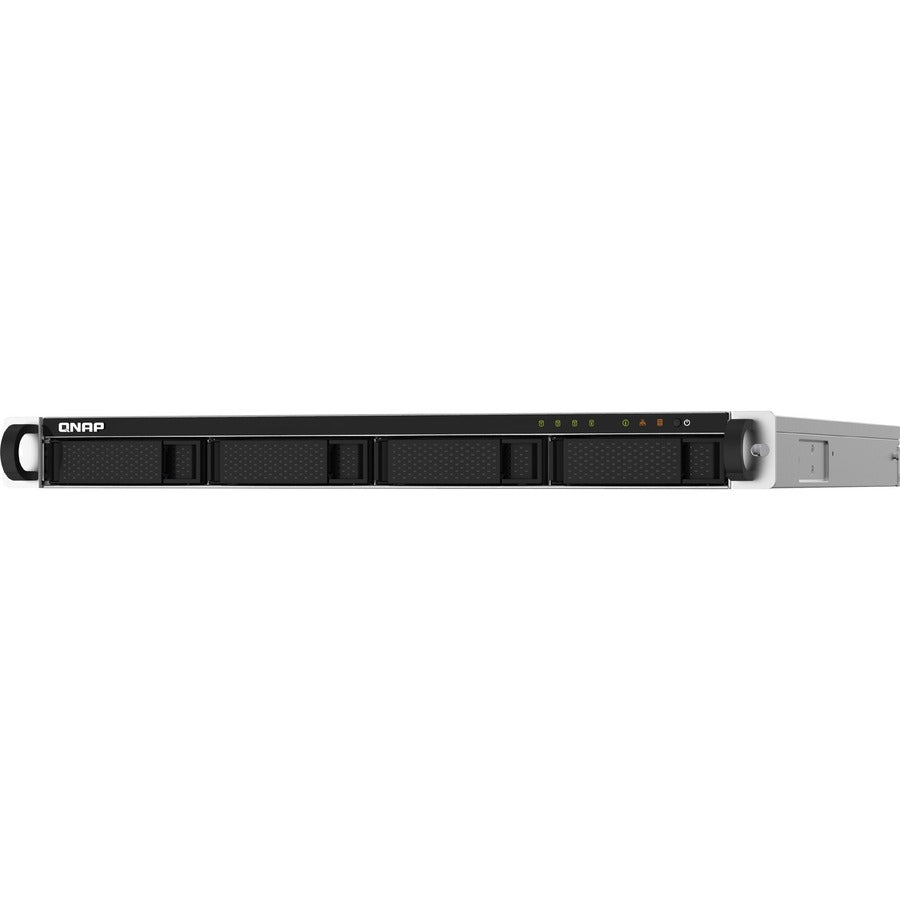

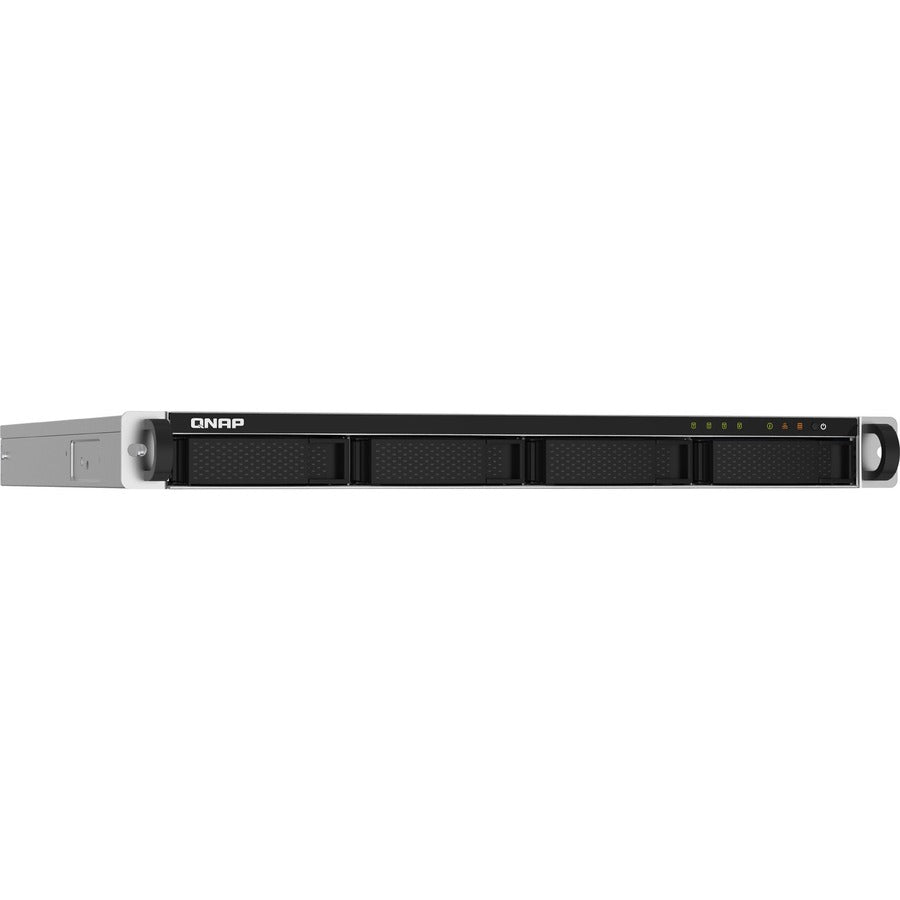

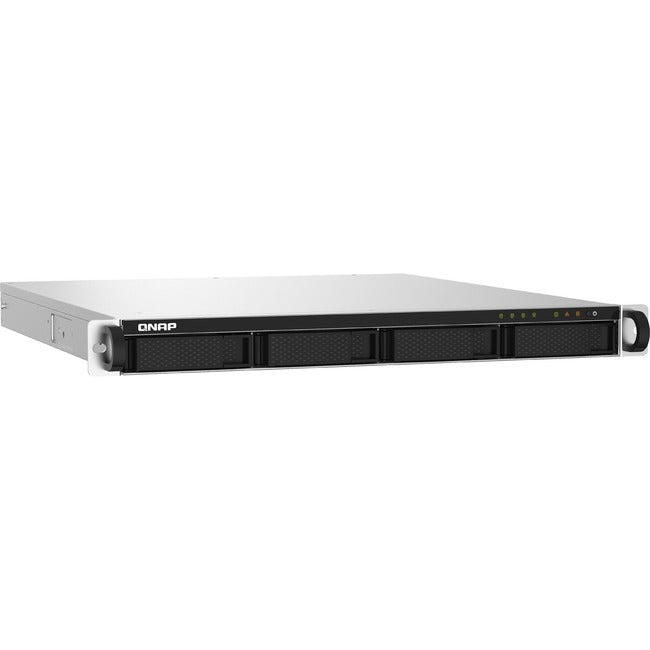

QNAP TS-432PXU-2G SAN/NAS Storage System

Quad-core 1.7GHz rackmount NAS with dual 10GbE SFP+ and dual 2.5GbE ports for SMB IT environments

With 10GbE SFP+ and 2.5GbE network ports, the TS-432PXU delivers high network bandwidth to streamline team collaboration and file access. A PCIe Gen 2 2 slot allows for installing a QNAP expansion card to add network connectivity, SSD caching capabilities, or wireless connectivity. The TS-432PXU supports file backup and synchronization, secure snapshot protection, and Google G Suite™ and Microsoft 365® enterprise account backup services, while providing instant recovery whenever needed. Coupled with the support for cloud gateways, building a hybrid cloud storage solution has never been easier.

• Two 10GbE SFP+ and two 2.5GbE RJ45 network ports accelerate file sharing.

• HBS (Hybrid Backup Sync) backs up and syncs data to other NAS, servers and cloud storage for comprehensive disaster recovery planning.

• Boxafe provides an extra layer of protection by backing up emails, cloud drives, contacts, and calendars of Google™ G Suite and Microsoft 365®.

• Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.

• Expand the application potential of the TS-432PXU by installing a compatible PCIe card.

• Increase the storage capacity of the TS-432PXU with QNAP TR RAID expansion enclosures or TL JBOD.

Higher performance x faster throughput

The TS-432PXU is powered by an Annapurna Labs Alpine AL-324 ARM® Cortex®-A57 quad-core 1.7 GHz processor with 2GB DDR4 RAM (expandable to 16GB) and SATA 6Gb/s drives to deliver higher performance. With two 10GbE SFP+ and two 2.5GbE network ports, the TS-432PXU provides incredible bandwidth to fulfil high-speed file access, backup/restoration and media transfer, while also allowing the flexible allocation of network resources for individual applications and services.

Upgrade your network to increase team efficiency

QNAP provides various high-speed network solutions at attainable price points. The QSW network switches provide managed and unmanaged 10GbE and 2.5GbE options for building high-speed networks. QNAP also offers 10GbE / 5GbE / 2.5GbE network expansion cards and a USB to 5GbE adapter for Windows® / Linux® devices, allowing all of your workstations to take advantage of high-speed networks.

Boost NAS performance with SSDs

As SSDs become more affordable, using SSDs on NAS can improve performance without requiring a heavy investment. The TS-432PXU supports SSD cache technology, Qtier™ auto-tiering storage, and SSD over-provisioning, helping you to balance storage performance, storage allocation, and IT expenses.

Boost NAS performance by enabling SSD caching. Coupled with Qtier™ auto-tiering technology, you can find the perfect storage configuration between high-performance SSD and high-capacity HDD while balancing performance and cost.
Learn more?SSD caching, Qtier auto-tiering

SSD Extra Over-provisioning allows for adding 1~60% reserved space to avoid performance degradation, helping to increase system stability and extend SSD lifespan.

• SAN/NAS Storage System offers maximum storage productivity with added dependability


• Holds up to 4 HDDs


• Through RAID levels (0, 1, 5, 6, 10, hot spare, jbod), RAID provides data reliability, fault tolerance and improves overall performance


• DDR4 SDRAM memory technology for dependable data storage with maximum usability


• With the powerful multi-core Alpine processor line of products, our customers will like a superior NAS product with cutting-edge solutions


• RAID technology - data reliability, fault tolerance and improved overall performance


• Rack-mountable san/nas storage system allows a clutter-free, convenient usage with increased efficiency


• Optimize business network's performance with 10 Gigabit Ethernet connectivity

Product Type: SAN/NAS Storage System
Country Of Origin: Taiwan
Product Series: TS-x32PXU
Rack Height: 1U
Brand Name: QNAP
Form Factor: Rack-mountable
Manufacturer: QNAP Systems
Product Model: TS-432PXU-2G
Product Name: TS-432PXU-2G SAN/NAS Storage System
Manufacturer Part Number: TS-432PXU-2G-US
Manufacturer Website Address: http://www.qnap.com
Package Contents:

• TS-432PXU-2G SAN/NAS Storage System
• 1 x Ethernet Cable
• 1 x Power Cord
• 16 x Flat Head Screws (for 3.5" HDD)
• 12 x Flat head Screws (for 2.5" HDD)
• Quick Installation Guide (QIG)
