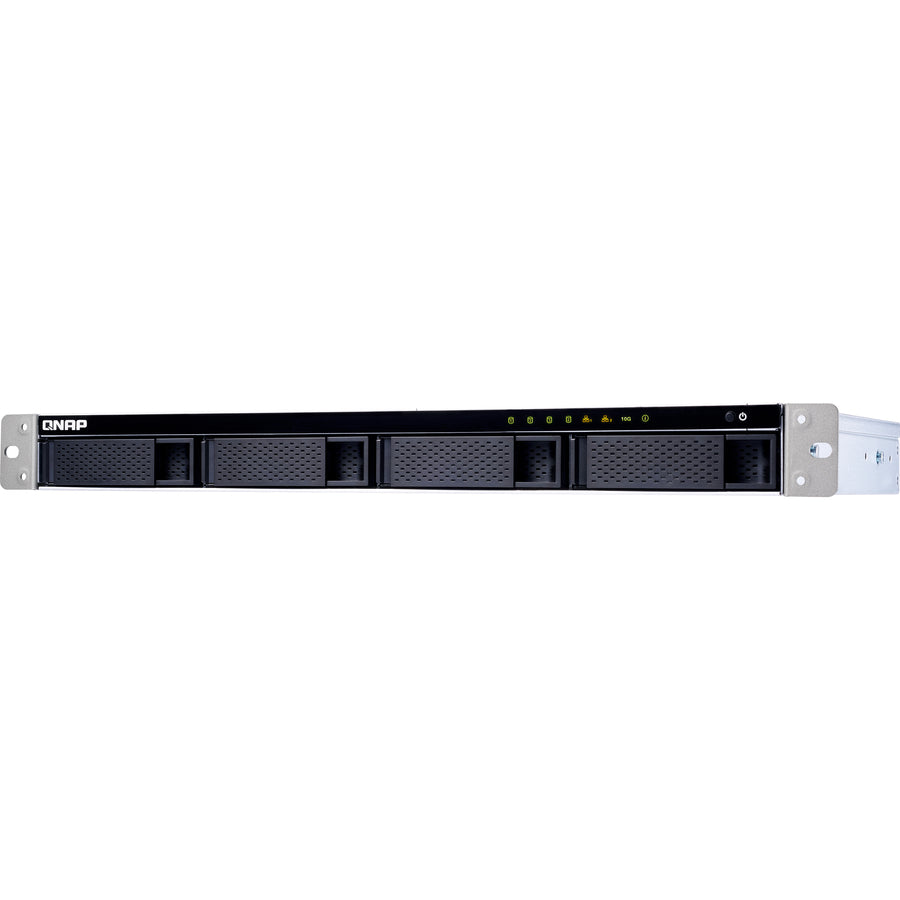

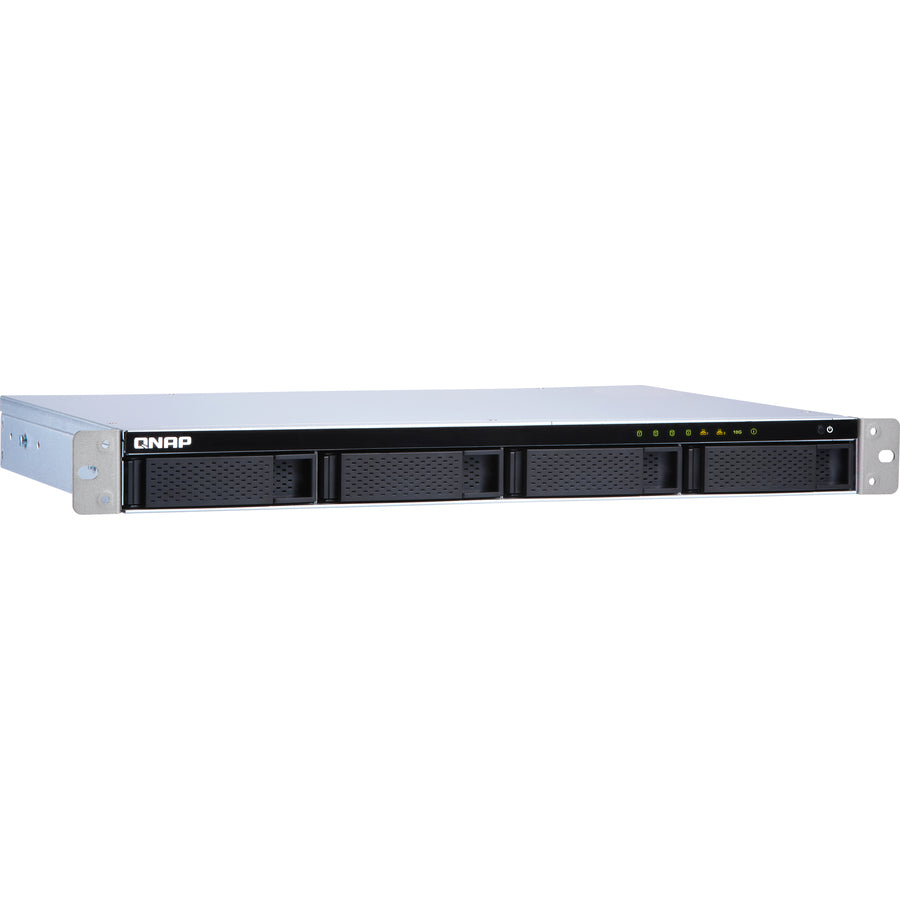

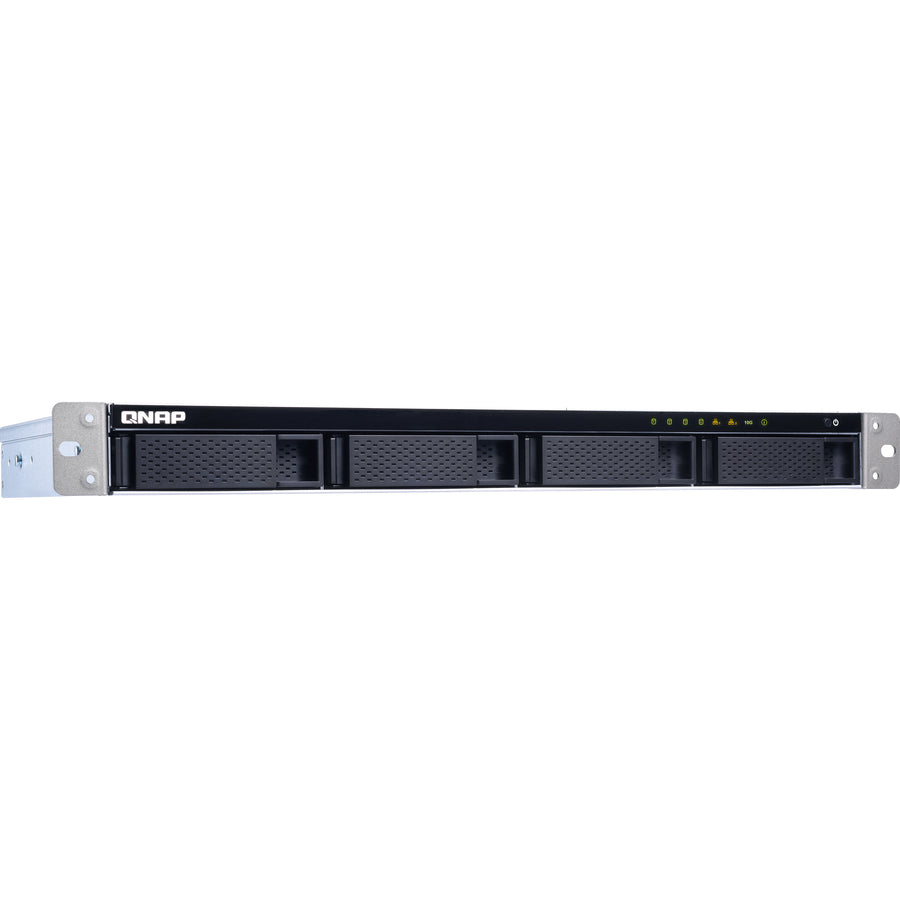

QNAP Short Depth Rackmount NAS with Quad-core CPU and 10GbE SFP+ Port TS-431XEU-2G-US

Description :

• Mfr Part Number: TS-431XEU-2G-US

• Hardware:
  • CPU: Alpine AL-314 Processor (1.7GHz, Quad-core)
  • Hardware Encryption Accleration

  • System Memory: 1x 2GB SODIMM DDR3-1600

  • Flash Memory: 512MB

  • Hard Drive: 4x 3.5"/2.5" SATA 6Gb/s HDDs/ SSDs

  • LAN Port: 1x 10 Gigabit SFP+ LAN Ports, 2x Gigabit RJ45 LAN Ports

  • USB: 4x USB 3.0 Ports

  • LED: HDD1, HDD2, HDD3, HDD4, LAN1, LAN2, 10GbE, STATUS

  • Button: Power, Reset

  • System Warning: Buzzer

  • Noise Level: Sound Level - 20.3 dB(A)

  • Operating System: QTS 4.3 (embedded Linux)

• Networking:
  • TCP/IP (IPv4 & IPv6: Dual Stack)

  • Jumbo frame (failover, multi-IP settings, port trunking, and NIC teaming)

  • Service binding based on network interfaces
  • Squid web caching proxy

  • Proxy client

  • DHCP server and client
  • Protocols: CIFS/SMB, AFP v3.3, NFS v3, FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
  • UPnP & Bonjour Discovery
  • USB Wi-Fi Adapter Support
• Security:
  • Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
  • CIFS host access control for shared folders
  • FIPS 140-2 validated AES 256-bit volume-based and shared folder data encryption

  • AES 256-bit external drive encryption
  • Importing of SSL certificates from Lets Encrypt
  • Instant alerts through email, SMS, push service
  • 2-step verification
• Storage Management:
  • Storage space utilization monitoring
  • Flexible volumes and LUNs with thin provisioning and space reclaiming
  • Disk volume types
  • RAID 0,1, 5, 6, 10, JBOD, single
  • RAID hot spare and global hot spare
  • Storage pools

  • Supports snapshots
    • Supports Volume/LUN snapshot
    • Snapshot manager
    • Snapshot clone
    • Snapshot vault
    • Snapshot replica
    • Snapshot agent for Microsoft Windows and VMware vSphere
  • Online volume expansion
  • Online storage pool expansion
  • Online RAID capacity expansion and online RAID level migration
  • SMART data migration
  • Storage expansion through QNAP expansion units (UX-500P and UX-800P)
  • JBOD enclosure roaming
  • SSD read-only or read-write cache
  • Bad block scan and hard drive S.M.A.R.T.
  • Bad block recovery and RAID recovery
  • Bitmap support

• File System:
  • Internal HDD: EXT4

  • External HDD: EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT
• Form Factor: 1U
• Fan: 3x 4cm System Fan (12V DC)
• Power Supply: 100W, 100-240V AC, 50-60Hz, open frame

• Power Consumption:
  • HDD Standby: 12.42W

  • In Operation: 30.99W (with 4x 2TB HDD installed)
• Dimensions (WxDxH): 439.0 x 291.0 x 44.0 mm
• Weight: 4.15 kg

QNAP Short Depth Rackmount NAS with Quad-core CPU and 10GbE SFP+ Port

The high-performance quad-core short depth TS-431XeU includes a 10GbE SFP+ port to fully support 10GbE high-speed networks at a budget price with maximized ROI. The short depth design is perfectly suitable for installing the TS-431XeU in a compact rack, or places with a lot of cabling. The TS-431XeU provides versatile all-in-one functionality and unique features including VJBOD (Virtual JBOD) - an economical way to utilize unused NAS storage space for expanding the storage capacity of other QNAP NAS - and Container Station - that allows users to rapidly develop and deploy Internet of Things (IoT) apps. The TS-431XeU is a cost-effective storage solution designed for growing businesses looking for backup, restoration, private cloud, storage for virtualization, and to future-proof their IT infrastructure for 10GbE networks.

• The short depth design is suitable for installing in smaller racks or space-constrained locations
• 10GbE readiness, SSD caching, and encryption acceleration engine
• VJBOD allows using the TS-431XeU to expand the storage capacity of other QNAP NAS
• Containerized virtualization and IoT app development with Container Station
• Build a private cloud to centrally organize & manage files and backup tasks
• Secure access with VPN Server & VPN Client
• Qsirch, the full text search engine, helps quickly locate files on the NAS
• Expand the total storage capacity up to 24 drives by connecting up to 2 QNAP expansion enclosure (UX-1200U-RP or UX-800U-RP)

Smaller Footprint for Bigger Opportunities

Compared to a traditional 4-bay rackmount NAS, the TS-431XeU has a depth of only 11.46 inches (291 mm). This makes the TS-431XeU an excellent choice for smaller racks, and the unused space can be reserved for cabling or ventilation. The TS-431XeU is space-saving for flexible deployment and is especially suitable for multiple locations and applications including offices, audiovisual rooms and security surveillance recording.

Quad-core CPU and built-in one 10GbE SFP+ port

The TS-431XeU is equipped with an Annapurna Labs, an Amazon company, Alpine AL314 quad-core 1.7 GHz ARM® Cortex-A15 processor with SATA 6Gb/s and up to 8GB DDR3 RAM. Its encryption acceleration engine provides unmatched encryption performance in its class with AES 256-bit full NAS volume encryption, boosting system performance & security while ensuring the safety of sensitive business data stored in the TS-431XeU. Besides two Gigabit Ethernet ports, the TS-431XeU also includes a 10GbE SFP+ port to fully support 10GbE high-speed networks for businesses that demand higher bandwidth for virtualization and fast backup & restoration of an ever-growing amount of data.

SSD cache acceleration

The TS-431XeU supports SSD caching to greatly boost the IOPS performance of storage volumes to increase operational efficiency. It is perfect for improving the overall workflow of IOPS-demanding applications and allows the best of both cost and performance by combining SSDs with HDDs.

Reduce the impact of ransomware or system failure with Snapshots

The TS-431XeU supports snapshots, which can record the system status and data at any single moment*. If the system unexpectedly fails or is infected with ransomware, you can instantly restore files from a snapshot. The intuitive snapshot tool in the QTS Storage Manager can be used to take snapshots of your data, and restore data from snapshots if necessary. Always take regular snapshots to ensure the safety of your files and data.

• Featuring the Annapurna Labs Alpine Multi-core processor, based totally on ARMv7 architecture and the Cortex-A15 core

• Optimize business network's performance with 10 Gigabit Ethernet connectivity

• Through RAID levels (0, 1, 5, 6, 10, hot spare, jbod), RAID provides data reliability, fault tolerance and improves overall performance

Product Type: SAN/NAS Storage System
Country Of Origin: Taiwan
Rack Height: 1U
Brand Name: QNAP
Form Factor: Rack-mountable
Manufacturer: QNAP Systems
Product Model: TS-431XeU
Product Name: Short Depth Rackmount NAS with Quad-core CPU and 10GbE SFP+ Port
Product Line: Turbo NAS
Manufacturer Part Number: TS-431XEU-2G-US
Manufacturer Website Address: http://www.qnap.com
Package Contents:

• Short Depth Rackmount NAS with Quad-core CPU and 10GbE SFP+ Port
• Ethernet Cable
• Power Cord
• Flat Head Screw (for 3.5" HDD)
• Flat Head Screw (for 2.5" HDD)
• Quick Installation Guide (QIG)

Limited Warranty: 2 Year
