Description :

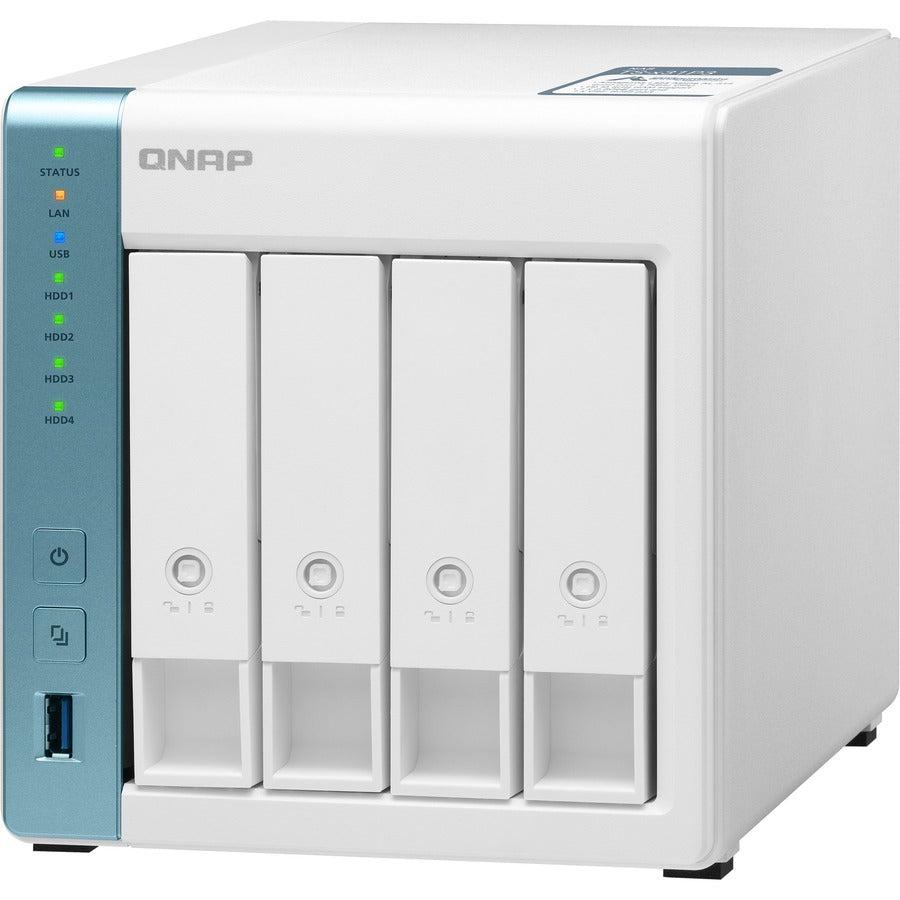

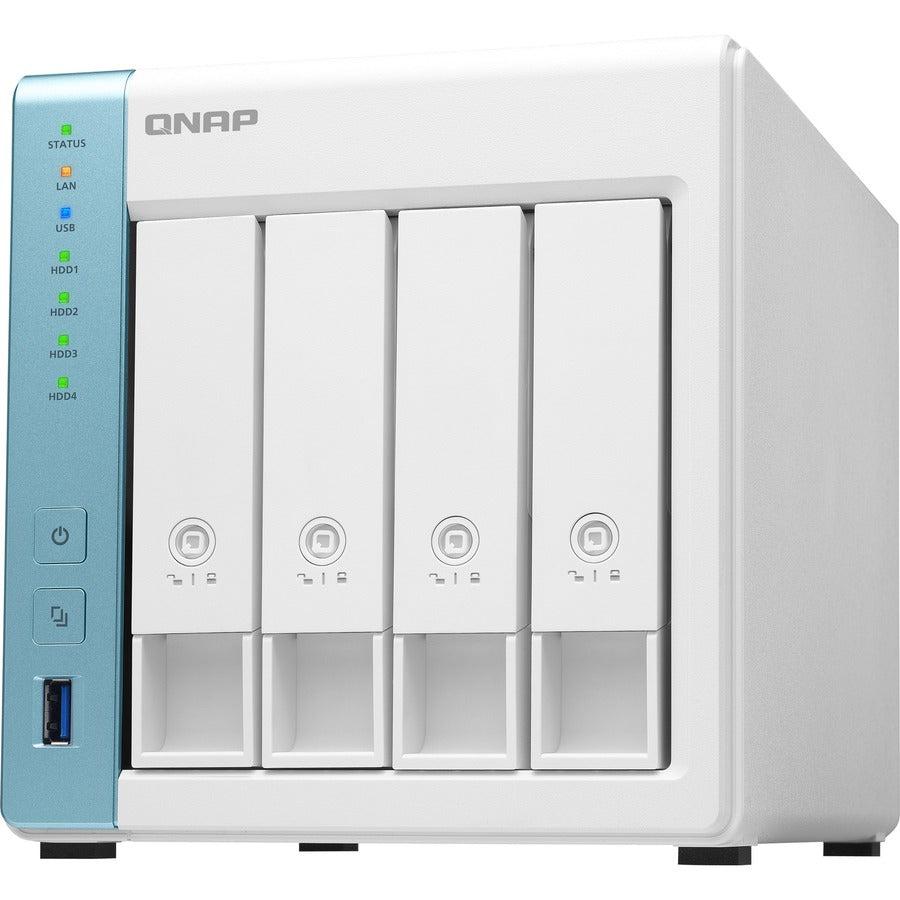

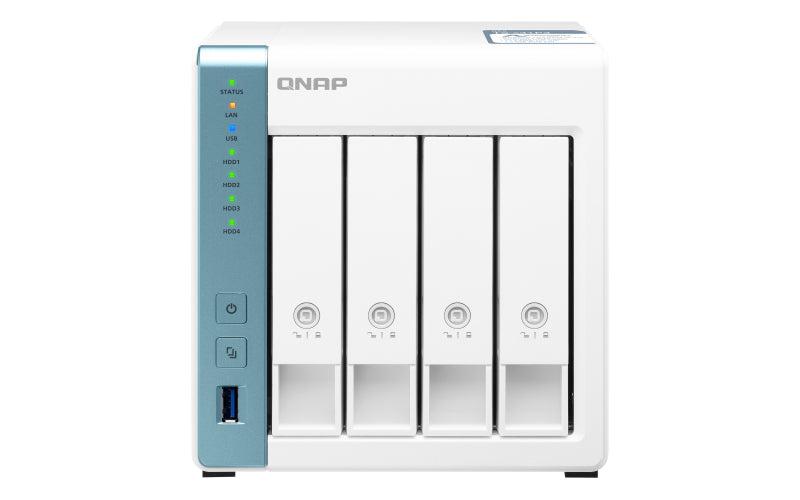

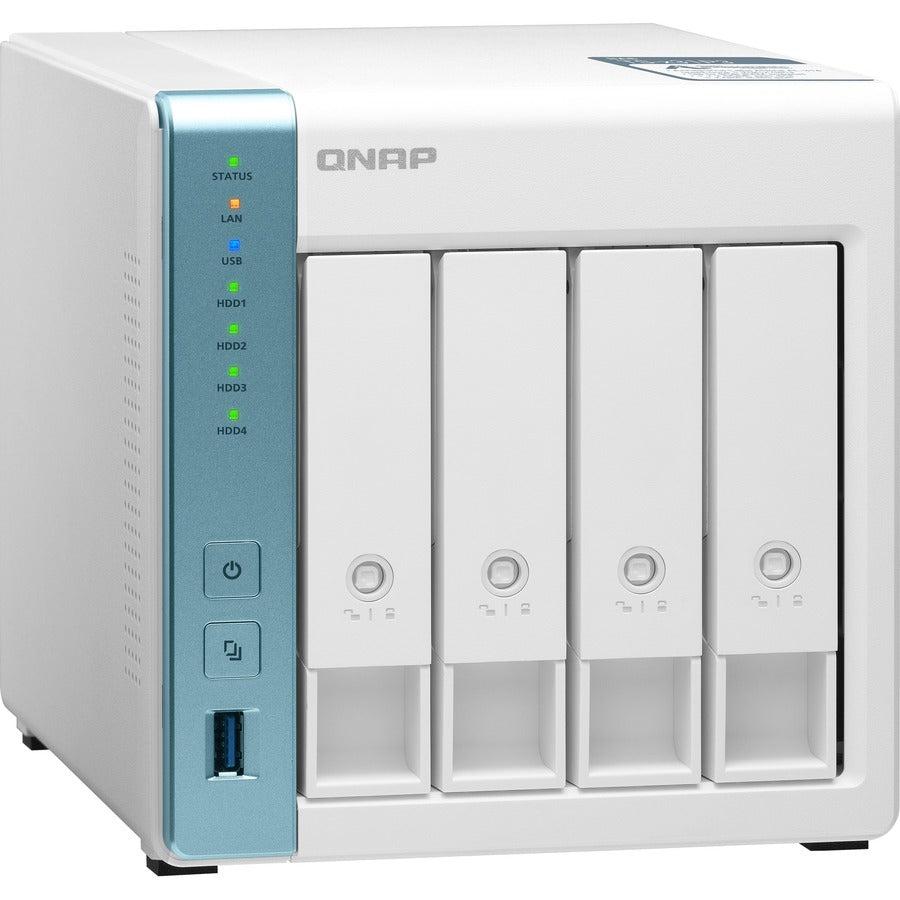

AnnapurnaLabs Alpine AL314 (1.7GHz), 4GB DDR3, Gigabit LANQNAP TS-431P3. Supported storage drive interfaces: Serial ATA II, Serial ATA III, Storage drive sizes supported: 2.5,3.5", RAID levels: 0,1,5,6,10,JBOD. Processor family: Annapurna Labs, Processor manufacturer: Annapurna Labs, Processor model: Alpine AL-314. Internal memory: 4 GB, Internal memory type: DDR3, Maximum RAM supported: 8 GB. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Chassis type: Tower, Cooling type: Active, Product colour: Turquoise, White
Powered by Annapurna Labs Alpine AL-314, quad-core 1.7 GHz processor, 2GB DDR3L RAM, one 1GbE LAN port and one 2.5GbE LAN port, the TS-431P3 features a 2.5GbE RJ45 port, providing up to 2.5 times the speed of regular Gigabit Ethernet and enabling smoother multimedia playback and everyday usage. The TS-431P3 ensures data security by supporting AES 256-bit encryption and various local/remote/cloud backup options – including snapshot protection that allows for files and data to be reverted to previously-recorded states if they are accidentally deleted, modified or affected by malware.
Build a faster home network with QNAP
The TS-431P3 includes a 1GbE port and a 2.5GbE port to provide a smoother NAS experience and multimedia playback. Additional network connection options from QNAP include USB 3.2 Gen 1 to 5GbE adapters (supports N-BASET/Multi-Gig), QXG 5GbE PCIe cards, and QNAP QSW 10GbE switches. All these options allow users to revolutionize their home network at a cost-effective price. The TS-431P3 features three USB 3.2 Gen 1 port that delivers outstanding multitasking performance.
Easy and Secure File Management
File Station allows direct management of files stored on the TS-431P3 and in the cloud. Users can easily upload files from their PC, drag/drop files between folders, rename/delete files, and configure file/folder permissions to prevent unauthorized access. Users can also use Microsoft Office Online to directly view/edit Microsoft Office documents stored on the TS-431P3. Confidential/sensitive data can also be encrypted to add extra security.
Multi-Point File Backup, Access, and Sync
The TS-431P3 supports file sharing protocols (including SMB/CIFS, AFP and NFS) for Windows®, Mac®, and Linux®/UNIX® devices. Coupled with Qsync (a utility that transforms a QNAP NAS into a secure, high-capacity data center for file synchronization) any file uploaded to the TS-431P3 becomes available for all linked devices (such as computers, laptops, and mobile devices). Hybrid Backup Sync helps backup/synchronize data on the TS-431P3 to another QNAP NAS, remote server, or cloud storage for disaster recovery. Additionally, QuDedup technology greatly improves the efficiency of multi-version backup to destination storage, while optimizing storage utilization. You can install the QuDedup Extract Tool on your computer and restore deduplicated files to their normal status.
Protect Important Data with Snapshots
Snapshots help protect data by fully recording the NAS system state and metadata. With snapshots, users can quickly restore files to previously-recorded states if files are accidentally deleted or modified, or if the system is compromised by malware. QNAP snapshots are block-based and only record modified data. Not only does this save storage space, but also reduces the time required to back up and restore data.
Take full control of NAS system status and data security
Notification Center consolidates all QTS system events and alerts, providing a single-app solution for notifications. Security Counselor recommends actions and settings to improve the TS-431P3 security.
Comprehensive surveillance solution for 24/7 security
Surveillance Station features a user-friendly interface and supports over 3,000 IP cameras. With an expandable IP camera channel licensing system, users can build a comprehensive surveillance system for real-time monitoring, video and audio recording and playback. Budget-conscious users can also save money on cameras by using USB webcams to record footage. Surveillance feeds can be monitored at any time by using the Vmobile app on mobile devices.
Extend NAS functionality with Containers and Apps
Container Station integrates LXC and Docker® lightweight virtualization technologies, allowing users to host and operate containerized applications directly on the TS-431P3. With many popular and fully-configured applications available from the built-in Docker Hub® (including for automation and multimedia), the TS-431P3 provides users with a vast array of potential functions and application capabilities.
The TS-431P3 also features apps for backup/sync, content management, communications, downloading, and entertainment. Every app can be installed from the QTS App Center with a single click.
Multiply Your Productivity
The app-driven QTS operating system provides solutions for simplifying file backup, management, search, and more.
QmailAgent
Centrally manage and switch between different email accounts, back up emails to the TS-431P3, and safeguard email security and personal privacy.
Notes Station 3
Notes Station 3 provides the advantages of collaborative note-taking with improved productivity to provide higher efficiency for your workgroup.
Smart Filing
Qfiling automates file organization. Files are automatically archived into folders based on your settings.
Full-Text Search
Qsirch quickly finds images, music, videos, documents, emails, and other files.
Flexible and economical storage expansion
QNAP provides easy storage capacity expansion solutions. Here are several ways to expand the TS-431P3 storage to accommodate data growth:
Upgrade RAID Capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand the TS-431P3.
Attach Expansion Enclosure
Connect two RAID expansion enclosures (TR-004 or TR-002) or two USB 3.2 Gen 2 JBOD (TL-D800C) and use the QTS Storage & Snapshots Manager to handle NAS capacity expansion.
Migrate to a New NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
Specifications :
General Information
Manufacturer | QNAP Systems |
---|---|
Manufacturer Part Number | TS-431P3-2G-US |
Manufacturer Website Address | http://www.qnap.com |
Brand Name | QNAP |
Product Series | TS-x31P3 |
Product Model | TS-431P3-2G |
Product Name | Quad-core 1.7GHz NAS with 2.5GbE and Feature-rich Applications for Home & Office |
Product Type | SAN/NAS Storage System |
UPC | 885022018901 |
Processor Manufacturer | Annapurna Labs |
---|---|
Processor Type | Alpine |
Processor Model | AL-314 |
Processor Core | Quad-core (4 Core) |
Processor Speed | 1.70 GHz |
Ethernet Technology | 2.5 Gigabit Ethernet |
---|
Total Number of USB Ports | 3 |
---|---|
Number of USB 3.2 Gen 1 Ports | 3 |
Network (RJ-45) | Yes |
Operating System | QTS 4.4.2 |
---|
Maximum Power Supply Wattage | 90 W |
---|
Height | 6.7" |
---|---|
Width | 6.3" |
Depth | 8.6" |
Weight (Approximate) | 4.43 lb |
Package Contents |
|
---|
Limited Warranty | 2 Year |
---|
