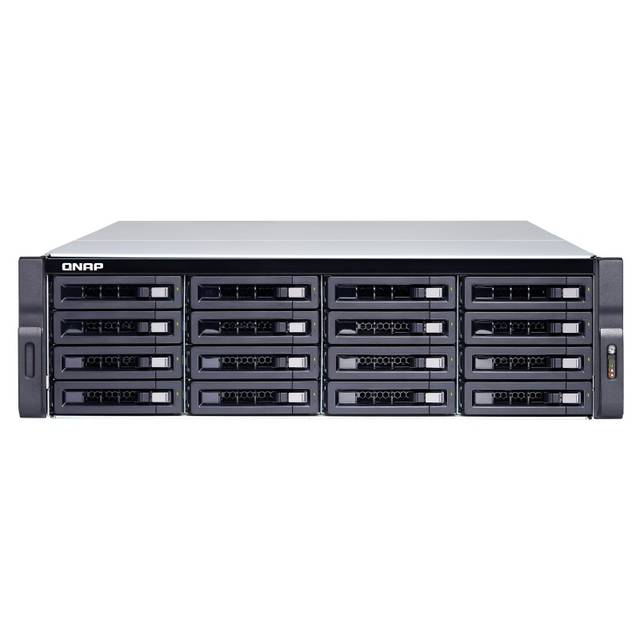

Mfr Part Number: TS-1683XU-RP-E2124-16G-US
-
Hardware:
-
CPU: Intel Xeon E-2124 Processor (3.3GHz, Burst Up to 4.3GHz, quad-core)
-
CPU Architecture: 64-bit x86
-
Floating Point Unit
-
Encryption Engine: AES-NI
-
System Memory: 16GB (2x 8GB) UDIMM DDR4 ECC
-
Maximum Memory: 64GB (4x 16GB)
-
Memory Slots: 4x DDR4 long DIMM
-
Flash Memory: 4GB (Dual boot OS protection)
-
Drive Bay: 16x 3.5-inch
-
Drive Compatibility: 3.5-inch bays - 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
-
Hot-swappable
-
SSD Cache Acceleration Support
-
LAN Port: 4x RJ45 LAN Ports, 2x 10GbE SFP+ SmartNIC port
- Jumbo Frame
-
PCIe Slot: 4 slots. Slot 1: PCIe Gen2 x4 (PCH), Slot 2: PCIe Gen3 x8 (CPU), Slot 3: PCIe Gen3 x4 (CPU), Slot 4: PCIe Gen3 x4 (CPU)
-
USB: 2x Type-C USB 3.1 Gen2 5V/3A 10Gbps, 4x Type-A USB 3.1 Gen2 5V/1A 10Gbps
-
LED Indicators: HDD 1-16, Status, LAN, storage expansion port status
-
Buttons: Power, Reset
-
Sound Level: 53 db(A)
-
System Warning: Buzzer
-
Operating System: QTS 4.3.5 (embedded Linux)
-
Network & Virtual Switch:
- TCP/IP - Dual Stack (IPv4 & IPv6)
- Jumbo frame
- Port trunking (Link aggregation)
- DHCP server and client
- RADVD
- USB Wi-Fi adapter
- Virtual switch
- Network Address Translation (NAT)
- Spanning Tree Protocol (STP)
- Software-Defined Switch mode
- Static Route
- NCSI (Network Connectivity Status Indicator)
- DDNS settings (Customize & Multiple Service )
-
Security:
- Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP)
- Host access control for shared folders (CIFS/SMB)
- AES 256-bit folder-based and volume-based encryptions which are validated by FIPS 140-2 CAVP (Cryptographic Algorithm Validation Program)
- 256-bit external drive encryption (AES)
- Importing of SSL certificates from Lets Encrypt
- Instant alerts through email, SMS, push service, audio
- 2-step verification
-
Storage Management:
- Supported RAID types: RAID 0, 1, 5, 6, 10, 50, 60, JBOD, Single
- RAID Hot Spare and Global Hot Spare
- RAID Rebuild Speed Customization
- Online RAID capacity expansion
- Online RAID level migration
- SSD RAID Over-provisioning
- SSD RAID Performance evaluation (with SSD Profiling Tool)
- Bitmap support
- Disk auto S.M.A.R.T. data migration
- Disk bad block scan and S.M.A.R.T test.
- Disk bad block recovery
- Disk secure data erase
- Ironwolf Health Management
- Storage pools
- Qtier Data Tiering Technology
- Automatic or scheduled data tiering
- IO-aware auto tiering
- Shared folder tiering on demand
- Flexible volumes and LUNs with thin provisioning and space reclaiming
- Online volume expansion
- Volume type convert
- Volume shrink
- Storage space utilization
- Snapshots
- Volume and LUN snapshots
- Snapshot Dashboard
- Snapshot Manager
- Snapshot local restore and revert
- Snapshot Clone
- Snapshot Replica and Snapshot Vault
- Snapshot remote restore and revert
- Unified Snapshot Directory
- Support for Windows Previous Versions (CIFS/SMB)
- Snapshot Agent for Microsoft Windows and VMware vSphere
- Storage expansion using QNAP expansion units
- JBOD enclosure roaming
- SSD read-only and read-write cache
- SSD write-only cache
-
File System:
-
Internal HDD: EXT4
-
External HDD: EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT
-
Form Factor: 3U Rackmount
-
Fan: System: 4x 9.2cm fan (12V DC)
-
Power Supply: 2x 500W, 100-240V
-
Power Consumption: Operating Mode, Typical - 130.43 W
-
Dimensions (WxDxH): 18.94 x 22.58 x 5.12 inch
-
Weight: 30.34 lbs
