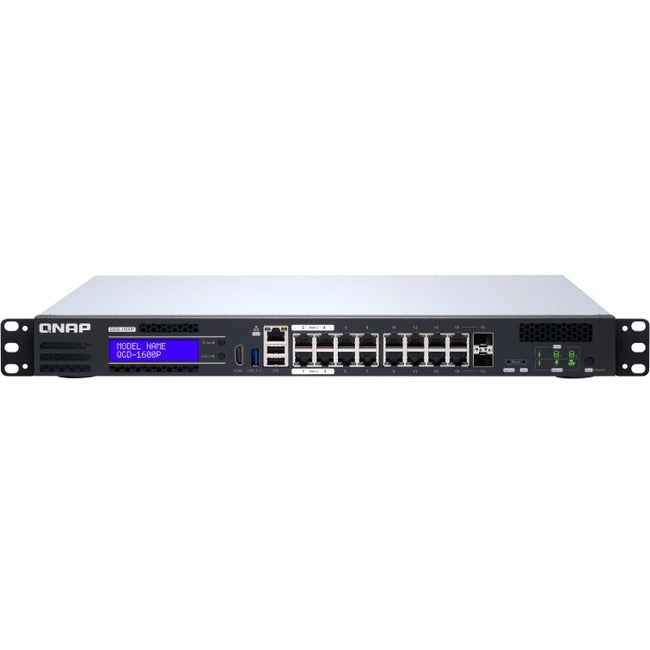

QNAP QGD-1600P-4G Ethernet Switch QGD-1600P-4G-US

Description :

QNAP QGD-1600P-4G Ethernet Switch

QNAP's QGD-1600P is the world's first PoE managed switch that supports Virtual Machines (VMs). It features 4-port 60-watt and 12-port 30-watt Gigabit PoE (with two PoE/SFP Combo ports) for highly flexible networking environment deployment. With a dual-CPU design, the QGD-1600P provides both Layer 2 management functions for VM and QTS applications. The QGD-1600P also features Software-Defined Networking (SDN), enabling it to function as a NAS, NVR, router, firewall and AP controller for IP surveillance, network security, storage expansion, and wireless LAN management applications. Therefore, the Guardian series offers SMBs a cost-optimized and centrally managed LAN deployment solution.

QGD-1600P is compliant with the latest IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards, and offers 4-port 60-watt and 12-port 30-watt Gigabit PoE capability. QGD-1600P can supply a total power budget of 370 watts to meet the demands of high-powered devices (PDs).

QGD-1600P provides comprehensive Layer 2 management features, such as VLAN, LACP, QoS IGMP Snooping, and Wake-on-LAN for IT administrators to efficiently control the network bandwidth and enhance security via the user-friendly switch management web interface.

QuNetSwitch offers a user-friendly web interface to help IT administrators efficiently control Layer 2 and PoE networks. Additionally, the overview dashboard and graphical statistics analysis show IT administrators all switch information and pored devices at a glance, making central management of high-power devices intuitive and easy.

Supports up to two SATA drives.

PCIe expandability allows for 10GbE network cards, QM2 dual-port M.2 SSD/10GbE cards, USB 3.1 Gen 2 (10Gbps) cards, or Wireless Adapters.

Host containerized applications and virtual machines with various operating systems. Flexibly install virtual router, firewall, or wireless LAN management software for various networking management applications.

• Features 16 networking ports to easily establish a local network or expand your existing one


• Gigabit Ethernet port for ultra-fast network speeds


• Can work as layer 3 routing for scalable network design


• Management capability provides control over setup and configuration of your network


• Built-in power supply to ensure all components are being supplied with accurate voltage

Product Type: Ethernet Switch
Country Of Origin: Taiwan
Product Series: QGD
Brand Name: QNAP
Form Factor: Desktop
Manufacturer: QNAP Systems
Product Model: QGD-1600P-4G
Product Name: QGD-1600P-4G Ethernet Switch
Manufacturer Part Number: QGD-1600P-4G-US
Manufacturer Website Address: http://www.qnap.com
Package Contents:

• QGD-1600P-4G Ethernet Switch
• Power Cord
• 6 x Flat Head Screw (for 2.5" HDD)
• 1 x Ethernet Cable
• Rackmount Kit
• Rubber Feet
• Quick Installation Guide (QIG)
