Panorama Antennas Lg-In2607 Antenna

Description :

Panorama Antennas LG-IN2607 Antenna

The LG-IN2607 is a high performance 4x4 MiMo LTE, 2x2 MiMo Dual Band WiFi + 1x Bluetooth function and GPS/GNSS active antenna covering 617-960/1710-6000MHz.

Part Number: LG-IN2607

• Low profile antenna with 8 functions in 1
• 4x4 MiMo 4G/5G LTE cellular, 2x2 MiMo Dual Band WiFi + 1x Bluetooth function, GPS/GNSS in one housing
• Kits with extension cables available for a range of LTE routers
• Suitable for Cradlepoint R1900 Series Routers

The LG-IN2607 range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz combined with GPS/GNSS and 2x2 MiMo WiFi 2.4/5.0GHz + Bluetooth function in a compact low profile housing.

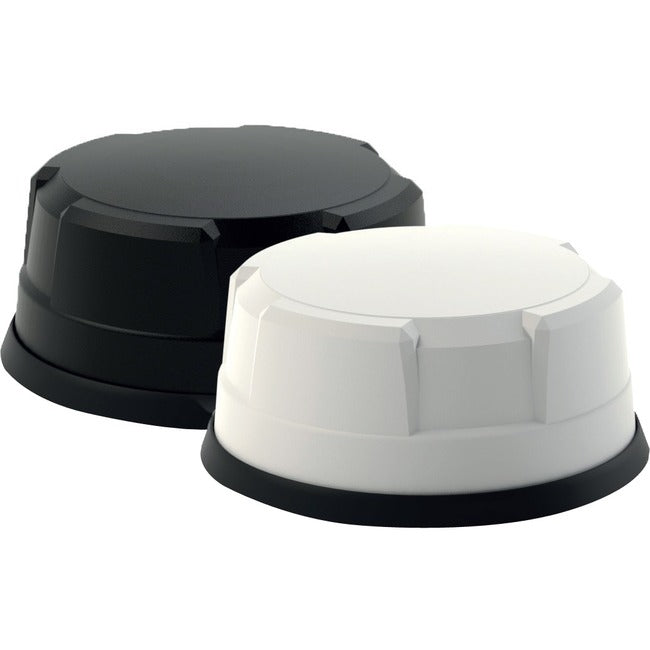

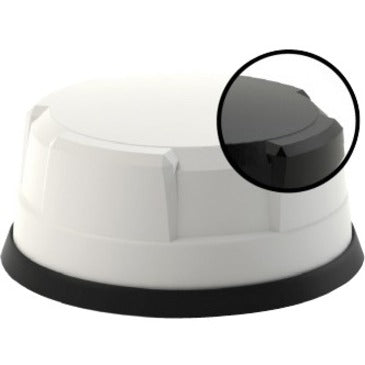

The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications. The antenna radome is available in black or white and meets IK10 for vandal resistance and IP69K for ingress protection.

The integrated GPS/GNSS module supports GPS, Glonass, Galileo, QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference.

LG-IN2607 is supplied as a complete plug and play kit with integrated 5m (16') ultra-low loss TPE extension cables and SMA (m) connectors for 4G/5G and GPS and Rev Pol SMA for WiFi.

• Designed to operate at 617 MHz to 960 MHz frequency

• This antenna provides improved signals to your wireless data network

• Offers up to 26 dB gain

• Provides ease of management and installation thanks to its omni-direction feature

• Antenna can be mounted as panel mount

Product Type: Antenna
Environmentally Friendly: Yes
Environmental Certification: REACH
Product Color: Black
Diameter: 7.09"
Brand Name: Panorama Antennas
Compatibility:

Cradlepoint R1900 Series Routers

Form Factor: Panel Mount
Manufacturer: Panorama Antennas Ltd
Product Model: LG-IN2607
Product Name: LG-IN2607 Antenna
Application/Usage: Wireless Router
Manufacturer Part Number: LG-IN2607
Manufacturer Website Address: http://www.panorama-antennas.com
