Description :

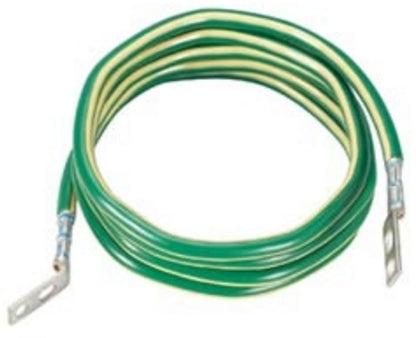

"Minimum Order Quantity: 3" 120 in, AWG Green Wire with Yellow Horizontal Stripe, Pre-TerminatedPanduit GJ6120UH. Product colour: Multicolour. Height: 3050 mm
The cable pathway system shall incorporate an auxiliary cable bracket that physically supports the grounding conductors in a discreet channel with a 2" minimum separation from other cables. Bond all sections of the cable pathway system together so they are electrically continuous, and then bond the cable pathway system to the Telecommunications Grounding Busbar (TGB) or other suitable grounding infrastructure. Cable pathway sections shall be bonded together with a #6 AWG bonding jumper either directly attached to the pathway or attached with a UL Listed and CSA Certified connector or bracket. Bonding jumpers shall be constructed of #6 AWG code conductor with green/yellow insulation and factory terminated on both ends with two-hole copper compression lugs that are UL Listed, CSA Certified and meet NEBS Level 3.
Specifications :
General Information
Manufacturer | PANDUIT CORP |
---|---|
Manufacturer Part Number | GJ6120UH |
Manufacturer Website Address | http://www.panduit.com |
Brand Name | Panduit |
Product Model | GJ6120UH |
Product Name | GJ6120UH Jumper Cord |
Product Type | Jumper Cord |
UPC | 0074983090068 |
Product Color | Yellow |
---|
Environmentally Friendly | Yes |
---|
