Panduit Fr12Tb12 Cable Trunking System Accessory

Panduit Fr12Tb12 Cable Trunking System Accessory

SKU:FR12TB12

$44.92
$44.92
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

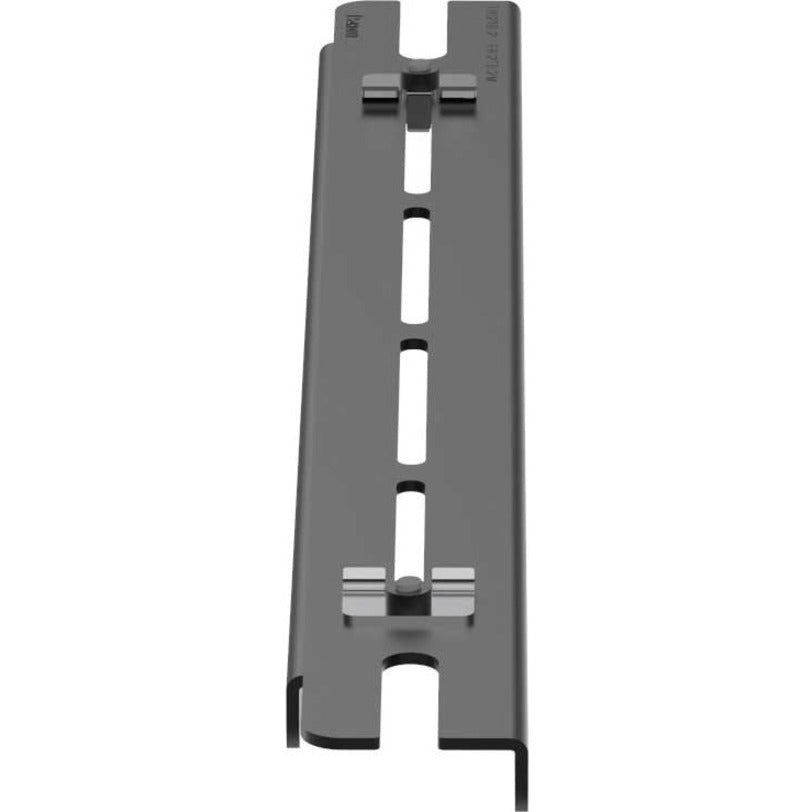

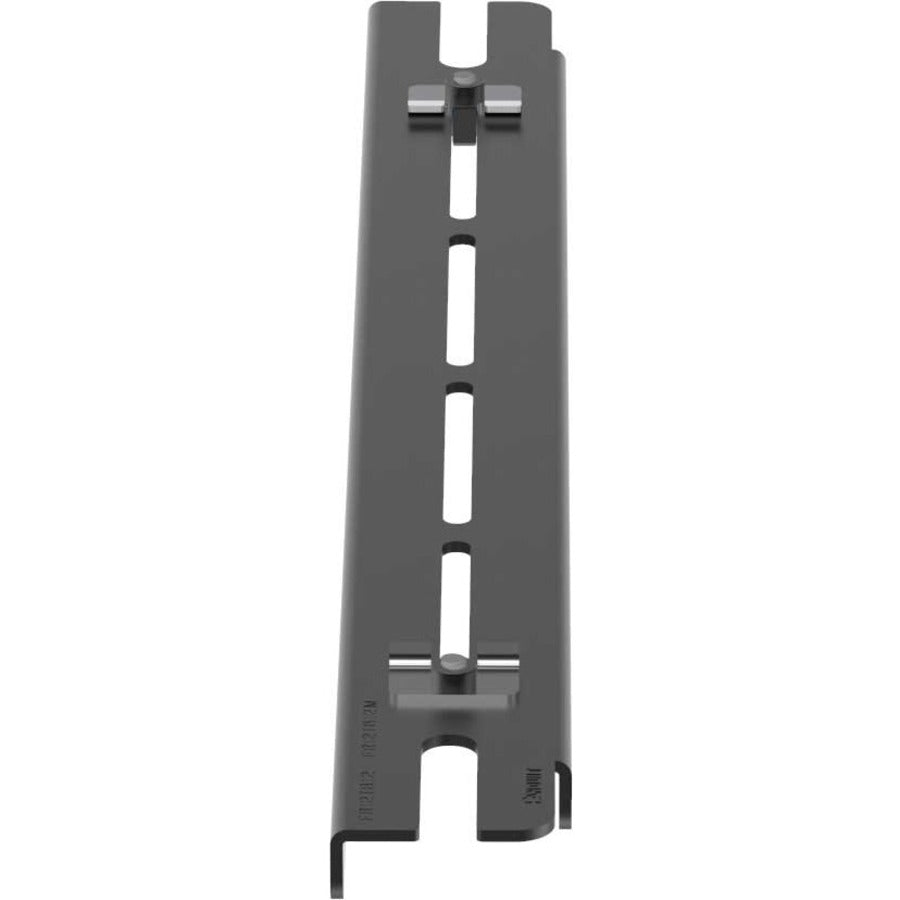

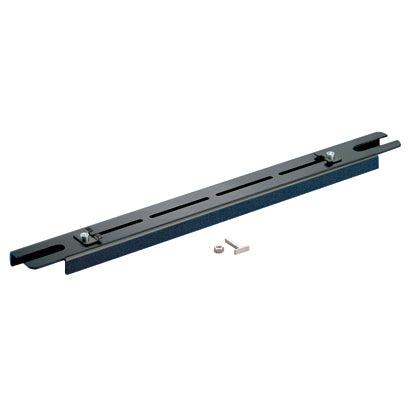

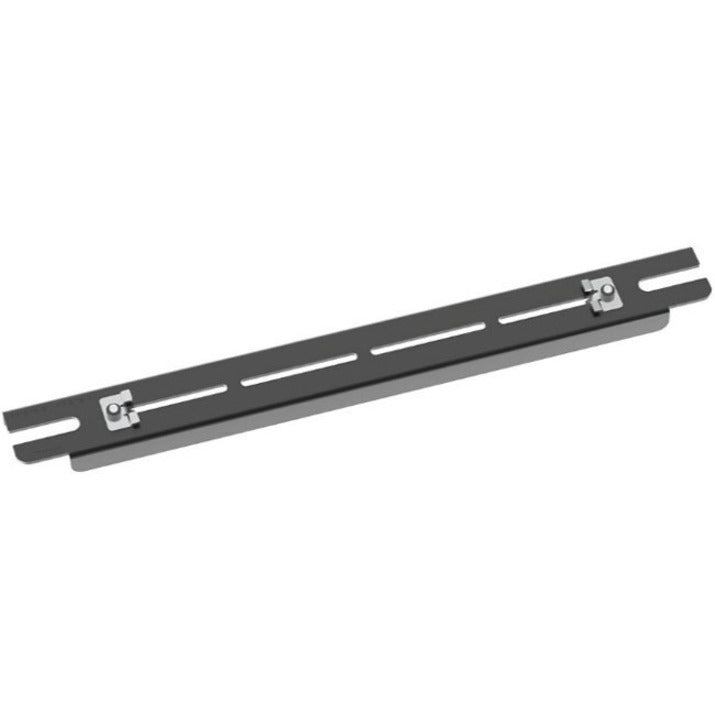

          "Minimum Order Quantity: 10" Trapeze QuikLock™ Bracket for 12x4 System

          Panduit FR12TB12. Product colour: Black, Material: Steel, Certification: RoHS. Length: 546.6 mm, Width: 57.3 mm, Height: 21.8 mm

          Used to support the 12x4 system by spanning two threaded rod drops that are 18in apart. Can be installed from above or below. Bracket is secured to each threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16in nut driver on slide clamps, For 1/2in threaded rod.

          Specifications :

          General Information

          Manufacturer PANDUIT CORP
          Manufacturer Part Number FR12TB12
          Manufacturer Website Address http://www.panduit.com
          Brand Name Panduit
          Product Line QuikLock
          Product Name FiberRunner Trapeze Bracket
          Product Type Mounting Bracket
          UPC 0074983847464
          Product ColorBlack
          Height0.9"
          Width2.3"

          Miscellaneous

          Package Contents
          • 1 x Bracket Assembly
          • 4 x 1/2 Helical Spring Lock Washers
          • 4 x 1/2-13 Heavy Hex Nuts
          • 1 x 1/4-20 T-Bolt
          • 1 x 1/4-20 Hex KEPS Nut
          FeaturesCable Management

          Warranty

          Limited Warranty1 Year
