Panduit Fr12Cs12 Cable Trunking System Accessory

Panduit Fr12Cs12 Cable Trunking System Accessory

SKU:FR12CS12

$40.02
$40.02
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

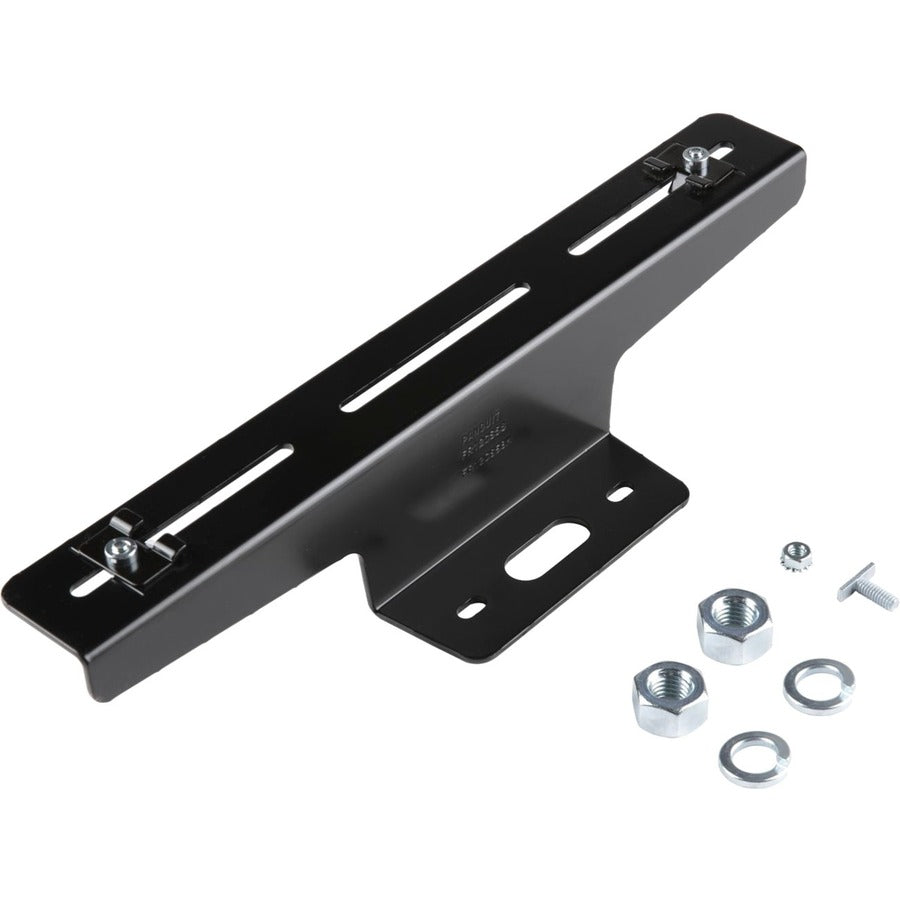

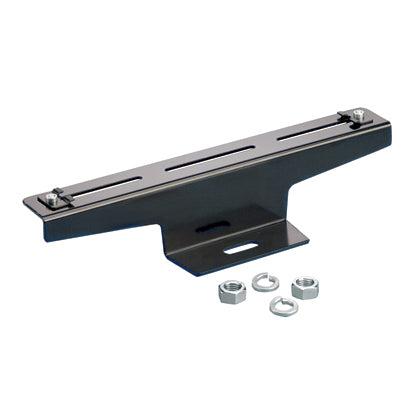

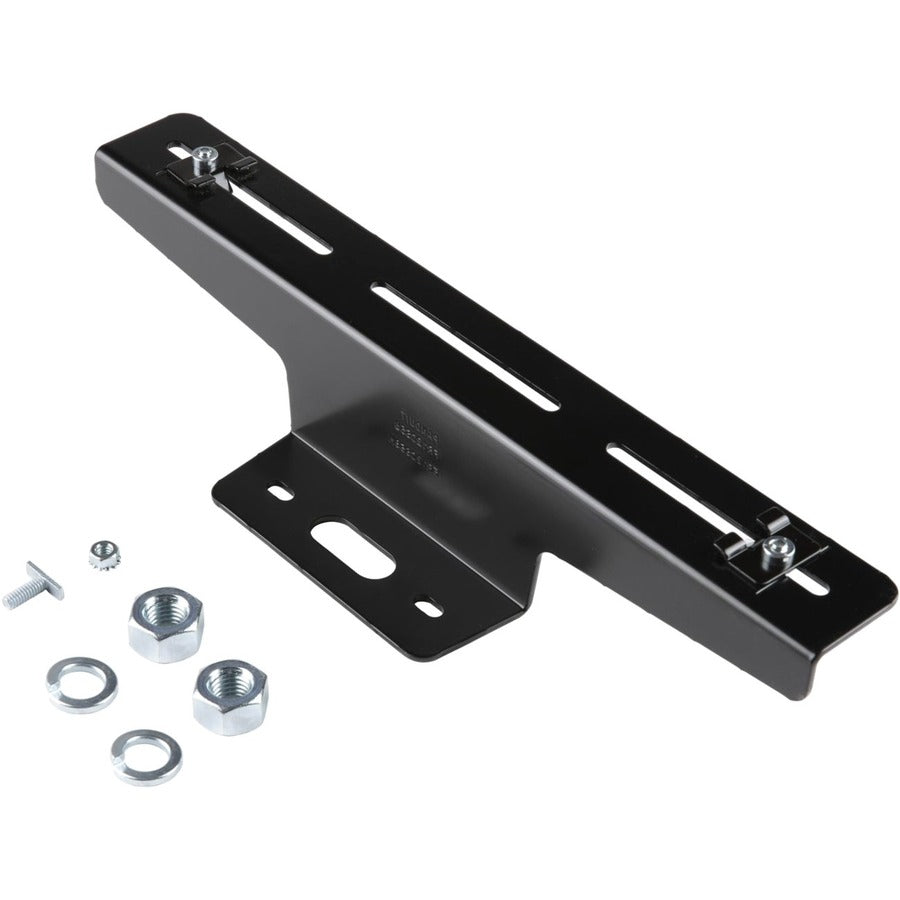

          Center Support QuikLock™ Bracket for 12x4 System

          Panduit FR12CS12. Product colour: Black, Material: Steel, Certification: RoHS. Length: 398.8 mm, Width: 101.6 mm, Height: 76.2 mm

          Used to support the 12x4 system from below with new threaded rod. Bracket is secured to threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16in nut driver on slide clamps. Also can be secured directly to the top of cabinets, For 1/2in threaded rod.

          Specifications :

          General Information

          Manufacturer PANDUIT CORP
          Manufacturer Part Number FR12CS12
          Manufacturer Website Address http://www.panduit.com
          Brand Name Panduit
          Product Line FiberRunner
          Product Name FiberRunner Mounting Bracket
          Product Type Mounting Bracket
          UPC 0074983835898
          Product ColorBlack
          Height3"
          Width15.7"

          Miscellaneous

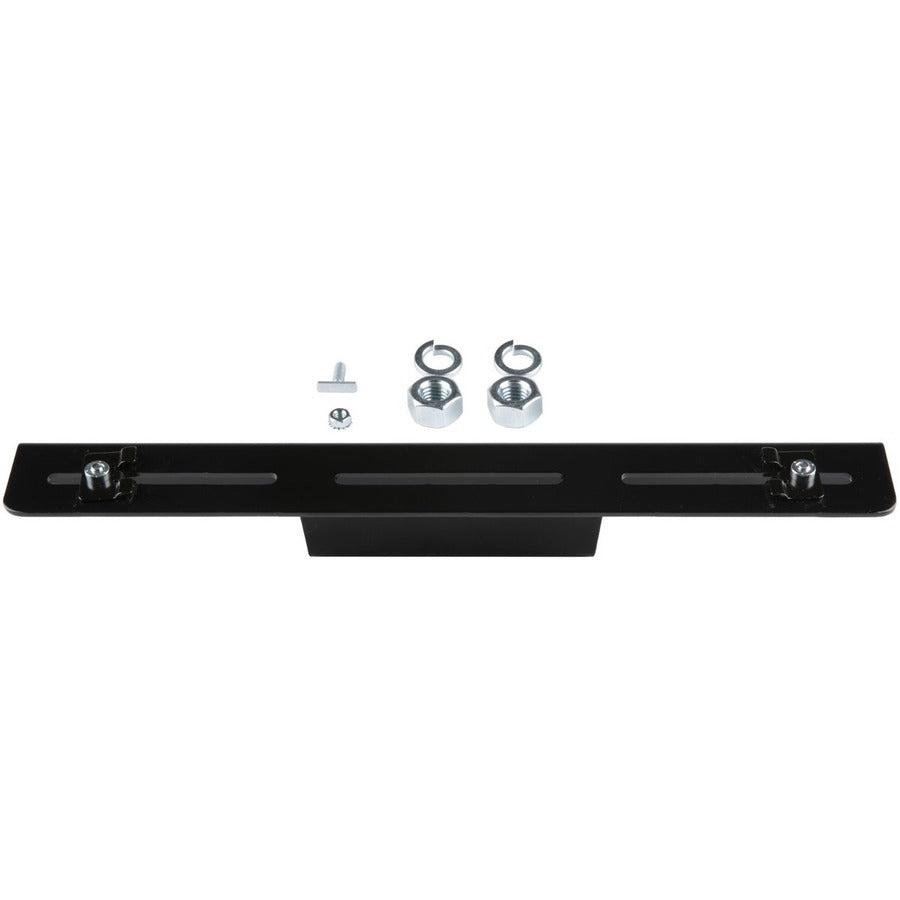

          Package Contents
          • 1 x Bracket
          • 1 x T-Fastener
          • 1 x 1/4-20 "KEPS" Locknut
          • 2 x Bracket Clip Assemblies
          • 2 x 1/4-20 Hex Head Machine Screws
          • 2 x 1/2-13 Hex Nuts
          • 2 x 1/2 Helical Spring Lockwashers
