Panduit

Panduit Fr12Acb12 Cable Trunking System Accessory

Panduit Fr12Acb12 Cable Trunking System Accessory

SKU:FR12ACB12

$42.52
$42.52
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

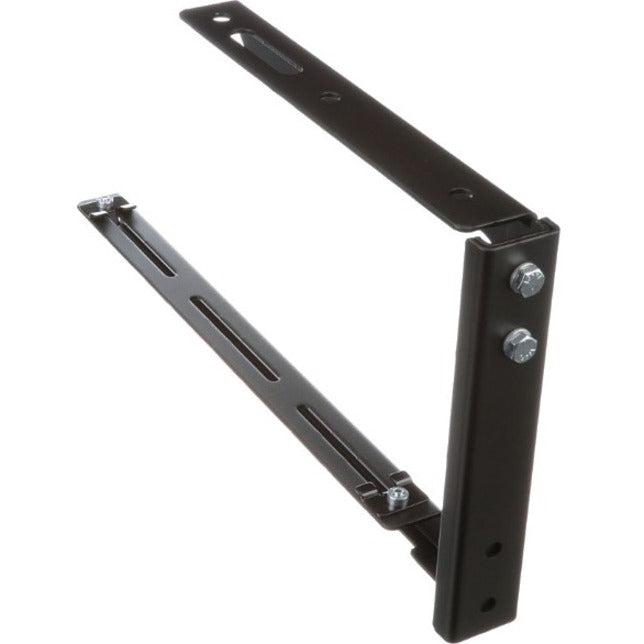

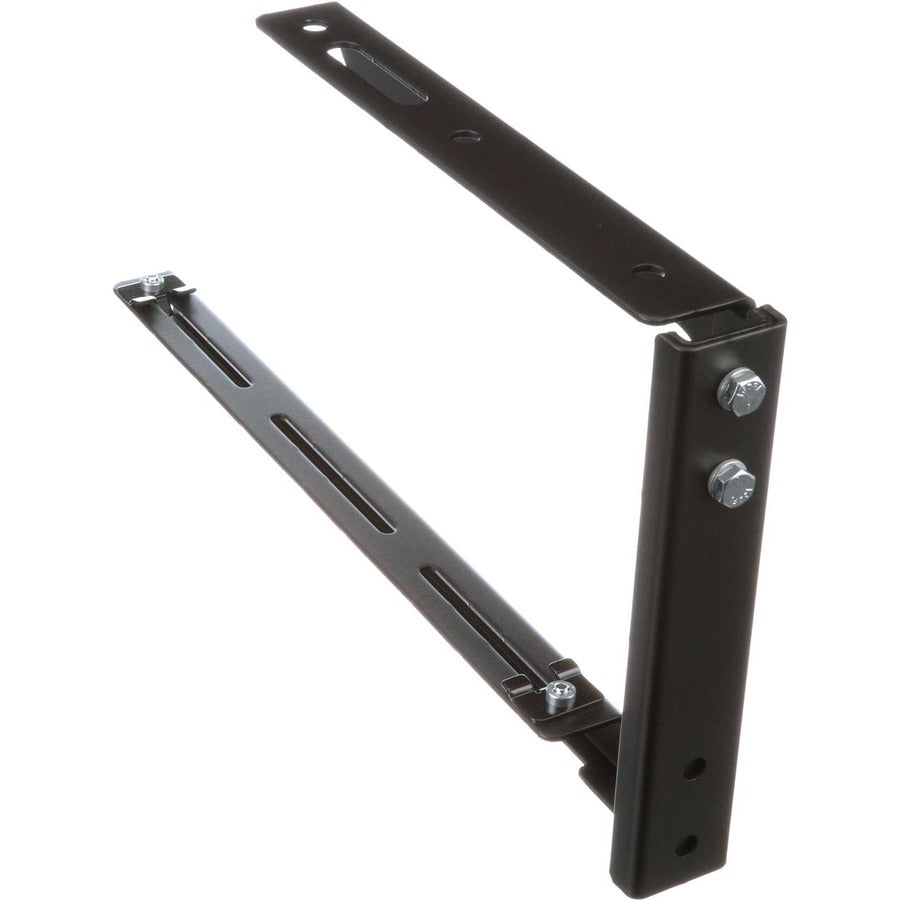

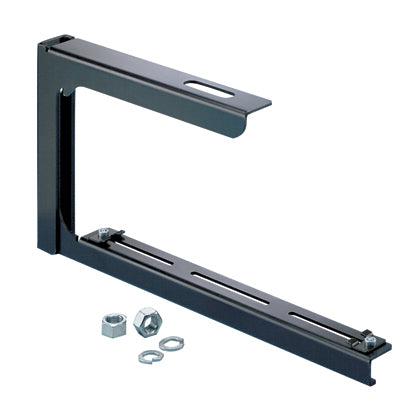

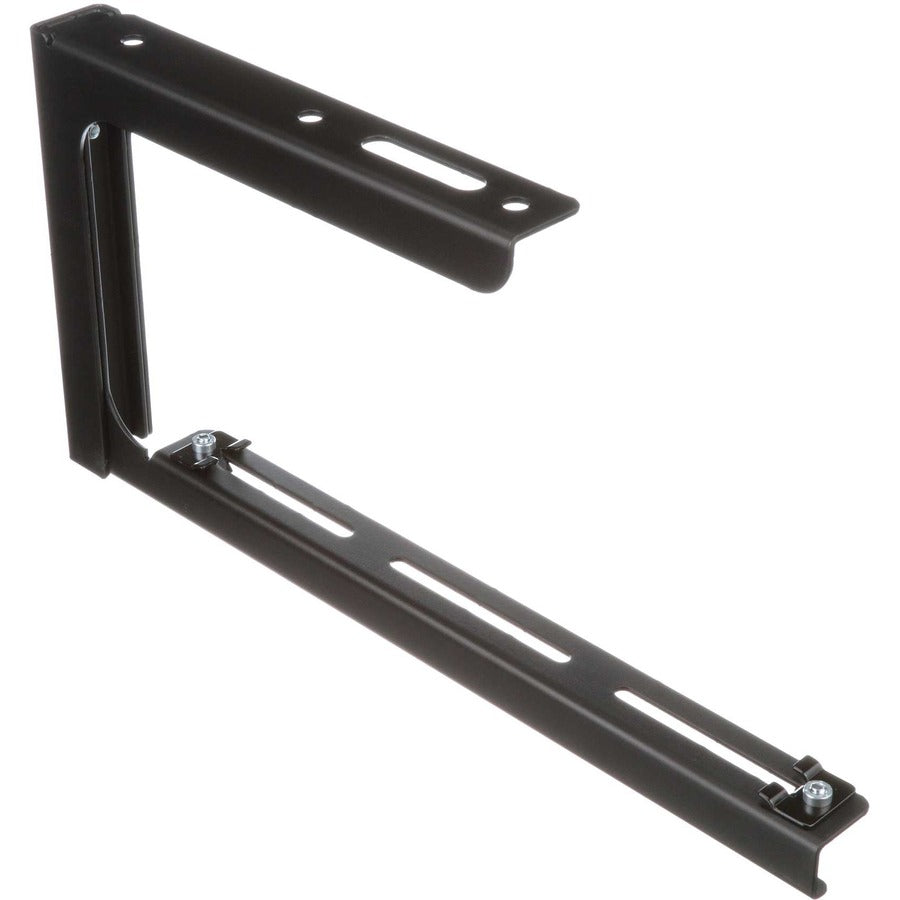

          Top Support Adjustable "C" QuikLock™ Bracket for 12x4 System

          Panduit FR12ACB12. Product colour: Black, Material: Steel, Certification: RoHS. Length: 450.7 mm, Width: 42.2 mm, Height: 221.5 mm

          Used to support the 12x4 system from any new threaded rod extending down directly from the ceiling, grid, or ladder rack system. Two position height adjustments to accommodate system with or without hinged cover. Bracket is secured to threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16in nut driver on slide clamps, For 1/2in threaded rod.

          Specifications :

          General Information

          Manufacturer PANDUIT CORP
          Manufacturer Part Number FR12ACB12
          Manufacturer Website Address http://www.panduit.com
          Brand Name Panduit
          Product Line QuikLock
          Product Name FiberRunner Adjustable C Bracket for Top Support
          Product Type Mounting Bracket
          UPC 0074983835935
          Product ColorBlack
          Height8.7"
          Width1.7"

          Miscellaneous

          Package Contents
          • 1 x Bracket Assembly
          • 2 x 1/2 -13 Heavy Hex Nuts
          • 2 x 1/2 Helical Spring Lockwashers
          • 1 x 1/4-20 T-Bolt
          • 1 x 1/4-20 Hex KEPS Lock Nut
          FeaturesAdjustable
