Omnitron Systems Omniconverter Gpoe/Se 9479-0-X Transceiver/Media Converter 9479-0-21

Description :

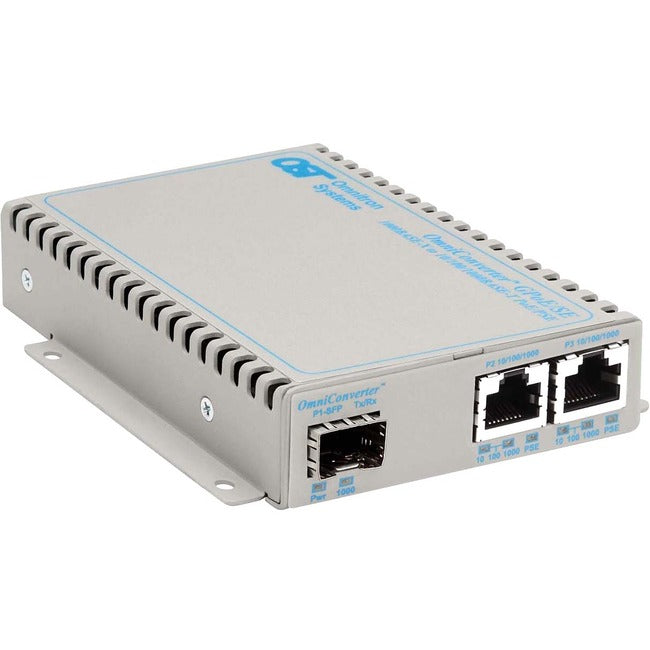

Omnitron Systems OmniConverter GPoE/SE 9479-0-x Transceiver/Media Converter

The OmniConverter GPoE/SE and GPoE+/SE are cost-effective, multi-port media converters that convert 10/100/1000BASE-T copper to 1000BASE-X fiber and support Power-over Ethernet (PoE and PoE+). Classified as Power Sourcing Equipment (PSE), they can provide power to one or two Powered Devices (PDs) using standard UTP cables that carry the Ethernet data. The OmniConverter functions as a PoE mini-switch, and supports single or dual RJ-45 ports.

OmniConverter PoE media converters provide network distance extension with fiber cabling, and function as PoE injectors that enable powering devices such as IP-phones, surveillance cameras and wireless access points with Power over Ethernet (PoE).
The OmniConverter GPoE/SE and GPoE+/SE support framesizes up to 10,240 bytes. The GPoE/SE provides up to 15.40W PoE (IEEE 802.3af) per RJ-45 port. The GPoE+/SE provides up to 34.20W PoE+ (IEEE 802.3at) per RJ-45 port for more demanding PDs such as video conferencing equipment, PTZ (pan-tilt-zoom) cameras and multi-stream 802.11n wireless access points.

OmniConverter media converters support Small Form Pluggable (SFP) transceivers. SFP transceivers enable adaptability to different fiber types and distances, and support Coarse Wave Division Multiplexing (CWDM) technology to increase the bandwidth capacity of fiber infrastructure.

The fixed fiber models support 1000BASE-X over multimode and single-mode dual fiber with ST and SC connectors; and single-mode single-fiber with SC connectors. The compact standalone OmniConverter media converters can be tabletop mounted, wall mounted, or DIN-rail mounted using an optional DIN-rail mounting kit. They can also be mounted on a 1U 19" rack-mount shelf. They are available with DC power via terminal
connectors or external 100 to 240V AC power adapters.

In this application example, a fiber-to-the-desk network is deployed to leverage the security and distance benefits of fiber.

In the main data closet, iConverter, miConverter or FlexPoint media converters can be installed in high-density rack-mount chassis to provide reliable and cost-effective fiber distribution from existing copper network equipment.

Fiber optic cables run to each office, where they are terminated by OmniConverter GPoE/SE media converters.The OmniConverter media converters convert fiber to copper and, provide data and power to the IP phones and video conferencing equipment. They automatically disable PoE power to non-PoE desktop devices such as PCs and laptops.

• Expand your network capacity and fulfill requirement with this 2 transceiver/media converter


• Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters


• With 10/100/1000Base-TX technology get up to 1000Mbps data transfer rate over twisted pair cable


• Desktop installation makes it ideal for deployments outside the wiring closet

Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: GPoE/SE
Brand Name: Omnitron Systems
Form Factor: Wall Mountable
Manufacturer: Omnitron Systems
Product Model: 9479-0-x
Product Name: OmniConverter GPoE/SE 9479-0-x Transceiver/Media Converter
Product Line: OmniConverter
Manufacturer Part Number: 9479-0-21
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:

• OmniConverter GPoE/SE 9479-0-x Transceiver/Media Converter
• US Power Supply - 100-240Volt / 50-60Hz
