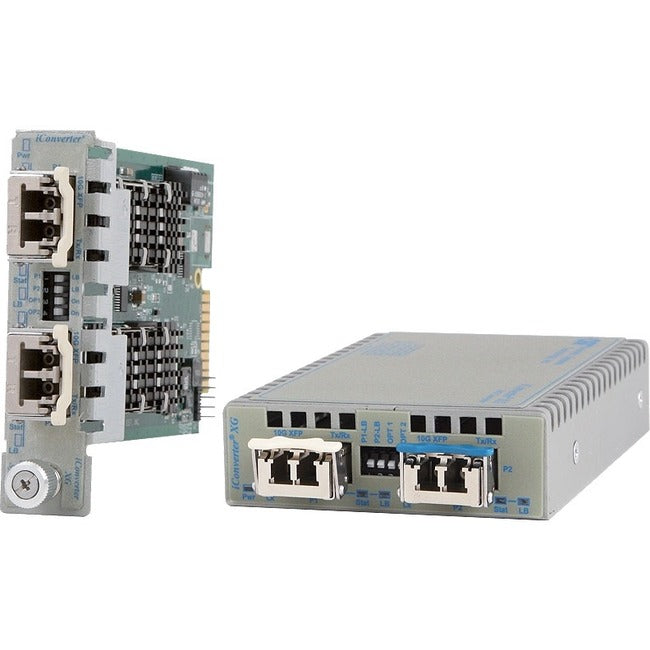

Omnitron Systems Iconverter 8599-11-W Transceiver/Media Converter

Description :

Omnitron Systems iConverter 8599-11-W Transceiver/Media Converter

The iConverter XG and XG+ are 10 Gigabit, protocol transparent media converters with two pluggable transceiver ports supporting the three Rs (regeneration, retiming and reshaping). By taking advantage of the wide variety of 10G pluggable transceivers, they can be used as copper-to-fiber converters, fiber mode converters or WDM transponders.

The iConverter XG and XG+ support 100% traffic throughput and have no packet size restrictions. Ultra low packet latency enables high-performance connectivity for data centers and financial networks. All models are protocol transparent within the range of 9.95Gbps to 10.71Gbps or 9.95Gbps to 11.32Gbps, providing interoperability with 10G Ethernet, 10G SONET/SDH, 10G Fibre Channel and 10G OTN (G.709).

Three interface configurations are available: XFP to XFP, XFP to SFP+, and SFP+ to SFP+. Pluggable XFP and SFP+ transceivers can be used for multimode and single-mode applications, supporting short haul distances, long haul distances and WDM fiber links.

The iConverter XG+ supports high-power (power level 4) XFP transceivers and the latest generation of wavelength tunable DWDM XFP transceivers. Utilizing management, the wavelength of a tunable transceiver can be programmed and saved, eliminating the need for external programming equipment.

The iConverter XG and XG+ are available as compact, unmanaged standalone units, or chassis plug-in modules that can be managed with a management module installed in the chassis. The hot-swappable, plug-in modules can be mounted in a variety of chassis with AC and DC power supplies.

Plug-in modules feature full management capabilities, including status reporting, fault detection, threshold violations, loopback functionality and SNMP trap notification. SNMP traps provide link status availability and transceiver threshold alerts.

The standalone iConverter XG and XG+ are unmanaged tabletop or wall-mount units. The tabletop model can be DINrail mounted using an optional DIN-rail mounting kit. Both the tabletop and the wall-mount models are DC powered and are available with an external AC to DC power adapter, or a terminal connector for DC power.

Built-in loopback functions, on-board status LEDs and link fault propagation modes facilitate easy setup and quick troubleshooting. Pluggable transceiver alarm conditions reported through the digital diagnostic monitoring interface are displayed by the on-board status LEDs or management interface on plug-in modules.

• LED displays for immediate visual status of each port


• Link fault detection modes facilitate quick fault detection, isolation and reporting


• Built-in loopback mode for installation verification and troubleshooting


• Supports WDM XFPs for transponder applications


• Multimode to multimode, multimode to single-mode, and single-mode to single-mode conversion


• Omnitron transceivers support SFP+ and XFP Digital Diagnostic Monitoring Interface (DDMI) bus


• Supports Omnitron and third-party pluggable 10 Gigabit transceivers: SFP+ to SFP+, SFP+ to XFP and XFP to XFP


• Compliant with MSA SFF-8472 and INF-8077i standards


• Compatible with 10G Ethernet, 10G SONET/SDH, 10G Fibre Channel and 10G OTN (G.709)


• Protocol-transparent 10 Gigabit converter/transponder with ultra low latency

Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: RoHS 2
Country Of Origin: United States
Brand Name: Omnitron Systems
Form Factor: Standalone
Manufacturer: Omnitron Systems
Product Model: 8599-11-W
Product Name: iConverter 8599-11-W Transceiver/Media Converter
Product Line: iConverter
Manufacturer Part Number: 8599-11-W
Manufacturer Website Address: http://www.omnitron-systems.com
Limited Warranty: Lifetime
