Description
- Intel Z590
- Supports 11th / 10th Gen Intel Core processors
- Supports Intel Pentium Gold / Celeron processors
- DDR4 1R 3200 / 2933 / 2666 / 2133 for 11th Gen Intel CPU (by JEDEC & POR)
- DDR4 1R 2933 / 2666 / 2133 for 10th Gen Intel CPU (by JEDEC & POR)
- Max overclocking frequency:
- 1DPC 1R Max speed up to 5333
- 1DPC 2R Max speed up to 4700+
- 2DPC 1R Max speed up to 4400+
- 2DPC 2R Max speed up to 4000+

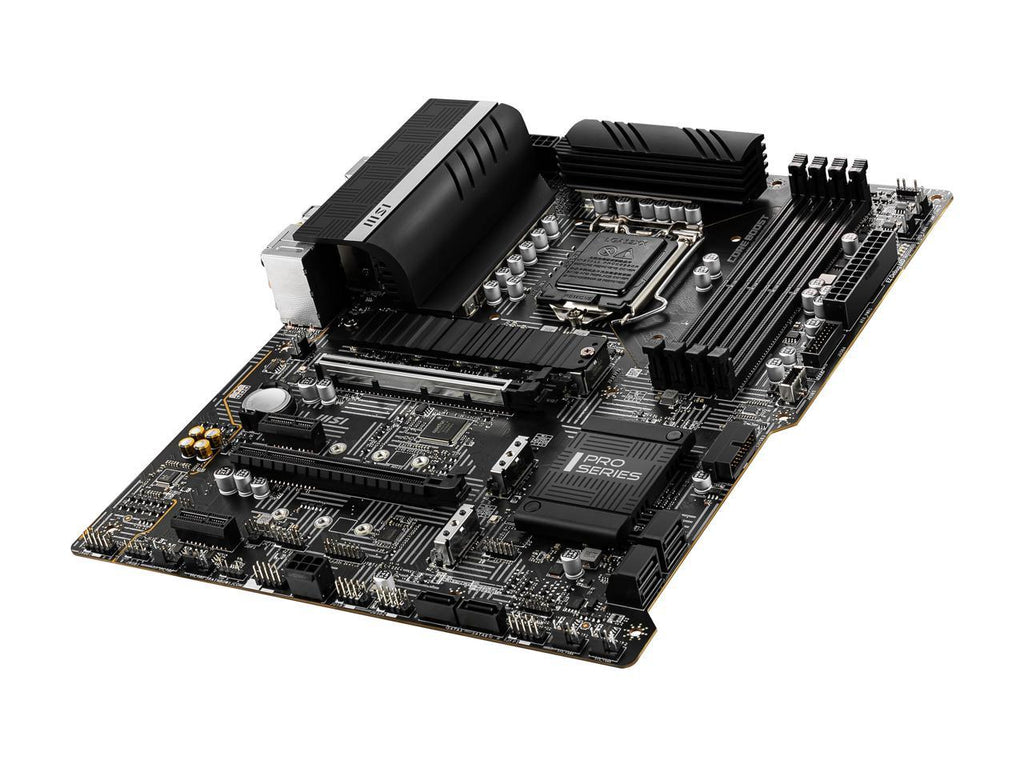

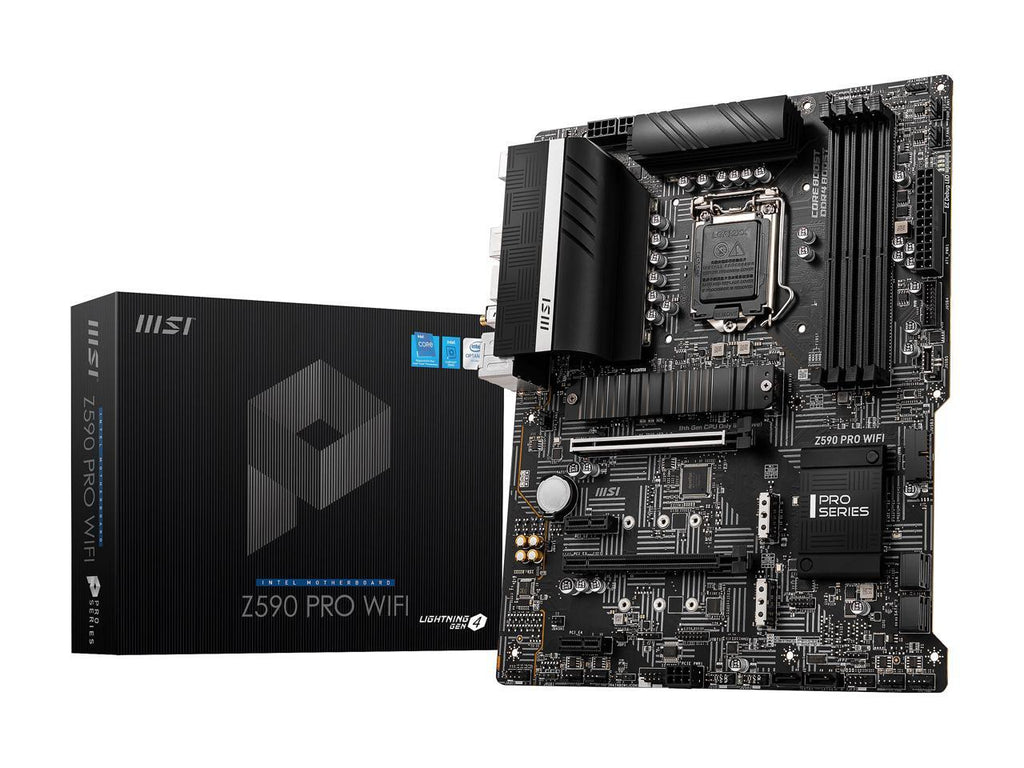

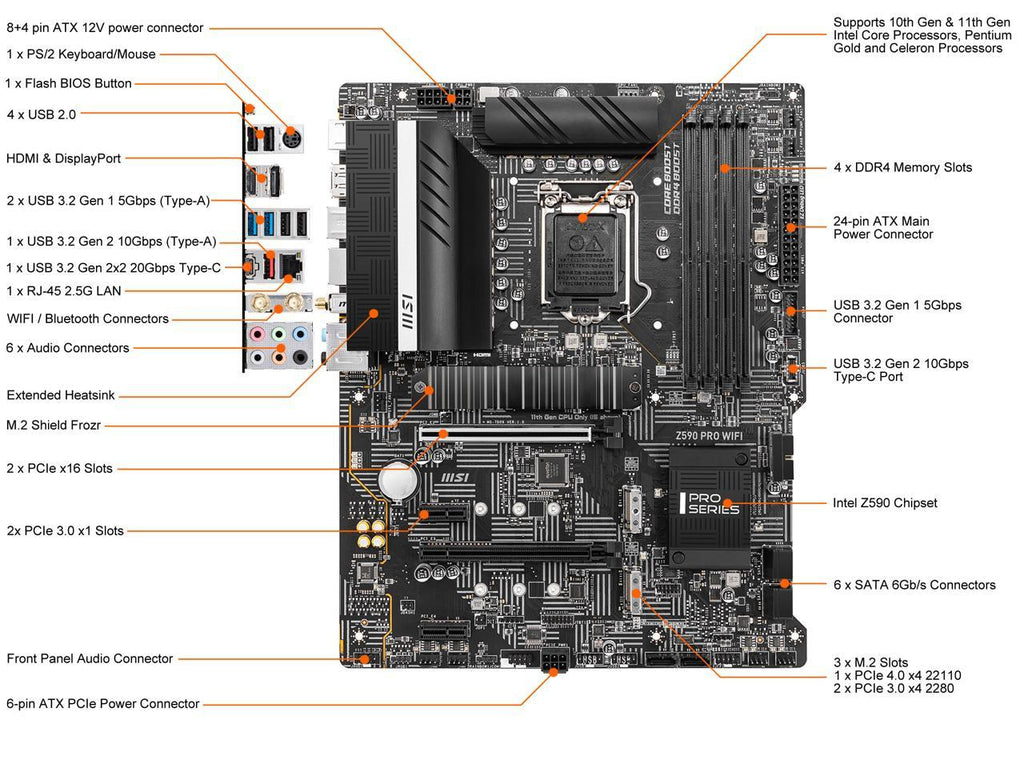

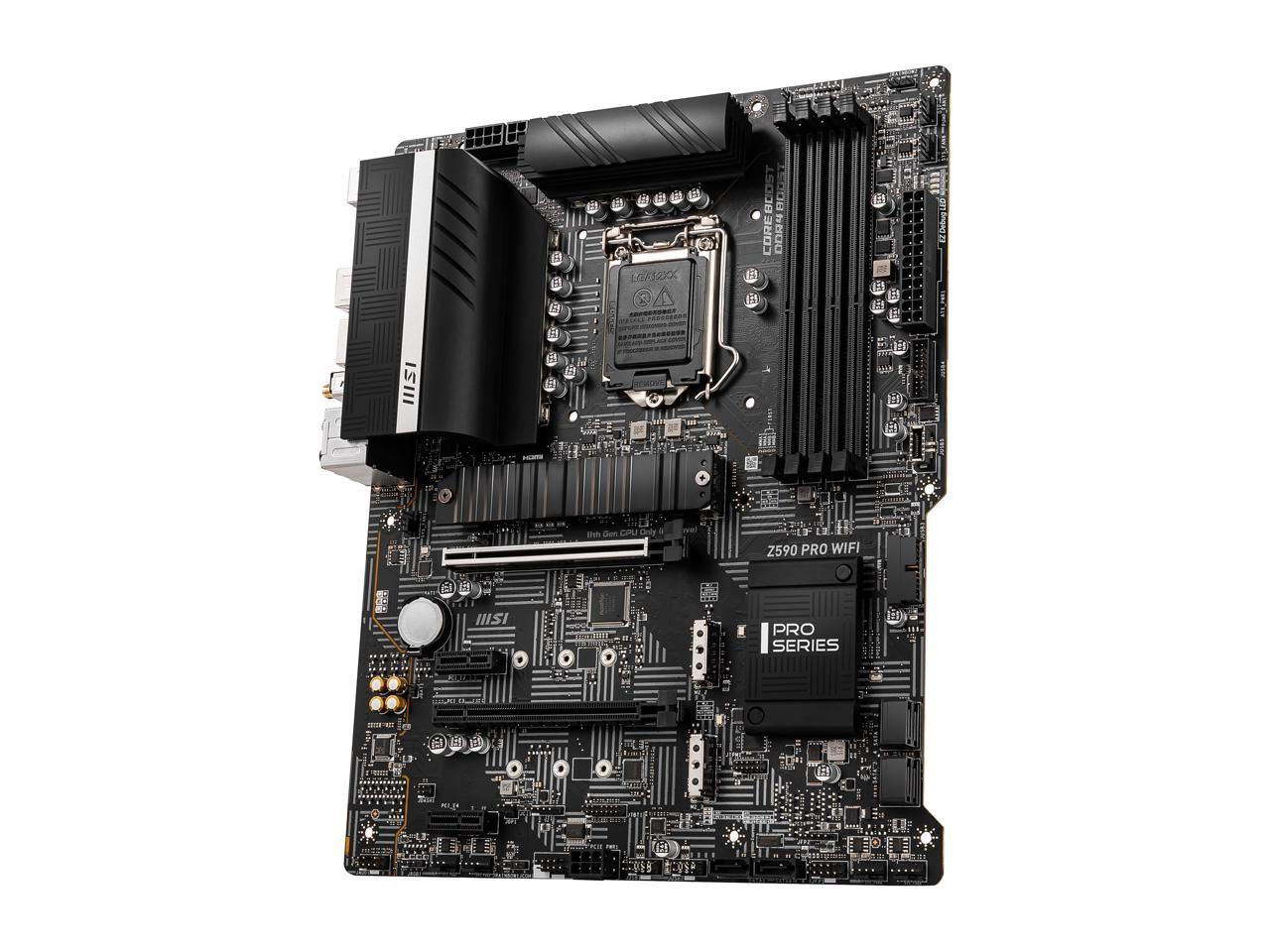

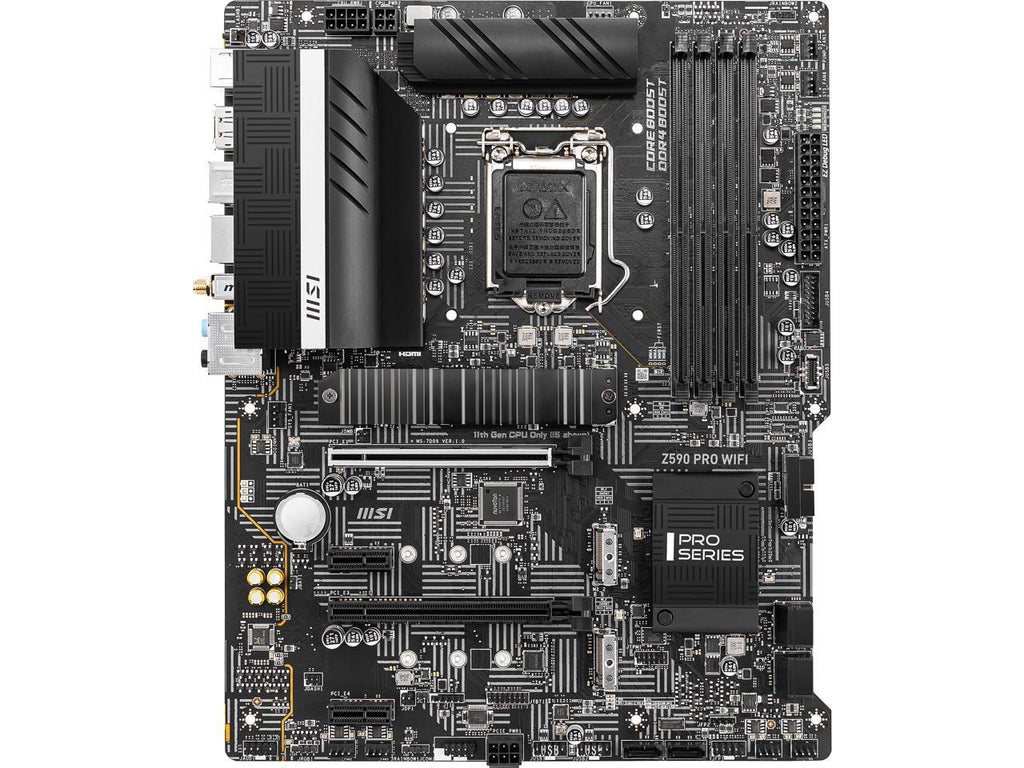

Z590 PRO WIFI
EXCLUSIVE FEATURES
Core Boost Technology
8+4 pin CPU power connectors and optimized power circuits let PRO WIFI sustain stable workloads.
6 layer PCB with 2oz thickened copper
An enhanced PCB material design improves signal transmission for high performance capabilities across the motherboard.
Digital PWM
A high quality digital power regulator keeps the system running smoothly under demanding conditions.
PCIe Steel Armor
Reinforced and shielded PCIe slots for strength and stability.
Z590 PRO WIFI
PREMIUM THERMAL SOLUTION
Extended Heatsink
Larger heatsink design for cooling and performance.
M.2 Shield Frozr
Sustain maximum high-speed M.2 SSD data transfer with M.2 SHIELD FROZR and prevent SSD thermal throttling.
Pump Fan Support
Control watercooling pump speeds for flowrate and noise control.
Z590 PRO WIFI
HIGH-SPEED TRANSMISSION
2.5G Network Solution
Onboard 2.5 Gigabit Ethernet LAN with LAN manager.
Lightning USB 20G
Built-in USB 3.2 Gen 2x2 port, up to 20Gbps transfer speed, 4X faster than USB 3.2 Gen1.
Intel Wi-Fi 6E
Featuring the latest wireless solution, delivering speeds up to 2400Mbps on the 6GHz spectrum and supports MU-MIMO and BSS color technology.
DDR4 Boost
The memory circuit design has been optimized on a reserved section of the motherboard fully isolated from other circuits.
Lightning Gen 4 Solution
Transfer data lightning fast across Gen 4 PCI-E and M.2 with up to 64GB/s bandwidth.
CORE BOOST
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, but creating the perfect conditions for your CPU overclocking.
DOUBLE POWER CONNECTORS
8+4 pin connectors deliver adequate power for multi-core CPUs even under heavy workloads.
EXTENDED HEATSINK
An all-metal extended heatsink cover enlarges the heat dissipation surface allowing the CPU power system to reliably drive even high-end processors.

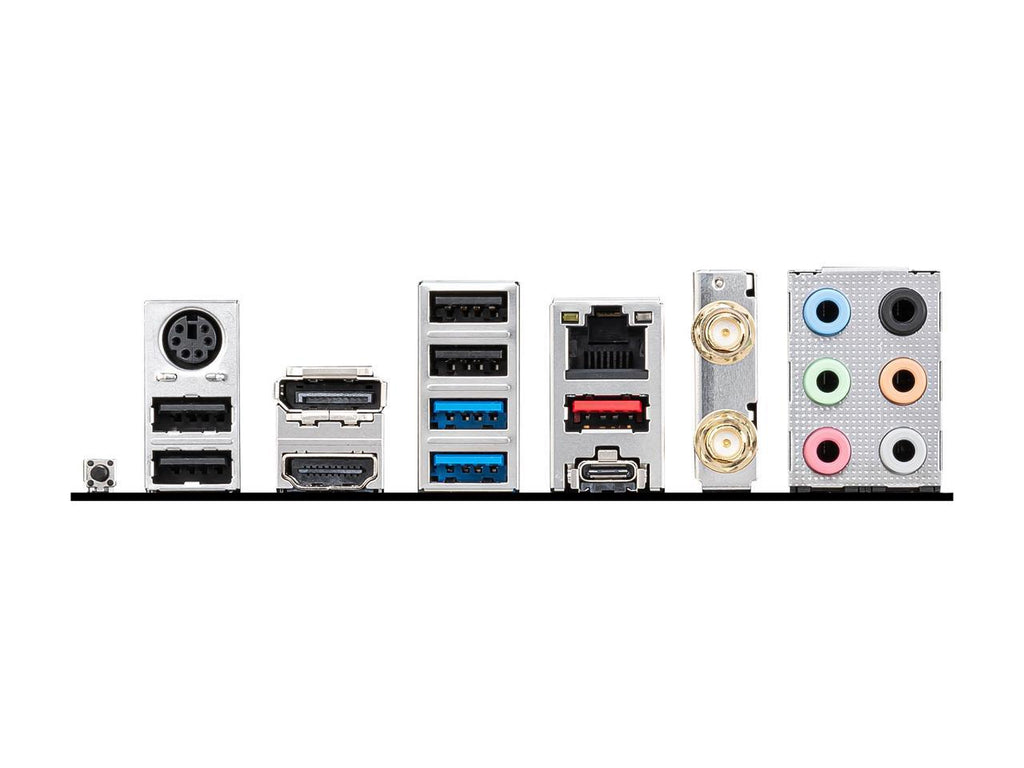

USB TYPE-C READY — REAR IO & FRONT CASE PANEL SUPPORT
Effortlessly plug in devices with reversible USB Type-C.
MSI INTEL MOTHERBOARD-Z590 PRO WIFI-A21
Sustain maximum M.2 SSD data transfer with M.2 SHIELD FROZR. Prevent SSD thermal throttling with a heatsink that extends across the motherboard.
ULTRA-FAST LIGHTNING USB 20G
Connect the rear USB Type-C port and quickly move large files including uncompressed video, raw images, and bulky simulation data across USB 3.2 Gen 2x2 with transfer speeds up to 20Gbps.
WI-FI 6E & BLUETOOTH
Connect to a high-speed Wi-Fi network with onboard Wi-Fi 6E. OFDMA and two-way MU-MIMO technology optimize data transmission and deliver speeds up to 2.4Gbps.
12 + 2 + 1 DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design built with a total of 16 Duet Rail Power System(DRPS). Combining 8+4 pin power connectors and exclusive Core Boost technology, Z590 PRO WIFI motherboard is ready to sustain heavy daily work.
UNMATCHED MEMORY PERFORMANCE
MSI takes memory stability and performance to the extreme. The memory circuit layout has been optimized for reliability and tested extensively in partnership with major memory manufacturers for compatibility.
MAXIMIUM DATA TRANSFER WITH 2.5G LAN
Zfeatures onboard 2.5Gbps Ethernet LAN, for gamers and power users who demand high-bandwidth and low-latency network connectivity. Prioritize latency-sensitive applications with MSI LAN Manager for a superior online experience.
EASY TO ARRANGE YOUR CABLES
Tuck away SATA and USB cables neatly with MSI Atypical PCB edge.
MULTIPLE GPU SUPPORTS AND STEEL ARMOR
Z590 PRO WIFI supports AMD CrossFire multi GPU technology. PCI-E slot placements provide optimal airflow for graphics card cooling.
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage counts, Steel Armor shields the point of contact from electromagnetic interference.
General Information
| UPC | 824142242148 |
|---|
