Msi Pro B450M Pro-M2 Max Am4 Amd B450 Sata 6Gb/S Micro Atx Amd Motherboard

Name: Msi Pro B450M Pro-M2 Max Am4 Amd B450 Sata 6Gb/S Micro Atx Amd Motherboard
Brand: MSI
SKU: B450M PRO-M2 MAX
Price: 109.99 USD
Availability: InStock

Msi Pro B450M Pro-M2 Max Am4 Amd B450 Sata 6Gb/S Micro Atx Amd Motherboard

SKU:B450M PRO-M2 MAX

$109.99

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

View full details

Description

Specifications

Reviews, Que. & Ans.

Description :

AMD B450
Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
For AMD Ryzen Gen3 (R5/R7/R9)
- Supports DDR4 4133/ 4000/ 3866/ 3733/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC mode
For AMD Other CPU
- Supports DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC mode
Supports DDR4 2667/ 2400/ 2133/ 1866 MHz by JEDEC

B450M PRO-M2 MAX

BUSINESS CLASS

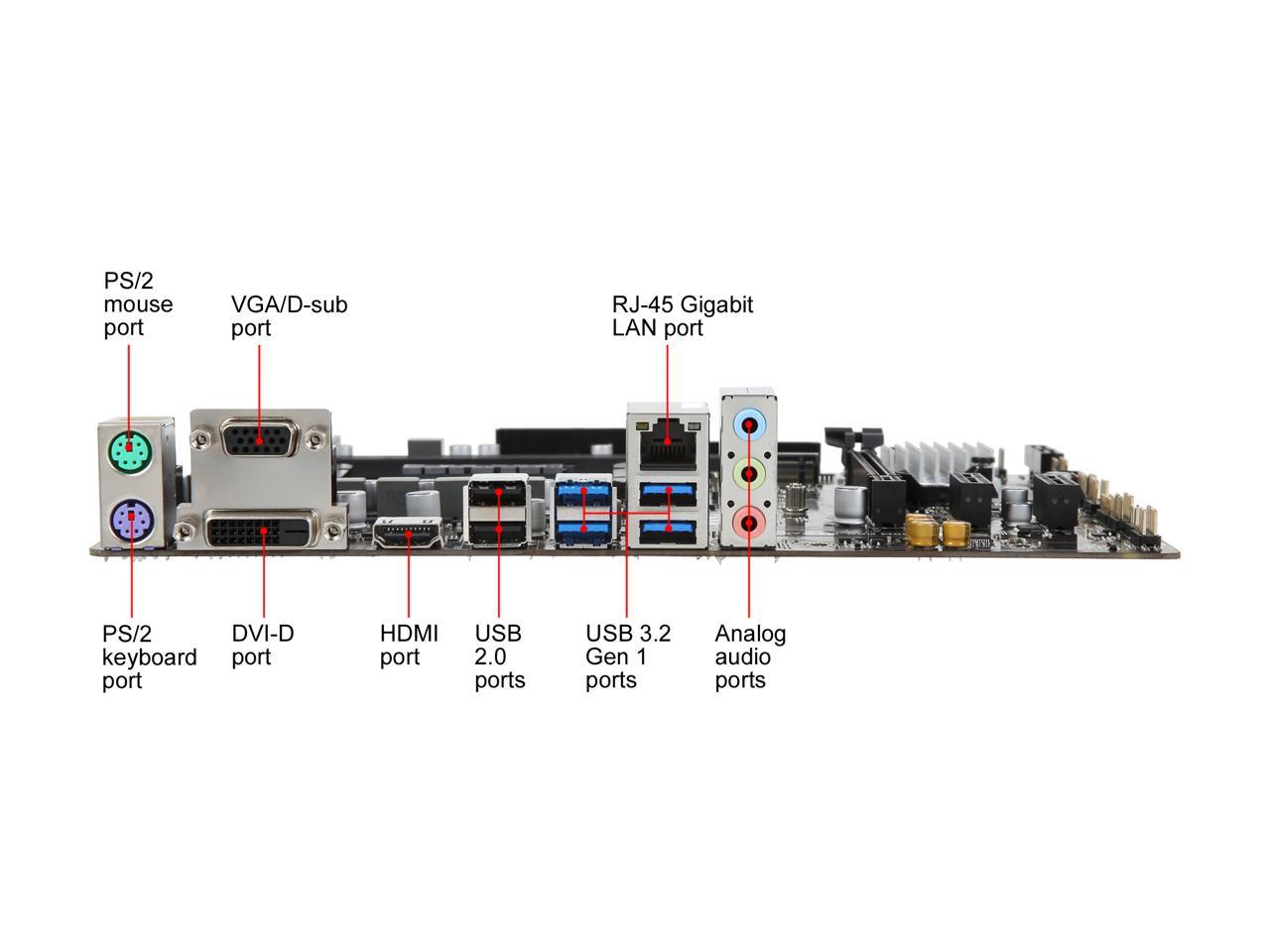

1 Keyboard & Mouse
2 DVI-D & VGA
3 HDMI
4 USB 2.0 Ports
5 USB 3.2 Gen1 Ports
6 USB 3.2 Gen1 & LAN Port
7 HD Audio Connectors

Display Interface


VGA Port	DVI-D Port	HDMI Port

8DDR4 Boost
Optimized traces and isolated memory circuitry
9Turbo M.2
NVMe support, delivering speeds up to 32Gb/s using PCI-Express Gen3 x4
10PCI-E Steel Slot
Reinforced against bending
11Heavy-Plated Heat Sinks
Designed for maximum cooling
12Audio Boost
Reward your ears with studio-grade sound quality

ENHANCED BIOS COMPATIBILITY & CROSS-GEN RYZEN SUPPORT

MAX motherboards have been upgraded to support multiple Ryzen processor generations including Ryzen 3000 series processors. Get more with Click BIOS 5, designed with an easy-to-use layout and advanced system-tuning capabilities.

EXTREME STORAGE PERFORMANCE: TURBO M.2

Enjoy a blazing-fast system boot up and insanely quick loading of applications and data. Delivering speeds up to 32Gb/s per device using Gen3 x4.

CORE BOOST

Core Boost is the latest advancement of MSI's motherboard CPU power delivery system. A reserved zone of premium power delivery components on an optimized circuit design results in a highly efficient power system capable of precise current output to the CPU.

UNMATCHED MEMORY PERFORMANCE

MSI takes memory stability and performance to the extreme. We've designed an optimized memory circuit design for reliability and tested compatibility extensively in partnership with major memory manufacturers.

BEST COMPATIBILITY

Get more out of high-performance RAM with DDR4 Boost. The memory circuit design has been optimized for short and fast transmission on a reserved section of the motherboard fully isolated from any other circuit.

FORTIFY YOUR SYSTEM WITH PCI-E STEEL SLOTS

MSI PCI Express Steel Slots are secured to the motherboard with extra solder points and reinforced to support the weight of heavy graphics cards.

AMPLIFY YOUR GAME WITH AUDIO BOOST

Like a dedicated sound card, Audio Boost offers a HD audio processor, dedicated amplifier and high-quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

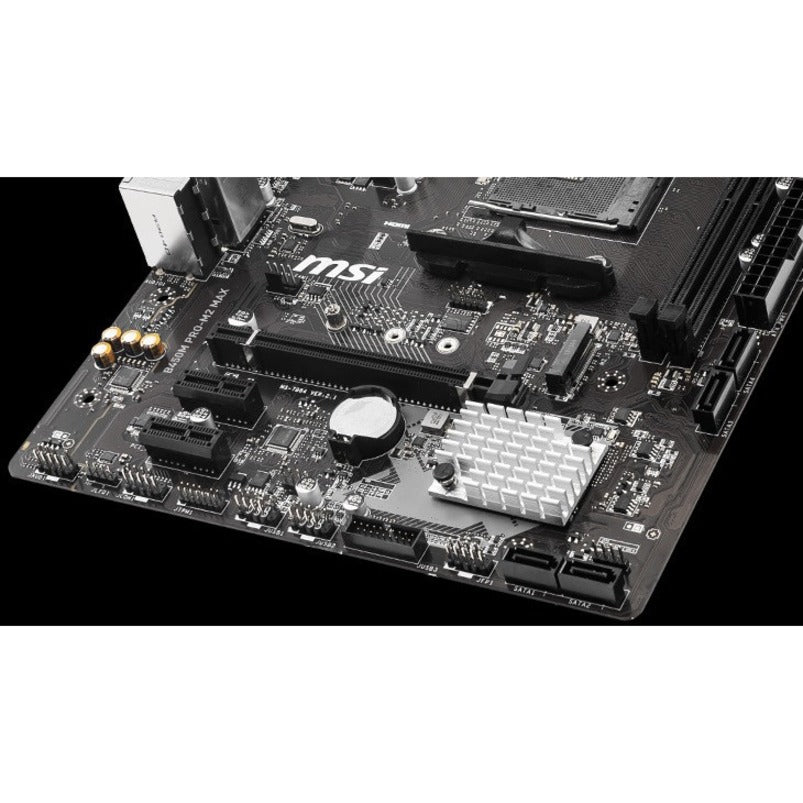

detail of isolated Audio line and high-quality audio capacitors

Specifications :

General Information

Manufacturer	MSI
Manufacturer Part Number	B450M PRO-M2 MAX
Manufacturer Website Address	http://www.msi.com
Brand Name	MSI
Product Series	PRO
Product Model	B450M PRO-M2 MAX
Product Name	B450M PRO-M2 MAX Desktop Motherboard
Product Type	Desktop Motherboard
UPC	824142189689
