Description
- Intel Z590
- Supports 11th Gen Intel Core Processors
- Supports 10th Gen Intel Core Processors
- Supports Pentium Gold and Celeron Processors
- DDR4 5600(OC)/ 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEG Z590 GODLIKE
OUTSTANDING COOLING SOLUTION
Frozr Heatsink Design with Zero Frozr Technology
An active cooling design is ready to spin up when the VRM is loaded with power.
Double Side M.2 Shield Frozr
Sustain maximum high-speed M.2 SSD data transfer with M.2 SHIELD FROZR and prevent SSD thermal throttling with a double-sided sandwiching thermal design.
Wavy Fin Design with 7W/mK Thermal Pad
Large heatsink over the VRM for superior heat dissipation.
8mm Heat-pipe Design
Connects the two MOS heatsinks to enlarge the heat dissipation surface.

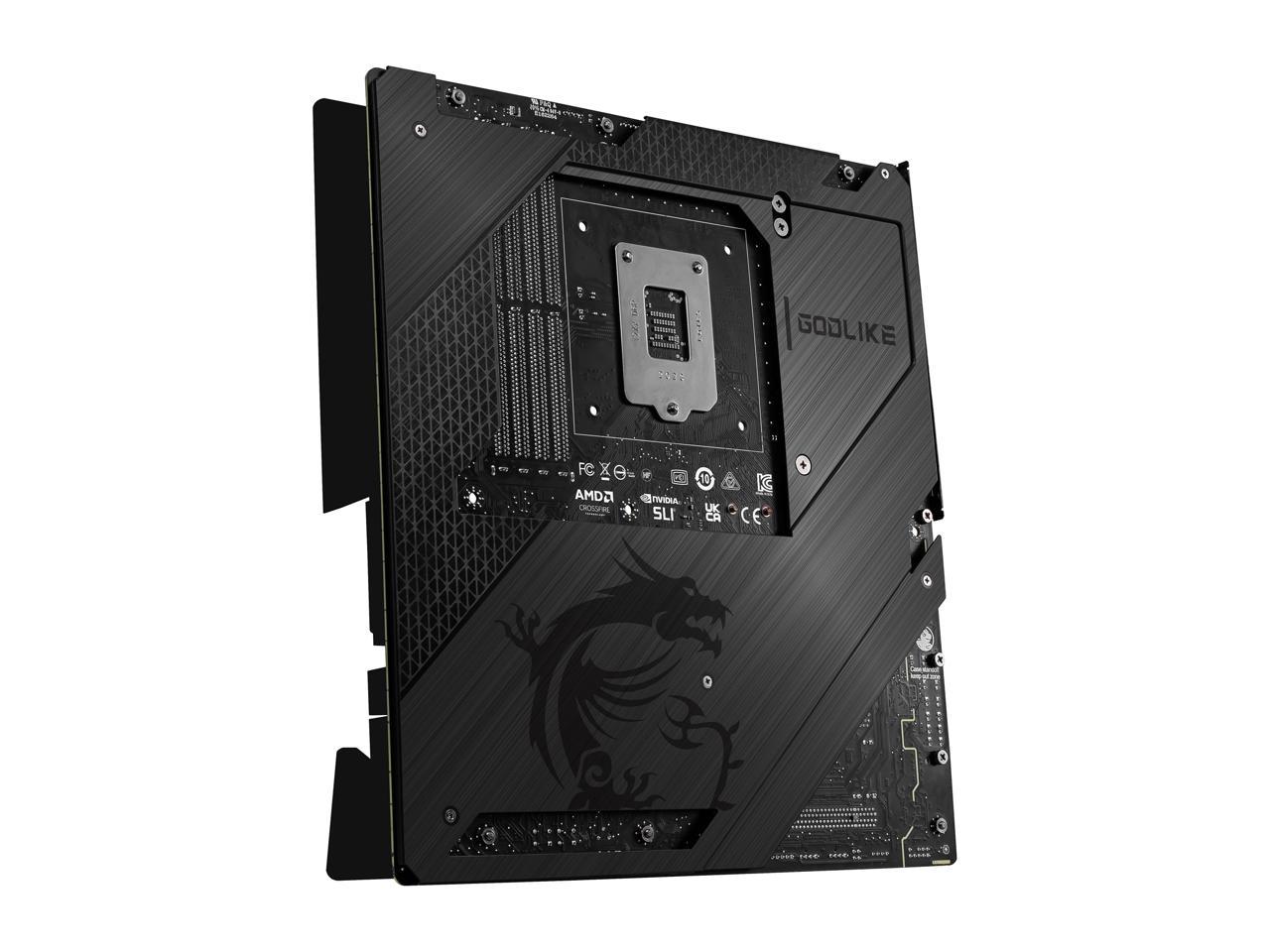

Aluminum Backplate
A rigid aluminum backplate cools down the Mosfet with a dedicated thermal pad.
MEG Z590 GODLIKE
UNLIMITED CONNECTIVITY
Dual Thunderbolt 4 ports
Connect Thunderbolt devices and displays via USB Type-C and transfer at speeds up to 40 Gb/s.
Wi-Fi 6E Solution
Featuring the latest wireless solution, delivering speeds up to 2400Mbps on the 6GHz spectrum and supports MU-MIMO and BSS color technology.
M.2 XPANDER-Z GEN4 S
Add two extra M.2 slots for ultra-fast SSDs and sustain maximum transfer speeds with the smart fan cooling design.
10G Super LAN + 2.5G LAN
Crush enemies on the battlefield with MSI LAN Manager. Onboard 10G Super LAN and 2.5G LAN deliver the best online experience without lag.
Quadruple M.2 Connectors
Four onboard M.2 connectors for high-speed storage performance.
MEG Z590 GODLIKE
STABLE CORNERSTONE OF YOUR SYSTEM
8-Layer PCB Design
Multilayer printed circuit board design improves signal transmission for extreme performance capabilities across the motherboard.
PCIe Steel Armor
Reinforced and shielded PCIe slots for strength and stability.
Direct 20 Phases with 90A Smart Power Stage
High quality components with direct digital power, 90A SPS and titanium choke III lets the system runs smoothly under extreme conditions.
Dynamic Dashboard II
A dynamic OLED screen panel can display the status of the GODLIKE motherboard and more.
2oz Thickened Copper
An enhanced PCB material design improves heat dissipation and high-performance capabilities.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
MEG Z590 GODLIKE features Wavy fin design, 8mm heatpipe, 7W/mK thermal pads, Frozr Heatsink and Aluminum Backplate to ensure the extreme performance with low temp.
DIRECT 20+1 PHASES WITH 90A SMART POWER STAGE
MEG Z590 GODLIKE features INTERSIL digital PWM, direct 20 phases with 90A Smart Power Stage, Titanium Choke III, and dual CPU power connectors to unleash and sustain maximum processor performance.

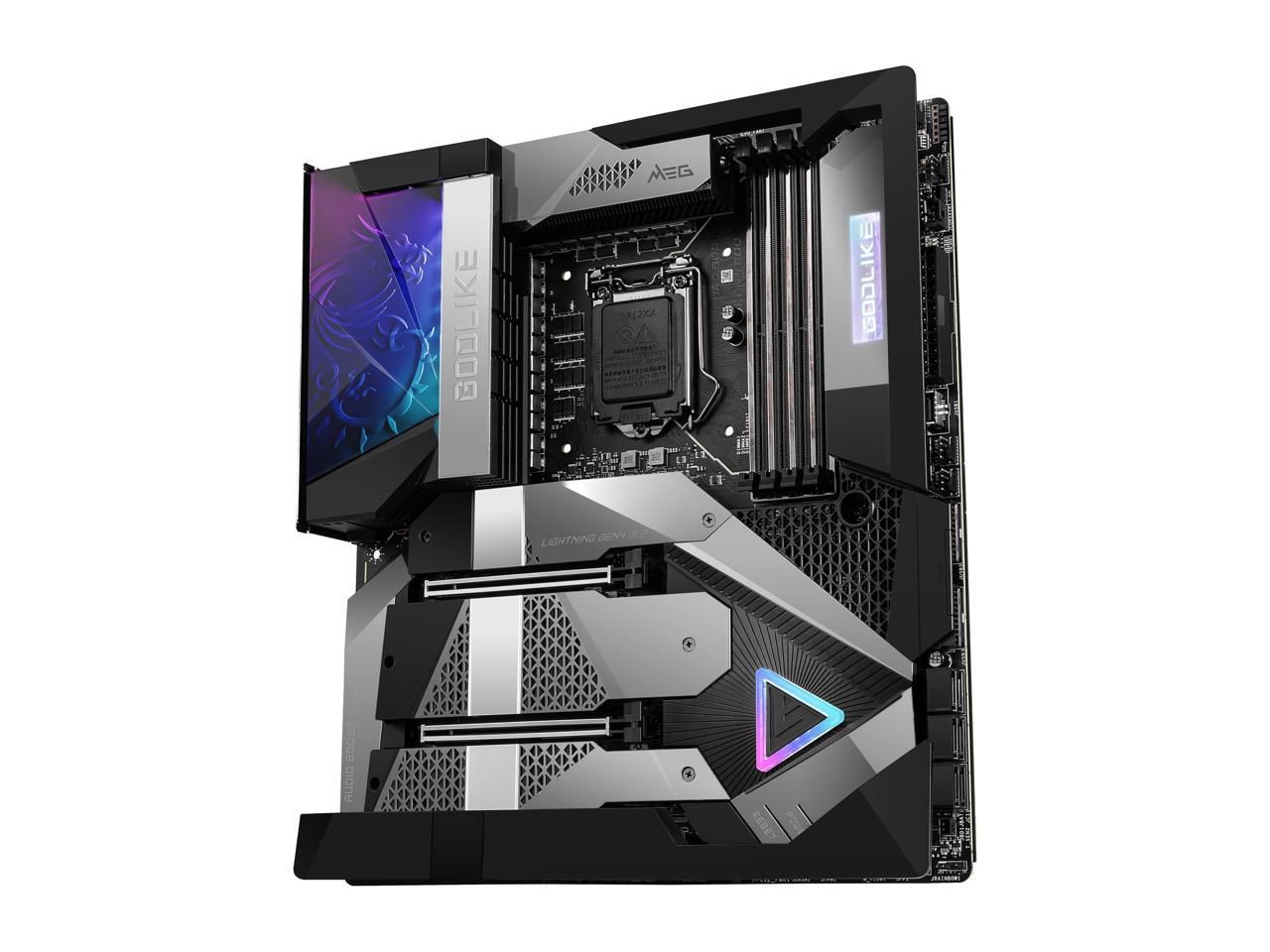

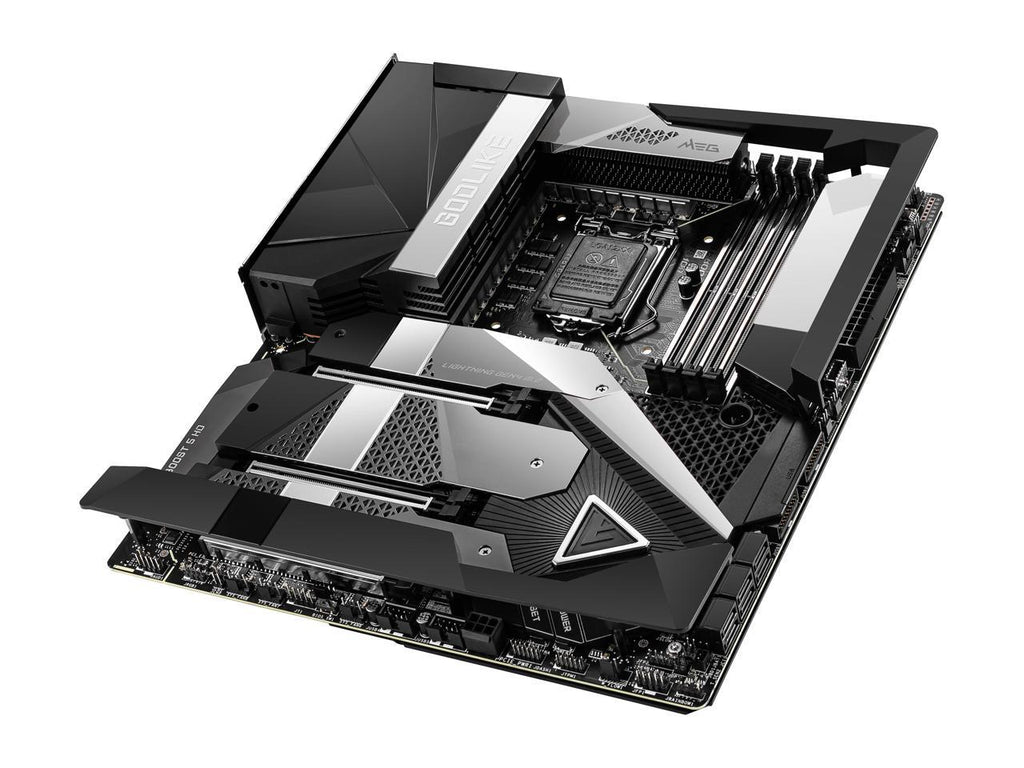

FULL ARMOR DESIGN
MEG Z590 GODLIKE features armor plating that covers the motherboard and hides cables.

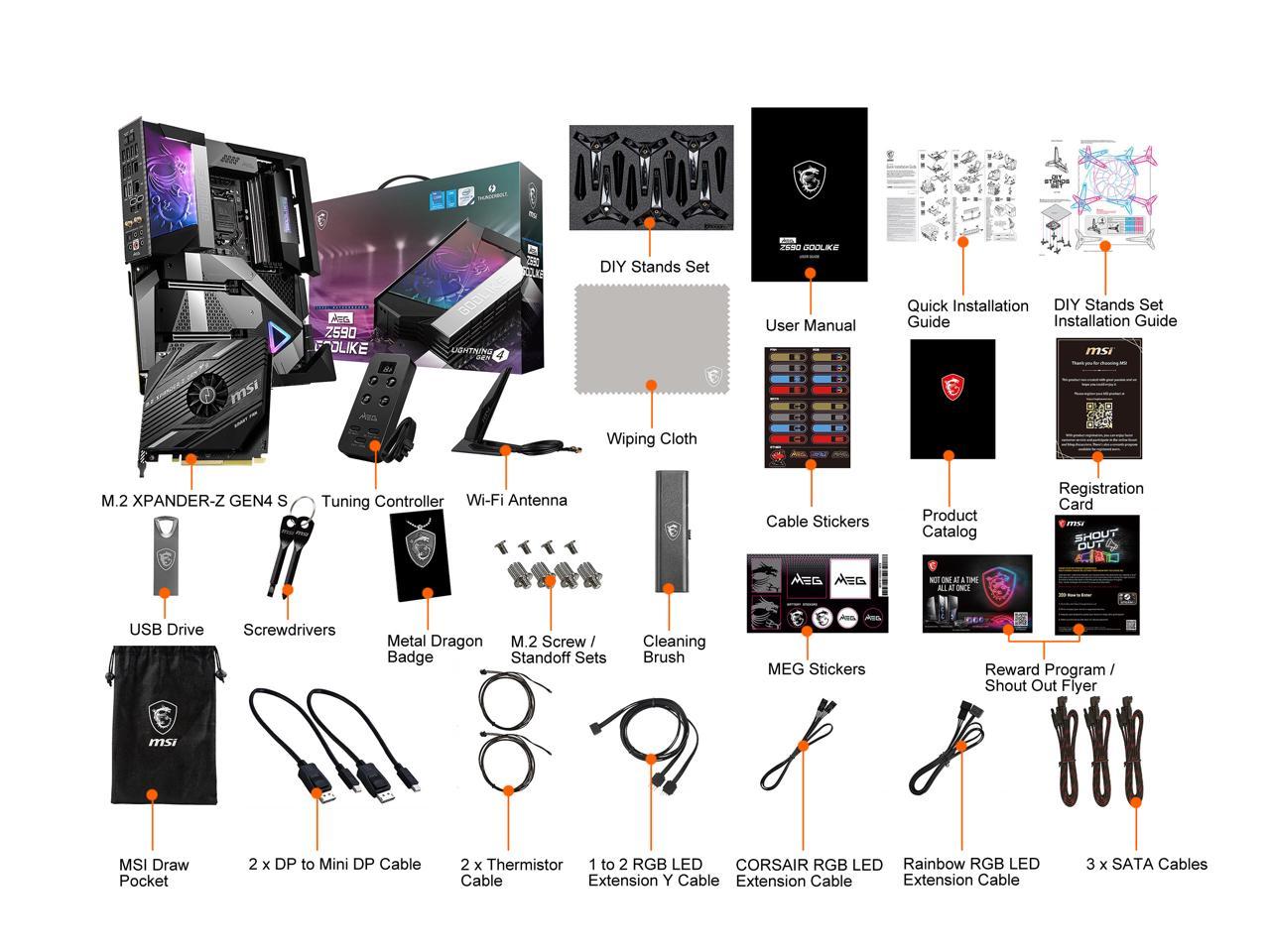

EXCLUSIVE DIY GADGETS
GODLIKE is designed for extreme power users. Included are DIY Stands Set for a new way to assemble a PC and the Tuning Controller for fine-tuning overclocking parameters in your hand.
DYNAMIC DASHBOARD II
GODLIKE features a dynamic OLED screen panel that can display the status of the GODLIKE motherboard – view a hardware monitor, read debug codes, and find other useful information. Furthermore, you can customize the display with GIF animations.
LIGHTNING GEN 4 SOLUTION
Strike fast with MSI Lightning Gen 4 PCI-E. Attach ultra fast PCI-E 4.0 devices and enjoy up to 64GB/s unidirectional transfer bandwidth. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.
QUADRUPLE M.2 WITH DOUBLE SIDE M.2 SHIELD FROZR
MEG Z590 GODLIKE features four onboard M.2 connectors for high-speed SSDs. Prevent SSD thermal throttling with a double-sided sandwiching thermal design that includes a heatsink that extends across the motherboard.

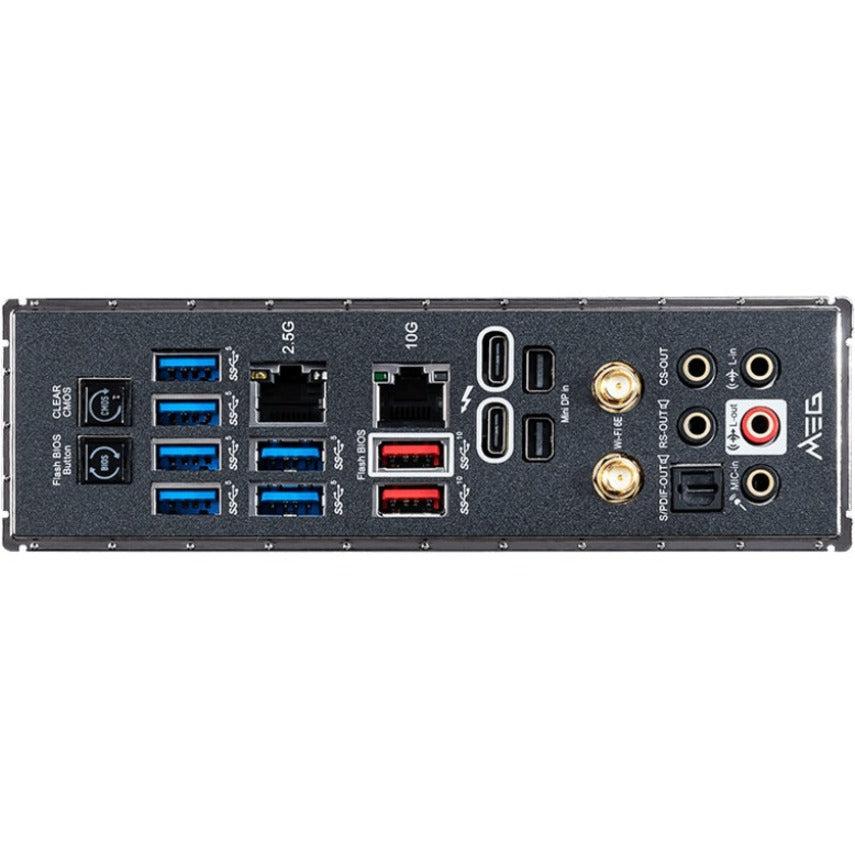

ONBOARD THUNDERBOLT 4 PORTS
Two Thunderbolt 4 Type-C ports on GODLIKE each deliver unprecedented interface bandwidth speeds up to 40Gbp and support for up to six daisy-chained devices. Additionally, built in DisplayPort 1.4 output allows for compatible display devices to be attached.
- Maximum 8K display support
- Daisy Chain support
- Multi-Port Accessory Architecture
WI-FI 6E & BLUETOOTH
Connect to a high-speed Wi-Fi network with onboard Wi-Fi 6E. OFDMA and two-way MU-MIMO technology optimize data transmission and deliver speeds up to 2.4Gbps.
ONBOARD 10G SUPER LAN
Rush enemies on the battlefield with MSI LAN Manager. Onboard 10G Super LAN and 2.5G LAN deliver responsive online experiences without lag. Work faster to play sooner with increased bandwidth to quickly transfer 4K video, raw images, and other large files.
UNMATCHED MEMORY PERFORMANCE
MSI takes memory stability and performance to the extreme. The memory circuit layout has been optimized for reliability and tested extensively in partnership with major memory manufacturers for compatibility.
CUSTOMIZE YOUR GAMING RIG
Personalize your PC with RGB LED lighting capable of 16.8 million colors with dynamic effects through the Mystic Light APP.
AMPLIFY YOUR EXPERIENCE WITH AUDIO BOOST 5 HD
Like a dedicated sound card, Audio Boost 5 HD offers a premium audio processor, ESS audio DAC, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by ALC 4082 audio processor, this motherboards supports 120dB SNR, 32-bit/384kHz, delivers game-changing studio grade sound.
MULTIPLE GPU SUPPORT AND STEEL ARMOR
MEG Z590 GODLIKE supports both NVIDIA SLI and AMD CrossFire multi GPU technologies. MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage counts, Steel Armor shields the point of contact from electromagnetic interference.
General Information
| Manufacturer | MSI |
|---|---|
| Manufacturer Part Number | MEG Z590 GODLIKE |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Line | MEG |
| Product Model | Z590 GODLIKE |
| Product Name | MEG Z590 GODLIKE Desktop Motherboard |
| Product Type | Desktop Motherboard |
| UPC | 824142243114 |
| Chipset Manufacturer | Intel |
|---|
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
|---|---|
| Bluetooth | Yes |
| Total Number of USB Ports | 8 |
|---|---|
| Number of USB 3.2 Gen 1 Ports | 6 |
| Width | 12" |
|---|---|
| Depth | 10.9" |
