Description
- Intel Z590
- Supports 11th / 10th Gen Intel Core processors
- Supports Intel Pentium Gold / Celeron processors
- DDR4 1R 3200 / 2933 / 2666 / 2133 for 11th Gen Intel CPU (by JEDEC & POR)
- DDR4 1R 2933 / 2666 / 2133 for 10th Gen Intel CPU (by JEDEC & POR)
- Max overclocking frequency:
- 1DPC 1R Max speed up to 5600
- 1DPC 2R Max speed up to 4800+
- 2DPC 1R Max speed up to 4400+
- 2DPC 2R Max speed up to 4000+

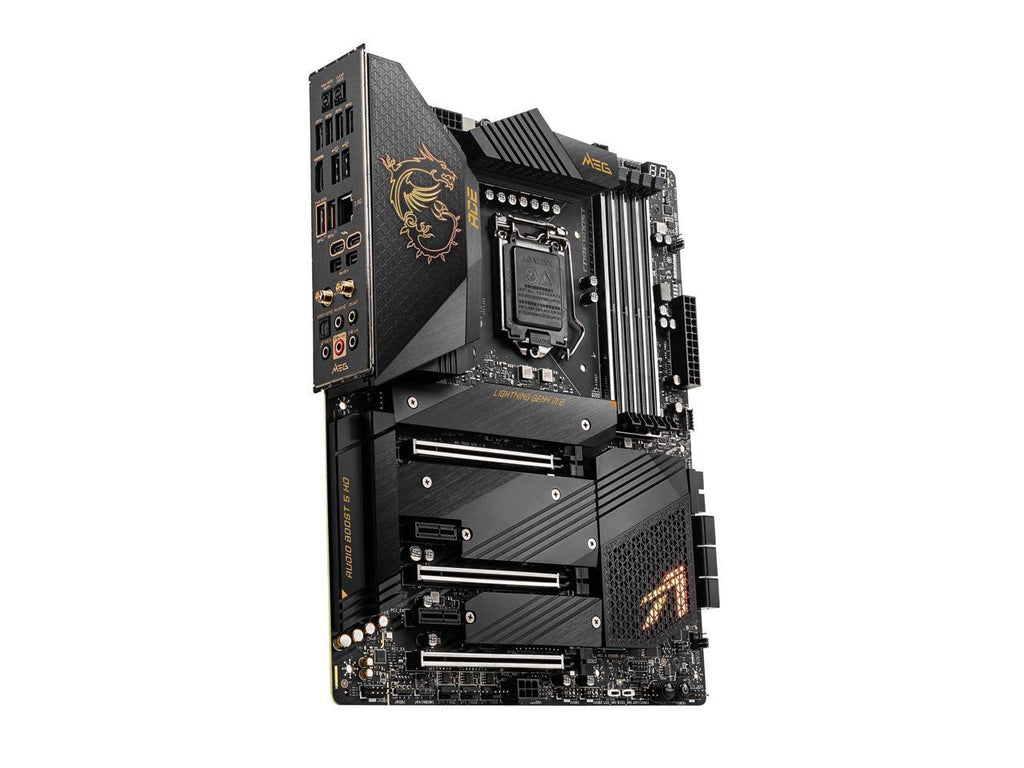

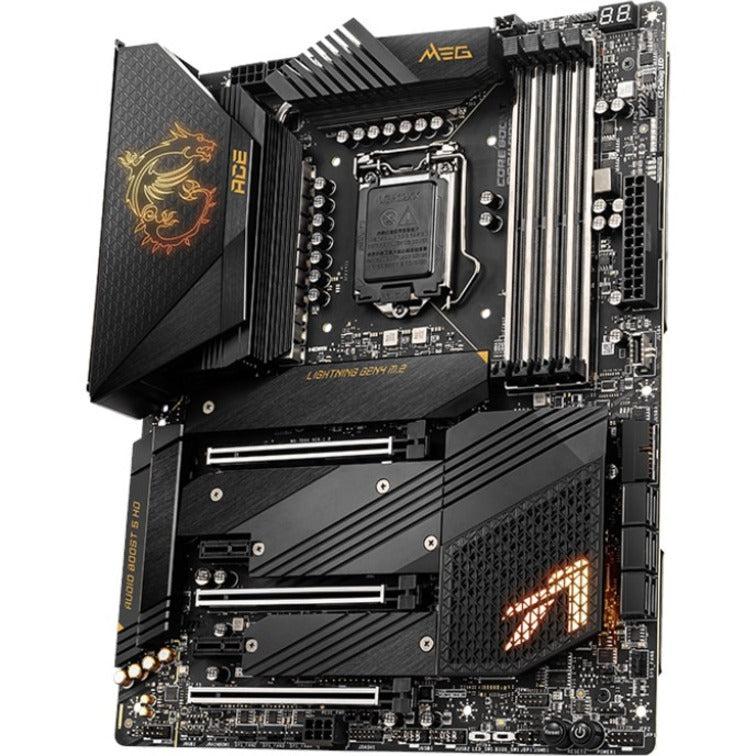

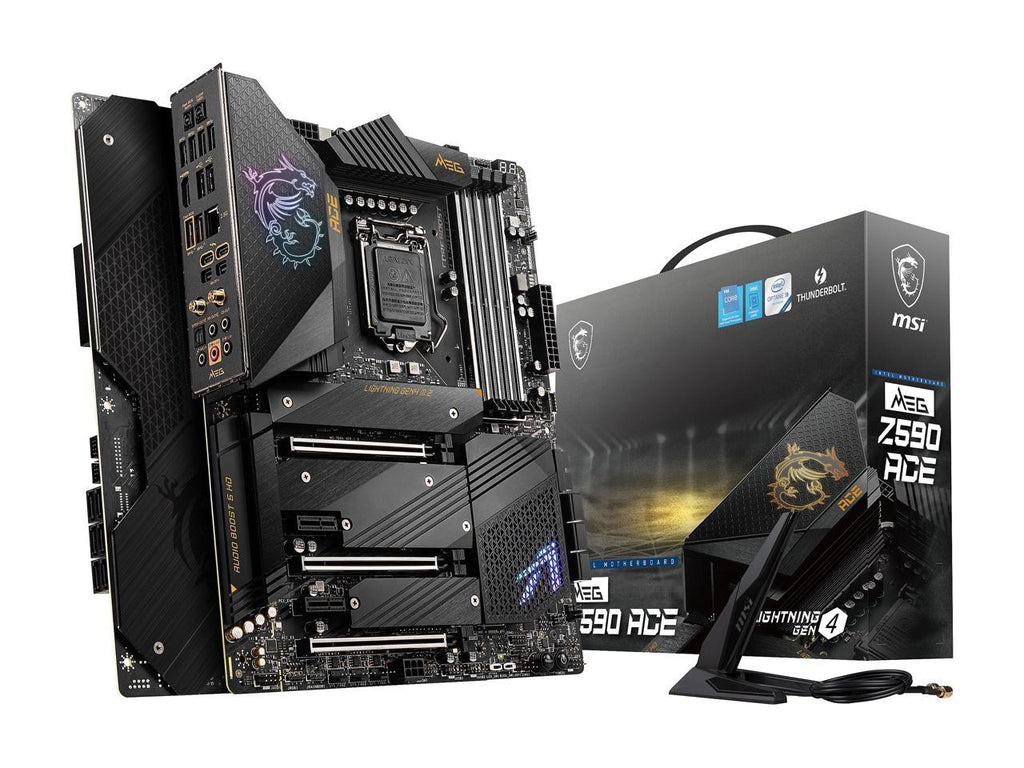

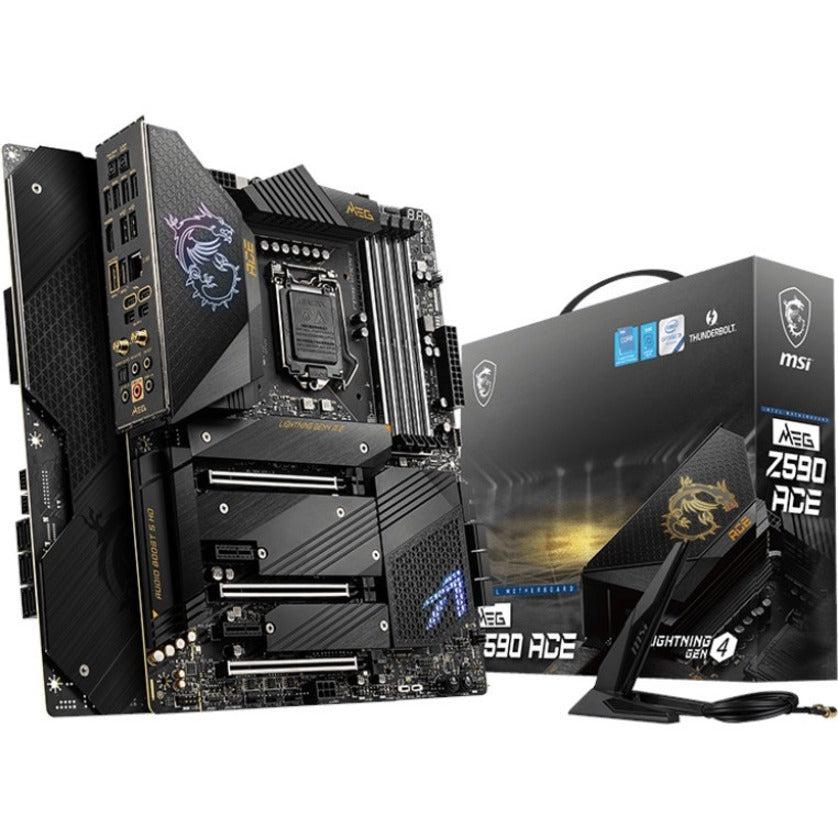

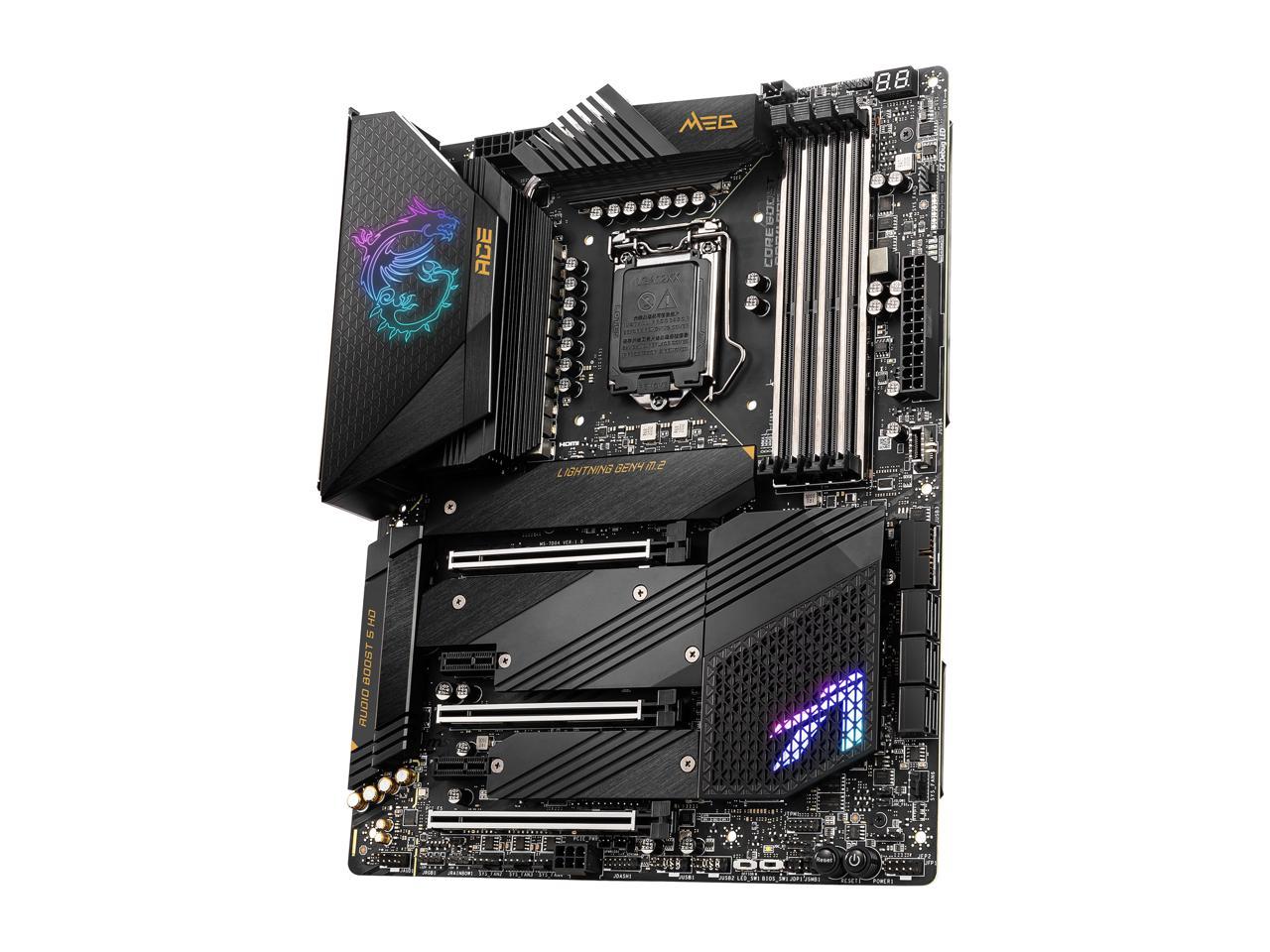

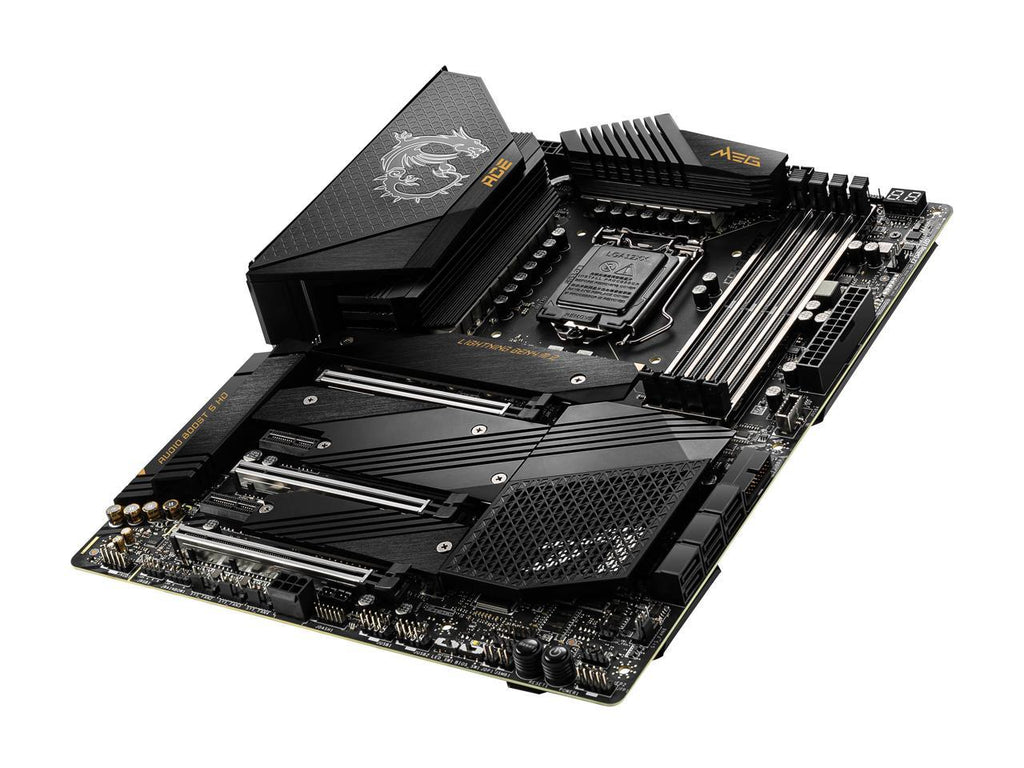

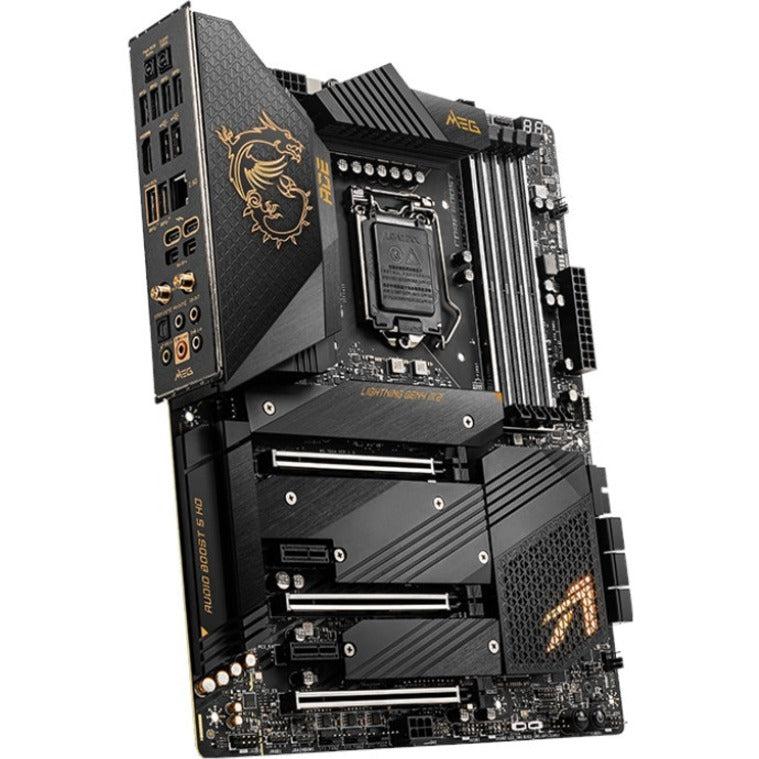

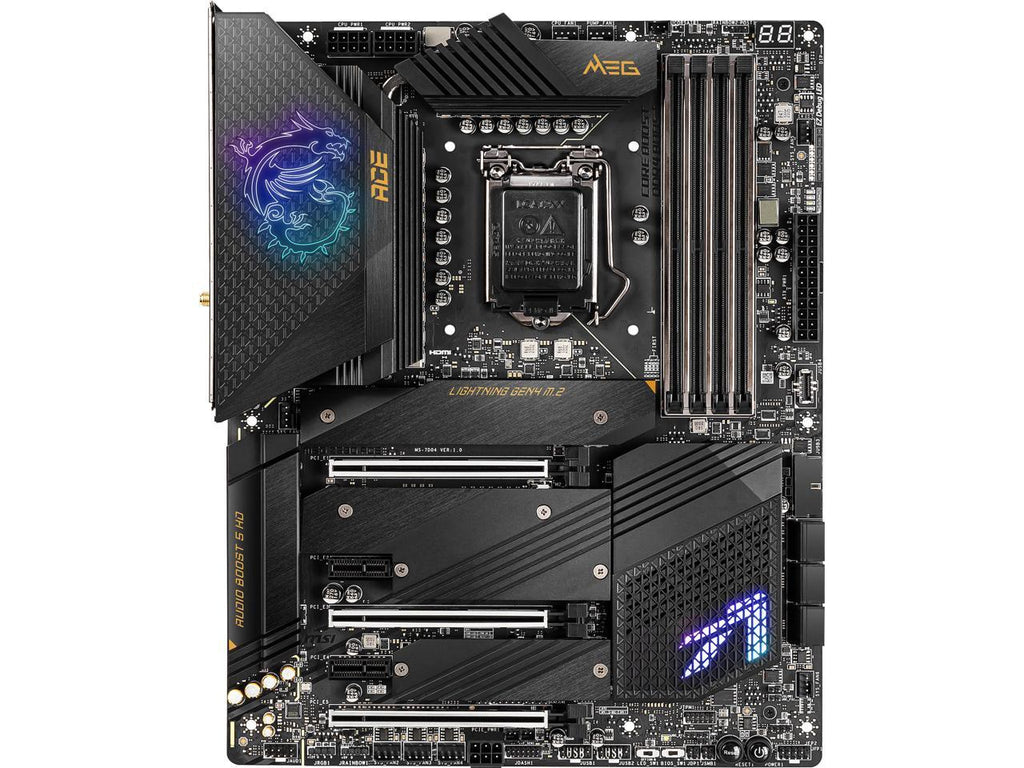

MEG Z590 ACE

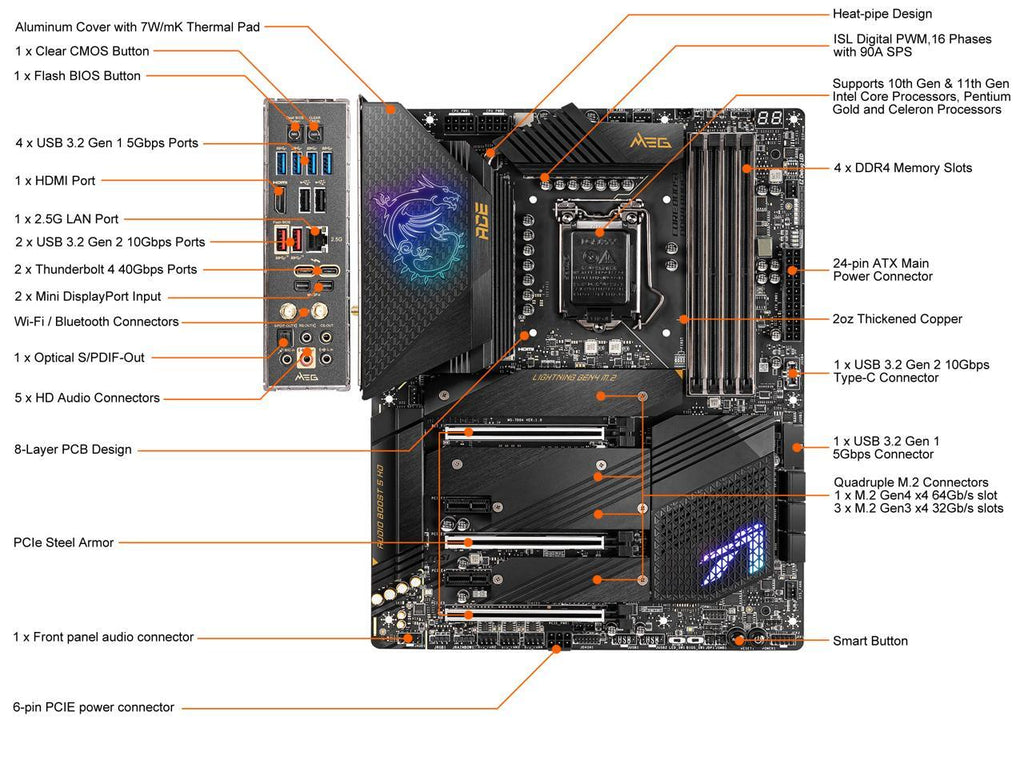

OUTSTANDING COOLING SOLUTION
Aluminum Cover with 7W/mK Thermal Pad
A full aluminum IO cover and extended heatsink design provides large heat dissipation surface.
M.2 Shield Frozr
Sustain maximum high-speed M.2 SSD data transfer with M.2 SHIELD FROZR and prevent SSD thermal throttling.

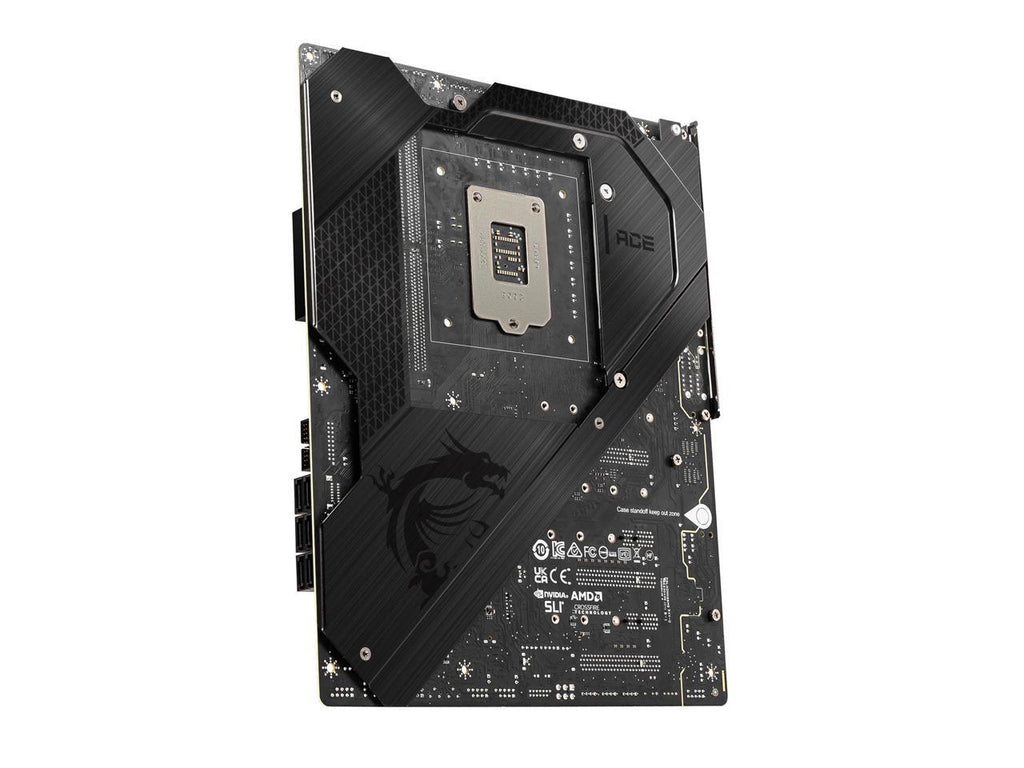

Aluminum Backplate
The rigid aluminum backplate has dedicated thermal pads for additional MOSFET cooling.
Heat-pipe Design
Connecting two MOS heatsinks to enlarge the heat dissipation surface.
MEG Z590 ACE
UNLIMITED CONNECTIVITY
Dual Thunderbolt 4 ports
Brings Thunderbolt to USB-C with true 40 Gb/s speeds, 8K display support, Daisy-Chaining, and Multi-Port Accessory Architecture
Wi-Fi 6E
Featuring the latest wireless solution, delivering speeds up to 2400Mbps on the 6GHz spectrum and supports MU-MIMO and BSS color technology.
2.5G LAN
Onboard 2.5 Gigabit Ethernet LAN with gaming LAN manager.
Quadruple M.2 Connectors
Four onboard M.2 connectors with one Lightning Gen 4 connector.
MEG Z590 ACE
STABLE CORNERSTONE OF YOUR SYSTEM
8-Layer PCB Design
8 layer PCB improves signal transmission for extreme performance capabilities across the motherboard.
PCIe Steel Armor
Reinforced and shielded PCIe slots for strength and stability.
ISL Digital PWM, 16 Phases with 90A SPS
A selection of the highest quality power delivery components including IR digital power, 90A Smart Power Stages, and Titanium Choke III lets the system run reliably even under extreme conditions.
2oz Thickened Copper
An enhanced PCB material design improves heat dissipation and high-performance capabilities.
Smart Button
Reset Computer, Safe Boot, Turbo Fan, and EZ LED.
THERMAL SOLUTION FOR HIGH PERFORMANCE MULTI CORE PROCESSORS
Aluminum Cover design, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and Aluminum Backplate keep temperatures in check and let the CPU power delivery system sustain extreme performance.
EXTREME POWER DESIGN
The power delivery system on MEG Z590 ACE is built with an ISL Digital PWM, 16+2+1 phases with 90A Smart Power Stages, and dual CPU power connectors. Exclusive to MEG class models is Mirrored Power Arrangement on the Vcore phases for releasing true power.
MIRRORED POWER ARRANGEMENT
ISL Phase Controllers double the phases and monitor the dual outputs to ensure identical power delivery in each doubled phase, providing the consistent and stable power delivery.
LIGHTNING GEN 4 SOLUTION
Strike fast with MSI Lightning Gen 4 PCI-E. Attach ultra fast PCI-E 4.0 devices and enjoy up to 64GB/s unidirectional transfer bandwidth. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.
QUADRUPLE M.2 WITH SHIELD FROZR
MEG Z590 ACE features four onboard M.2 connectors with M.2 SHIELD FROZR. Prevent SSD thermal throttling with a heatsink that extends across the motherboard.
ONBOARD THUNDERBOLT 4 PORTS
Experience Thunderbolt 4 with speeds up to true 40Gbp and support for up to six daisy-chained devices.
- 8K display support
- Daisy Chain support
- Multi-Port Accessory Architecture

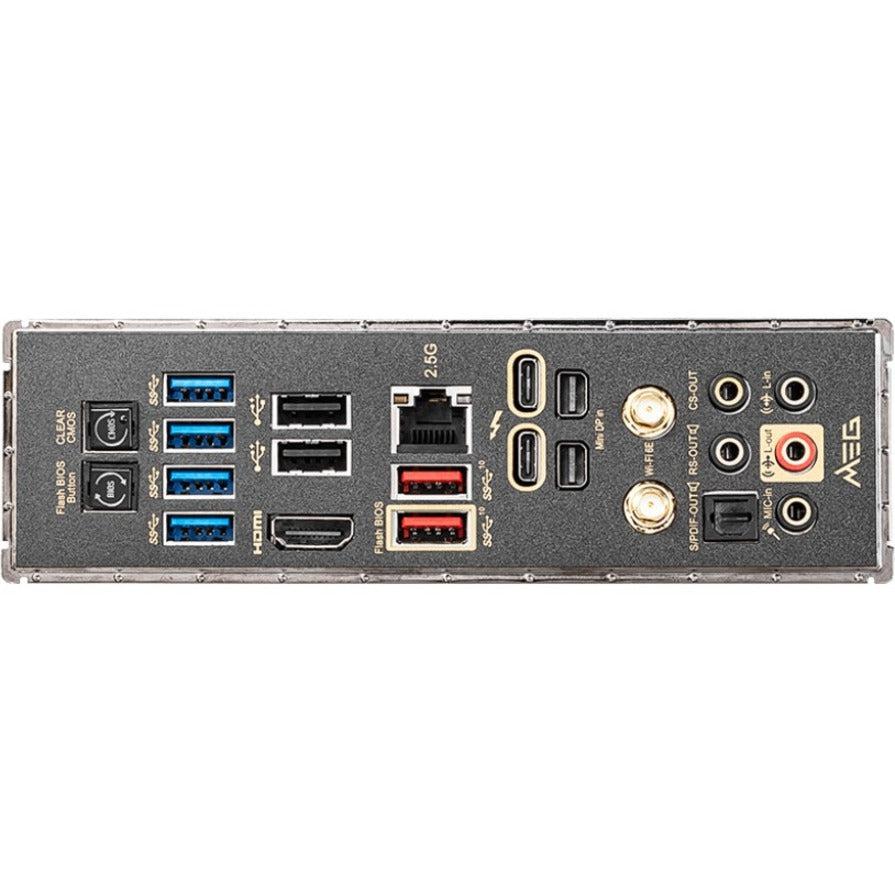

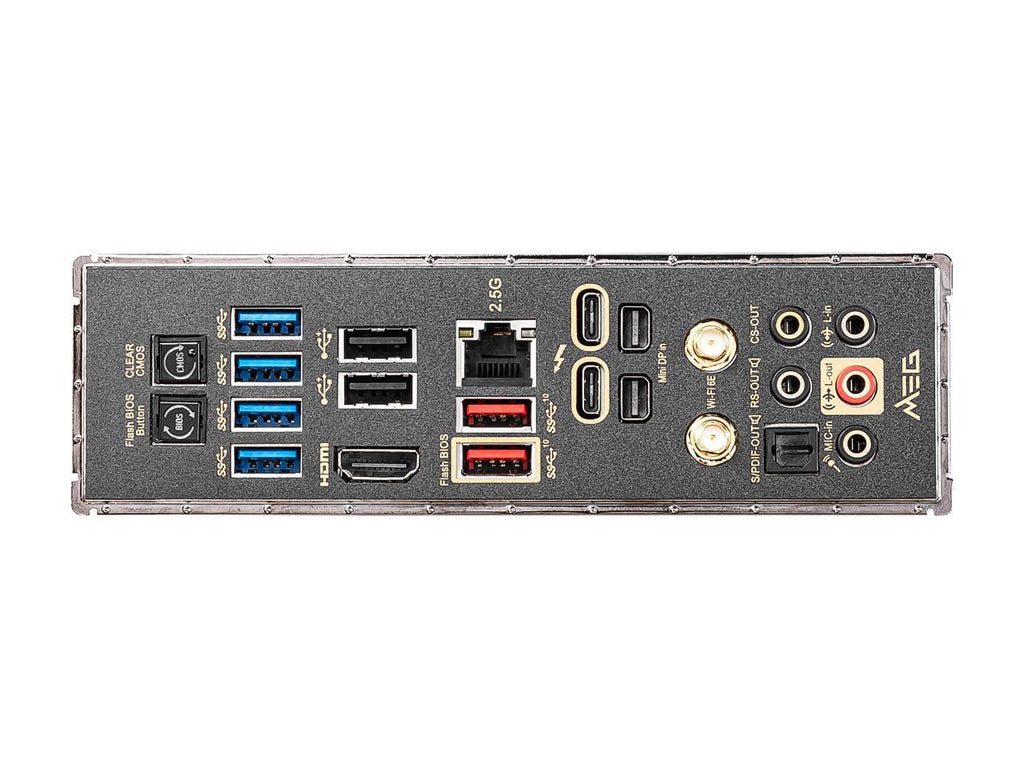

PRE-INSTALLED IO SHIELD
Pre-Installed IO Shielding makes handling the motherboard process easier and safer. The design is grounded and protects the IO ports from potential electrostatic discharge damage from the external environment.
WI-FI 6E & BLUETOOTH
Connect to a high-speed Wi-Fi network with onboard Wi-Fi 6E. OFDMA and two-way MU-MIMO technology optimize data transmission and deliver speeds up to 2.4Gbps.
FAST DATA TRANSFER WITH 2.5G LAN
MEG Z590 ACE features onboard 2.5Gbps Ethernet LAN, for gamers who demand high-bandwidth and low-latency network connectivity. Prioritize latency-sensitive applications with MSI LAN Manager for a superior online experience.
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB material design with 2oz thickened copper increases conductivity, improving heat dissipation and high-performance reliability.
UNMATCHED MEMORY PERFORMANCE
MSI takes memory stability and performance to the extreme. The memory circuit layout has been optimized for reliability and tested extensively in partnership with major memory manufacturers for compatibility.
CUSTOMIZE YOUR GAMING RIG
Personalize your PC with 16.8 million colors and 29 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light APP or a mobile device.
AMPLIFY YOUR EXPERIENCE WITH AUDIO BOOST 5 HD
Like a dedicated sound card, Audio Boost 5 HD offers a premium audio processor, ESS audio DAC, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by ALC 4082 audio processor, this motherboards supports 120dB SNR, 32-bit/384kHz, delivers game-changing studio grade sound.
MULTIPLE GPU SUPPORTS AND STEEL ARMOR
MEG Z590 ACE supports both NVIDIA SLI and AMD CrossFire multi GPU technologies. PCI-E slot placements provide optimal airflow for graphics card cooling. MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage counts, Steel Armor shields the point of contact from electromagnetic interference.
General Information
| Manufacturer | MSI |
|---|---|
| Manufacturer Part Number | MEG Z590 ACE |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Line | MEG |
| Product Model | Z590 ACE |
| Product Name | MEG Z590 ACE Desktop Motherboard |
| Product Type | Desktop Motherboard |
| UPC | 824142240984 |
| Chipset Manufacturer | Intel |
|---|
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
|---|---|
| Bluetooth | Yes |
| HDMI | Yes |
|---|---|
| Total Number of USB Ports | 8 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Width | 12" |
|---|---|
| Depth | 9.6" |
