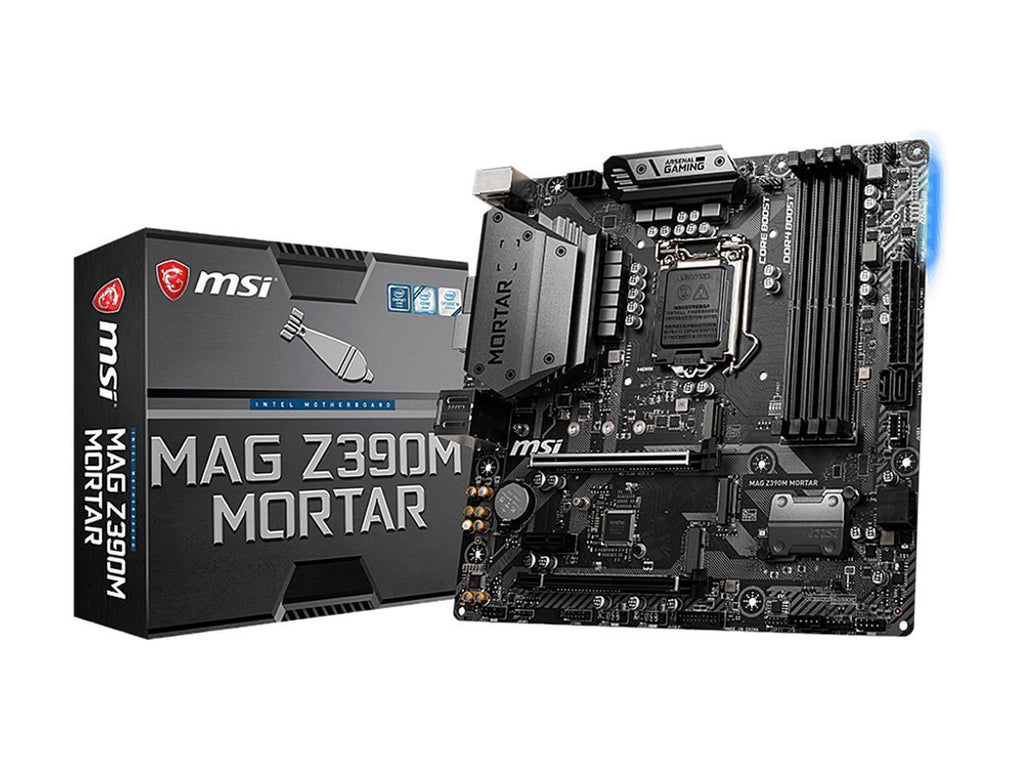

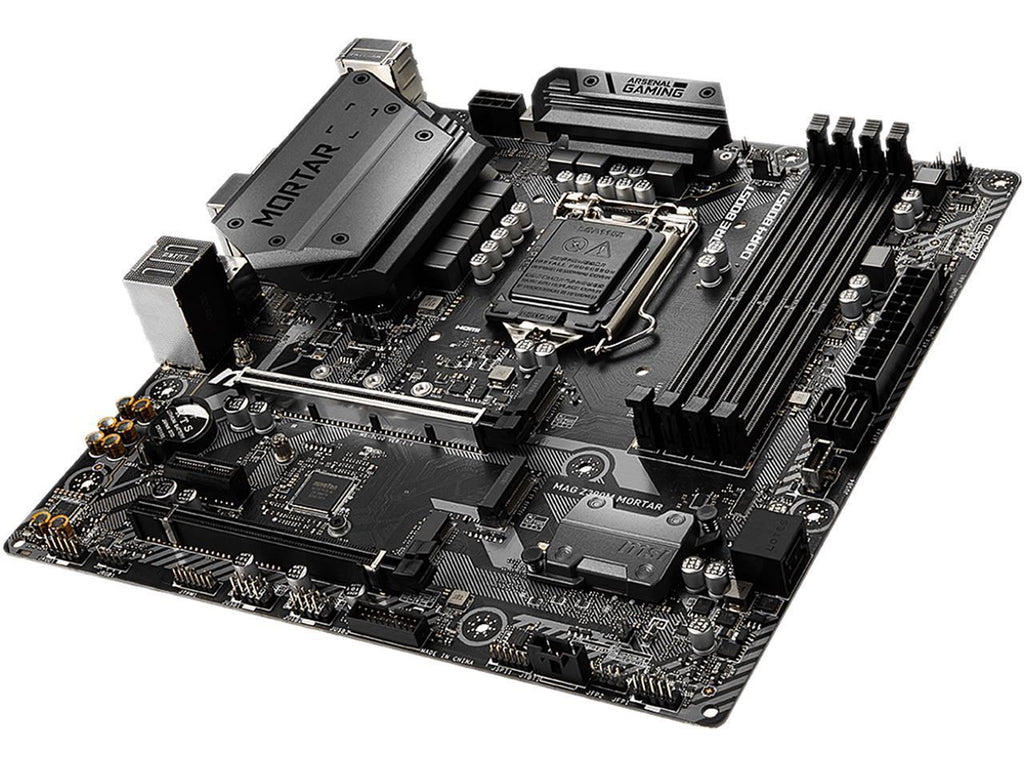

Msi Mag Z390M Mortar Lga 1151 (300 Series) Intel Z390 Hdmi Sata 6Gb/S Usb 3.1 Micro Atx Intel Motherboard

Description :

• Intel Z390
• Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
• * Not backward compatible with older generation of LGA 1151 CPUs
• DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133

Model Brand MSI Model MAG Z390M MORTAR Supported CPU CPU Socket Type LGA 1151 (300 Series) CPU Type Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket * Not backward compatible with older generation of LGA 1151 CPUs Chipsets Chipset Intel Z390 Onboard Video Onboard Video Chipset Supported only by
CPU with integrated graphic: 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@24Hz 1 x DisplayPort port 1.2, supports a maximum resolution of 4096x2304@60Hz * No Display support when using the Processor model with suffix "F" Memory Number of Memory Slots 4×288pin Memory Standard DDR4 4400 (OC) / 4300 (OC) / 4266 (OC) / 4200 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3300 (OC) / 3200 (OC) / 3000 (OC) / 2800 (OC) / 2666/ 2400/ 2133 Maximum Memory Supported 64GB Channel Supported Dual Channel Expansion Slots PCI Express 3.0 x16 2 x PCIe 3.0 x16 slots (support x16/x4 modes) PCI Express x1 1 x PCIe 3.0 x1 slots Other Slots 1 x M. 2 slot (Key E) for an Intel CNVi wireless module only Storage Devices SATA 6Gb/s 4 x SATA 6Gb/s M. 2 2 x M. 2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280/22110 storage devices* M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2280 storage devices * SATA2 port will be unavailable when installing SATA M.

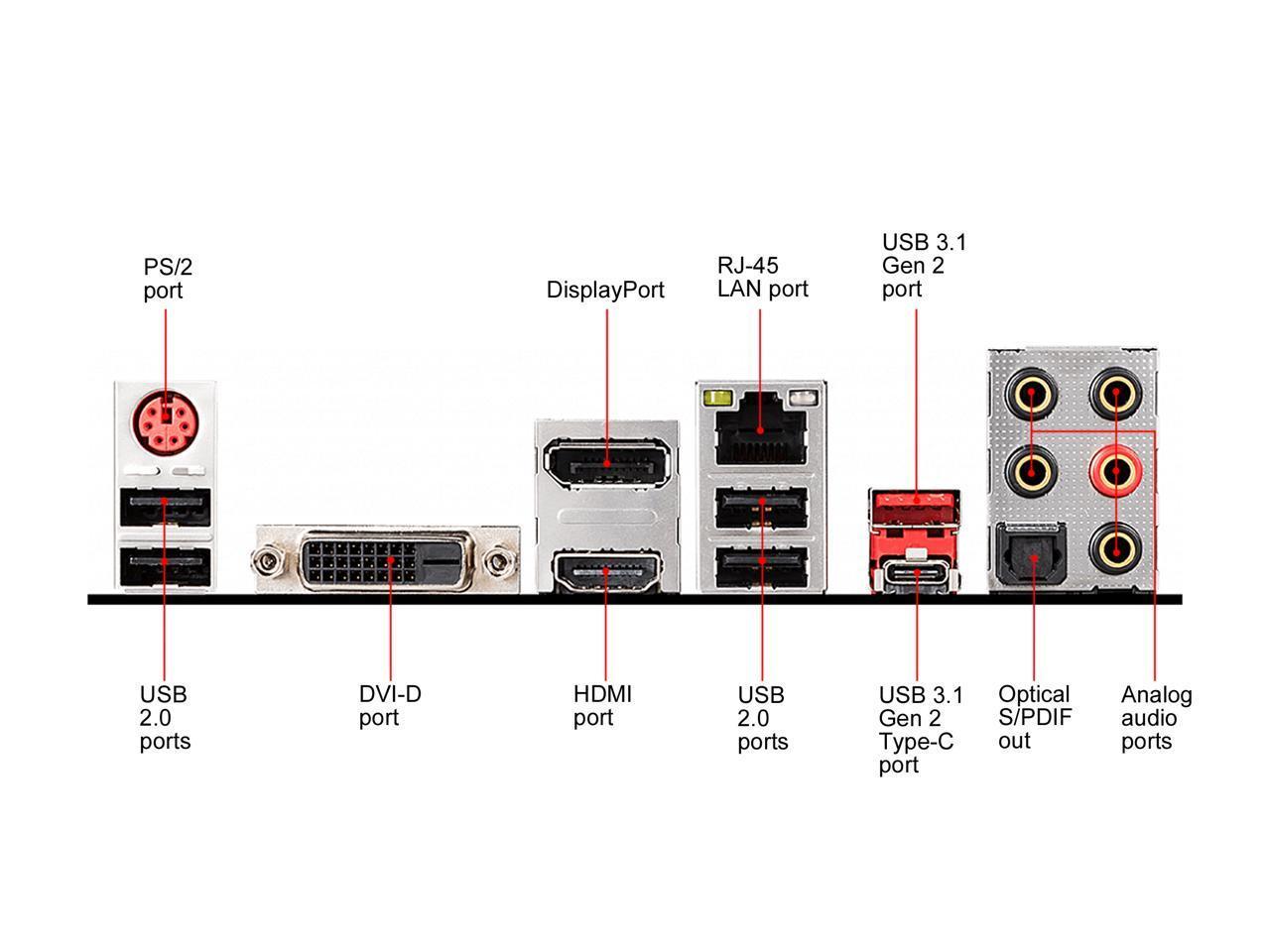

2 SSD in M2_1 slot. Intel Optane Ready Yes * Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. SATA RAID 0/1/5/10 Onboard Audio Audio Chipset Realtek ALC892 Audio Channels 7.1 -Channel High Definition Audio Supports S/PDIF output Onboard LAN LAN Chipset Intel I219-V Max LAN Speed 10/100/1000Mbps Rear Panel Ports PS/2 1 Video Ports 1 x DVI-D HDMI 1 x HDMI RJ45 1 x RJ45 DisplayPort 1 x DisplayPort USB 3.1 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (Type-A) USB 1.1 / 2.0 4 x USB 2.0 (High-speed USB) ports (Type-A) USB Type-C 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (Type-C) S/PDIF Out 1 x Optical Audio Ports 5 Ports Internal I/O Connectors Onboard USB 1 x USB 3.1 Gen2 Type-C port 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) Other Connectors 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 2 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 2 x 4-pin RGB LED connectors 1 x Thunderbolt add-on card connector 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper Physical Spec Form Factor Micro ATX LED Lighting RGB Dimensions (W x L) 9.6" x 9.6" Power Pin 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector Features
Features DIY Friendly: Keep Out Zone XL PCI-E Clip Easy Button3 EZ Debug LED Pump Fan Total Fan
Control Enhance Performance: Extended Heatsink Design 8-Pin Power Connectors Twin Turbo M. 2 Intel Turbo USB 3.1 Gen2 Core Boost DDR4 Boost Multi GPU-2-Way AMD CrossFire Technology Game Boost *BIOS Click BIOS5 XMP Hardware
