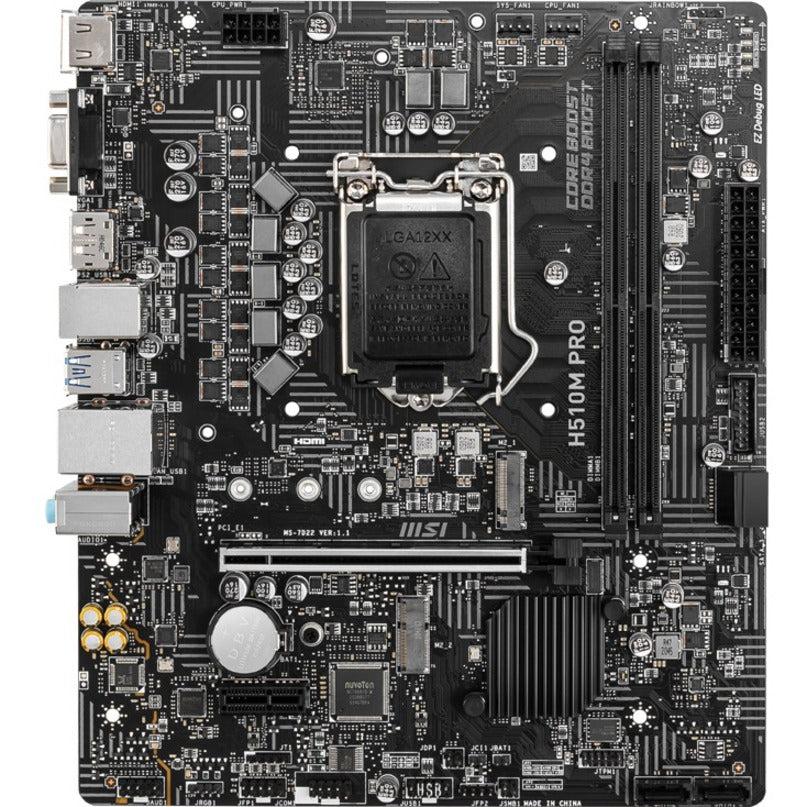

Msi H510M Pro Motherboard Intel H510 Lga 1200 Micro Atx

Description :

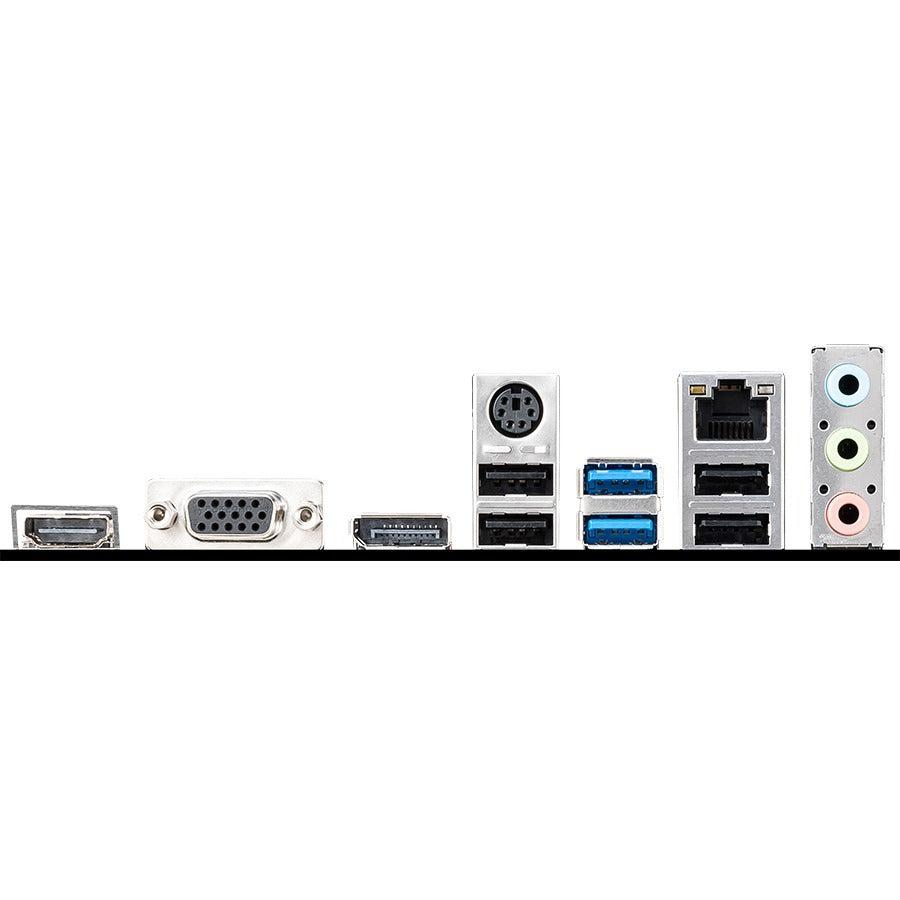

mATX, LGA 1200, Intel® H510, 2 x DDR4, PCIe x16 3.0/4.0, PCIe 3.0 x1, M.2 Key E, HDMI, VGA, DisplayPort, 1Gbps LAN controller, 4 x SATA, M.2 slot (Key M), 4 x USB 2.0, 2 x USB 3.2 Gen 1, PS/2, LAN, 23.6 x 20.2 cm

MSI H510M PRO. Processor manufacturer: Intel, Processor socket: LGA 1200, Compatible processor series: Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2,SATA, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2304 pixels. HDMI version: 2.0b, USB connector type: USB Type-A

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

EZ DEBUG LED
Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again.

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

ULTIMATE MOTHERBOARD PROTECTION
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.

LOW LATENCY GAMING LAN POWERED BY INTEL®
Stay connected with Intel® LAN, optimized for stable internet throughput ideal for championship level online plays.

OPTIMIZE NETWORK FOR LOWER LATENCY!
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.

FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

USB 3.2 GEN 1
Transfer lots of data, music and movies over USB easier. USB 3.2 Gen 1 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 Gen 1 devices.

M.2 E-KEY SLOT
Allow you to experience faster wireless network connection! The reserved M.2 E-key slot providing the flexibility to upgrade your system with a Wi-Fi module. Breaking the barrier of cables and having more flexibility.

EXTEND YOUR RGB EXPERIENCE WITH EASE
Add your color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.

EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.

CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

DEDICATED HIGH DEFINITION AUDIO PROCESSOR
Make sure you enjoy the purest sound quality in both stereo and surround sound.

HIGH QUALITY AUDIO CAPACITORS
A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.

HD AUDIO CONNECTORS
Keep you sound perfect by transmit your aduio with pure digital signal.

ISOLATED AUDIO DESIGN
Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated.

SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS
Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels.

DE-POP PROTECTION
Audio Boost protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off.

MSI CENTER
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

CLICK BIOS 5
Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!

SYSTEM SAFETY
All MSI PRO series motherboards have SECURITY function in BIOS to protect every private files for no matter business or daily use.

Secure Boot
Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid.
