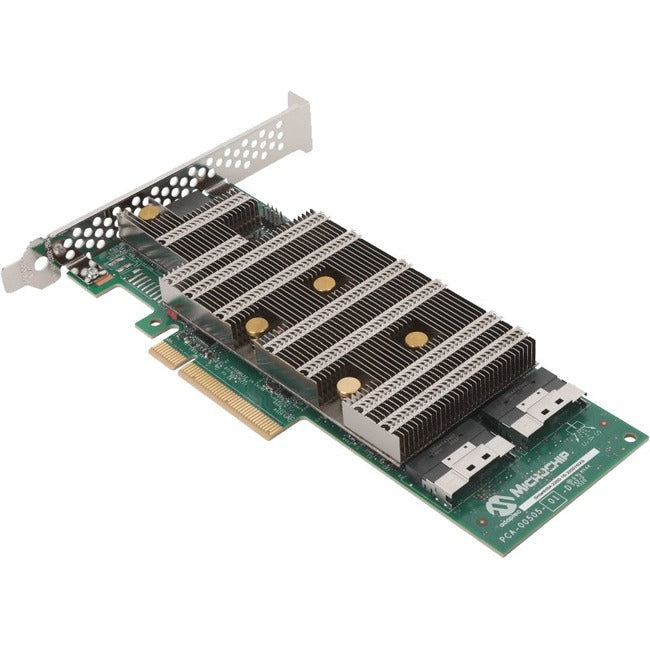

Microchip Adaptec 24G Sas/Sata/Nvme Pcie Gen 4 Host Bus Adapter 220016Ixs

Description :

Microchip Adaptec 24G SAS/SATA/NVMe PCIe Gen 4 Host Bus Adapter

The Adaptec® SmartHBA 2200-16i host bus adapter offers maximum performance with SAS/SATA/NVMe tri-mode functionality and basic RAID, enabling high-performance connectivity solutions for server OEM, storage systems, data center, and enterprise customers.

Built on Microchip's proven 5th generation SmartIOC 2200 storage controller, the SmartHBA 2200-16i supports a x8 PCIe Gen 4 host interface with16 media facing port variants for internal Tri-mode connectivity. New technologies available with the SmartHBA 2200 family includes DirectPath, which integrates a PCIe switch for the industry's lowest latency and highest bandwidth NVMe solution and Microchip's Dynamic Channel Multiplexing (DCM) technology that aggregates expander attached SAS or SATA hard drives onto 24G SAS infrastructure with near 100% link efficiency for unparalleled through-put. Native HBA modes for all media types are also supported, which offers the lowest latency for memory-based PCIe storage.

SmartHBA 2200 adapters include Microchip's Trusted Platform support which delivers a new level of compute and supply chain security based on a hardware root of trust that is aligned with the Open Compute Security Project, and support Self-Encrypting Drive (SED) management software.

The SmartHBA 2200 supports both Intel® Virtual Pin Port (VPP) for intelligent backplane management and SFF's Universal Backplane Management (UBM) standards to simplify integration and enhance product flexibility for system integrators. Also supported are industry leading storage management including standards-based Platform Level Data Model (PLDM)/Redfish® Device Enablement (RDE) to simplify integration and and Microchip's ChipLink Diagnostic Tool with signal integrity analysis and context sensitive documentation to accelerate time to market.

Product Type: SAS Controller
Product Series: 2200
Brand Name: Microchip Adaptec
Form Factor: Plug-in Card
Length: 6.6"
Manufacturer: Microchip Technology Inc.
Product Model: 2200-16i
Product Name: 24G SAS/SATA/NVMe PCIe Gen 4 Host Bus Adapter
Product Line: SmartHBA
Manufacturer Part Number: 220016IXS
Manufacturer Website Address: http://www.microchip.com
Packaged Quantity: 1
