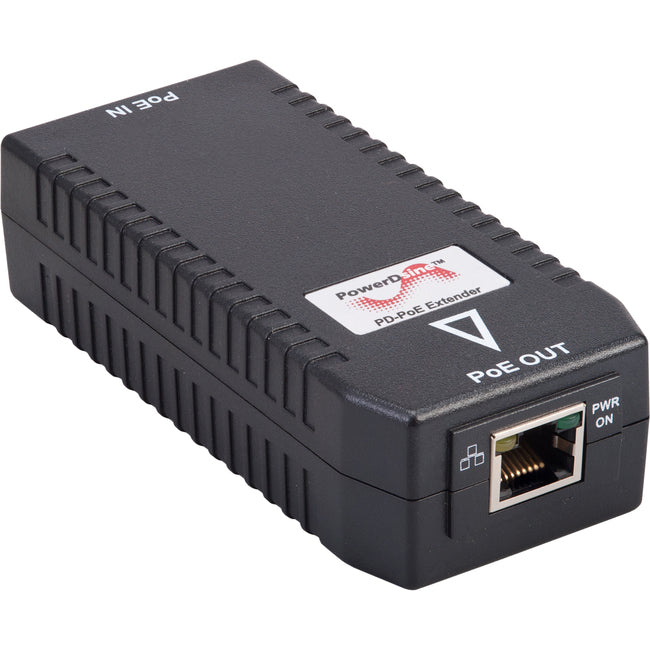

Microchip 1-Port, Extends Poe Range By Additional 100M, 802.3Af /802.3At Output Power

Description :

Microchip 1-Port, Extends PoE Range by Additional 100m, 802.3af /802.3at Output Power

With the PoE-extender, you can easily improve the range and placement of your wireless and surveillance networks and therefore the strength of your networks. PD-POE-Extender is a cost-effective way to extend the Ethernet network range beyond 100m, the PoE-extender will deliver both data and power to network devices up to 200m while complying with IEEE PoE and data standards. The PoE-extender has both a PD and a PSE chip inside so both the power and the data may be reliably transmitted beyond 100m. The extender acts as a pass-through with data-repeating capabilities. It can be cascaded to reach up to 500m from the closest datacenter or network closet so you can easily install WLAN APs, IP cameras and access controllers where you need them.

Additional Features

• Number of ports: 1
• PoE output: 30W
• Data rates: 10/100/1000 Mbps
• Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE
• EMI: FCC Part 15, Class B, EN 55022 Class B (emissions), EN 55024 (immunity), VCCI
• Safety: UL/cUL Per EN 60950, GS Mark Per EN 60950

Product Type: Network Extender
Environmentally Friendly: Yes
Environmental Certification: WEEE
Transmitter Weight (Approximate): 3.53 oz
Country Of Origin: Philippines
Certifications & Standards:

• UL/cUL Per EN 60950


• GS Mark Per EN 60950


• FCC Part 15, Class B


• EN 55022 Class B (Emissions)


• EN 55024 (Immunity)


• VCCI


• IEEE802.3at (PoE)


• CE

Brand Name: Microchip
Manufacturer: Microchip Technology Inc.
Product Model: PD-PoE-Extender
Product Name: Extends PoE Network Range Up To 500 meters
Product Line: PowerDsine
Manufacturer Part Number: PD-PoE-Extender
Manufacturer Website Address: http://www.microchip.com
Packaged Quantity: 1
Additional Information:

• Extends Power over Ethernet Installations to 200 Meters


• Connectors: Shielded RJ-45 female socket


• Pass Through Data Rates: 10/100/1000 Mbps


• Provides 802.3af power levels when powered by any 802.3at source


• Provides 802.3at power levels when powered by PowerDsine 95xx Midspans


• Extenders can be cascaded to reach up to 500m


• Cost effective installation - no need for local power


• Plug and play installation - no configuration needed
