Mellanox 200Gbe To 4X50Gbe (Qsfp56 To 4Xsfp56) Direct Attach Copper Splitter Cable Mcp7H70-V02Ar26

Description :

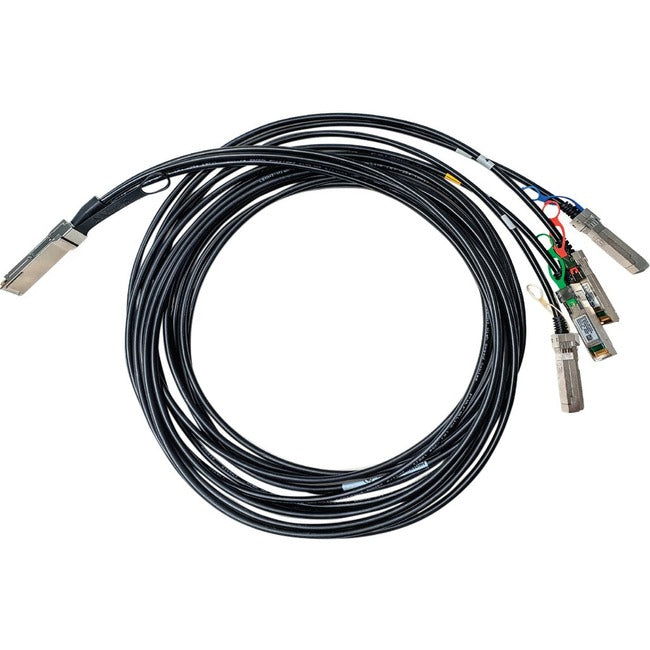

Mellanox 200GbE to 4x50GbE (QSFP56 to 4xSFP56) Direct Attach Copper Splitter Cable
Mellanox®MCP7H70-V0xxRyy DAC splitter cables are a high speed, cost-effective 200GbE to 4x50GbE Ethernet connectivity solution, designed to meet the growing needs for higher bandwidth in data centers.

MCP7H70-V0xxRyy cables provide connectivity between systems with a QSFP56 port on one side and up to four different SFP56 ports on the other side. The cable connects data signals from each of the four copper pairs on the QSFP56 end to the single pair of each of the SFP56 ends. Each QSFP56/SFP56 port comprises an EEPROM providing product information, which can be read by the host system.

Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.

• 200GbE to 4x50GbE data rate


• IEEE 802.3cd PAM4 200GAUI-4,100GAUI-2 and 50GAUI-1 compliant


• SFF-8636 compliant I2C management interface


• Operating case temperature 0-70°C


• Single 3.3V supply voltage


• BER (Bit Error Rate) better than 1E-15 with Mellanox end-to-end interconnect


• Hot pluggable


• RoHS compliant


• Low Smoke Zero Halogen (LSZH)jacket


• LF (Lead Free) HF (Halogen Free) PCB

Product Type: Network Cable
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Color: Black
Product Material: Copper
Brand Name: Mellanox
Manufacturer: NVIDIA Corporation
Product Name: 200GbE to 4x50GbE (QSFP56 to 4xSFP56) Direct Attach Copper Splitter Cable
Product Line: LinkX
Manufacturer Part Number: MCP7H70-V02AR26
Manufacturer Website Address: http://www.nvidia.com
Limited Warranty: 1 Year
