Description :
Black Box High Density LMC5203A Transceiver/Media Converter

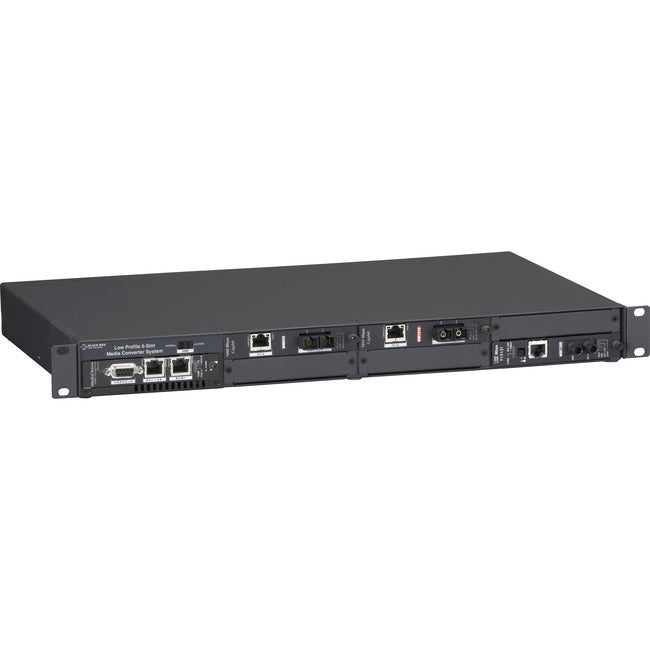

Thermostatically-controlled cooling fans keep chassis from becoming overheated and causing downtime.We also offer other managed models: a 3-slot desktop chassis and a 20-slot 3U-high rackmount chassis.For unmanaged remote office links, order compact 1-slot or 2-slot desktop chassis models. This Black Box 6-Slot High-Density Media Converter System II Chassis makes it easy to consolidate multiple media converters in a single platform at a central point in your application.
Add the SNMP Management Module for full chassis and module control. This chassis becomes fully manageable with the optional SNMP Management Module. It features a 10BASE-T/100BASE-TX twisted-pair port for connection to your LAN and is used in the chassis to enable both module and chassis management. Once connected to your network, a chassis can even be assigned its own IP address. The software included with the SNMP Management Module enables you to configure and manage your chassis and its connections. Through the user-friendly IView interface, you can manage the chassis' modules and any intelligent networking devices on virtually any 32-bit Windows system. The GUI features device control panels, gives you detailed conversion port information, presents statistical information as charts, and more! And because the management module includes SNMP MIBs for support of industry-standard SNMP, you can monitor chassis temperature and voltage levels, diagnose network problems, and set up SNMP traps to alert you to potential network failures to lessen any potential downtime. You can even set a SNMP write-lock switch to protect the configurations of your installed modules from being accidentally overwritten. For out-of-band management, connect a console to the SNMP module's RS-232 port. The managed system uses DCHP, includes a TFTP client, and supports Telnet. To keep your chassis running in mission-critical applications, order redundant AC or DC power supplies.
Order unmanaged chassis for remote sites. We also offer compact desktop chassis models that you can use as remote units that communicate with the larger High-Density Media Converter System II Chassis located at a central office. Available with 1- or 2 slots, the desktop chassis can also be used in pairs if you don't require any SNMP management capabilities in your application. The 1-slot models hold one module and are powered by either an autosensing 115-240-VAC power supply or a combination AC/DC power supply that supports operation in environments with extremes in temperature. The AC/DC model also has a clip for mounting it on a DIN rail. The 2-slot models feature a small footprint, house two converter modules, and come with an AC or a DC power supply. To save desktop space, use the optional brackets to mount your chassis in a rack or on a wall. You can also order a Rackmount Shelf, which enables you to install up to three unmanaged chassis in a standard rack. For assistance specifying your complete High-Density Media Converter System II, contact our FREE Tech Support.
- Thermostatically-controlled cooling fans keep chassis from becoming overheated and causing downtime.
- Internal 100-240VAC power supply
- Compatible with a number of modules: copper-to-fiber, fiber-to-fiber, single-strand, and others.
- Fully manageable with full platform control when used with the SNMP Management Module.
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: Black Box
Form Factor: Desktop
Manufacturer: Black Box Corporation
Product Model: LMC5203A
Product Name: High Density LMC5203A Transceiver/Media Converter
Product Line: High-Density
Manufacturer Part Number: LMC5203A
Manufacturer Website Address: http://www.blackbox.com
Limited Warranty: 6 Year
Weight (Approximate): 5 lb
