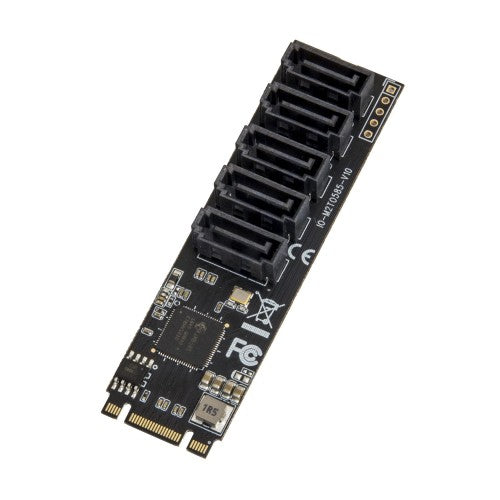

SYBA Multimedia 5 port Non-RAID SATA III 6Gbp/s to M.2 B+M Key Adapter PCI-e 3.0 x2 bandwith SI-ADA40141

Description :

SYBA Multimedia 5 port Non-RAID SATA III 6Gbp/s to M.2 B+M Key Adapter PCI-e 3.0 x2 bandwith
Using the JMB585 chipset, the SI-ADA40141 can provide M.2 (PCIe Gen3 x2 bandwidth) to 5 Port SATA 6Gb / s card solution. For the storage solution based on data transfer of multiple hard drives, the newly added FIS-based switching design can overcome the bottlenecks created by operating multiple SATA storage devices simultaneously. The data transmission rate of the JMB585 can achieve to 1700MB/s, which is the maximum transfer speed of PCIe Gen3 x2.

• Connect five SATA drives to a M.2 B+M Key Connection, providing up to 1700 MB/s speed.


• Plug and play supported, no additional software installation or setting required.


• Can support Port Multiplier that is not in a RAID configuration. Compatible with SATA hard drives and solid state drives and computer systems with SATA controllers.


• 2-Lane M.2 PCI-Express 3.0 interface (B and M Key). Complies with PCI Express Base Specification Revision 3.1a.


• This card is only design for storage use only, can not boot any OS / System drives. Backed by Syba 3 Year Hassle-free Warranty and Lifetime Customer Service.

Product Type: SATA Controller
Environmentally Friendly: Yes
Environmental Certification: WEEE
Brand Name: SYBA Multimedia
Form Factor: Plug-in Card
Manufacturer: SYBA Multimedia, Inc
Product Name: 5 port Non-RAID SATA III 6Gbp/s to M.2 B+M Key Adapter PCI-e 3.0 x2 bandwith
Manufacturer Part Number: SI-ADA40141
Manufacturer Website Address: http://www.syba.com
Packaged Quantity: 1
Platform Supported: PC
Package Contents:

• 5 Port SATA Controller to M.2 Slot
• 5 x SATA Cables
• 1 x Manaul
