Lenovo Thinksystem De2000H 10Gbase-T Hybrid Flash Array Sff

Description :

Lenovo ThinkSystem DE2000H 10GBASE-T Hybrid Flash Array SFF

Lenovo ThinkSystem DE2000H is a low-cost, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for small to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE2000H is a perfect fit for small offices and remote and branch offices of large enterprises that run a wide range of workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.

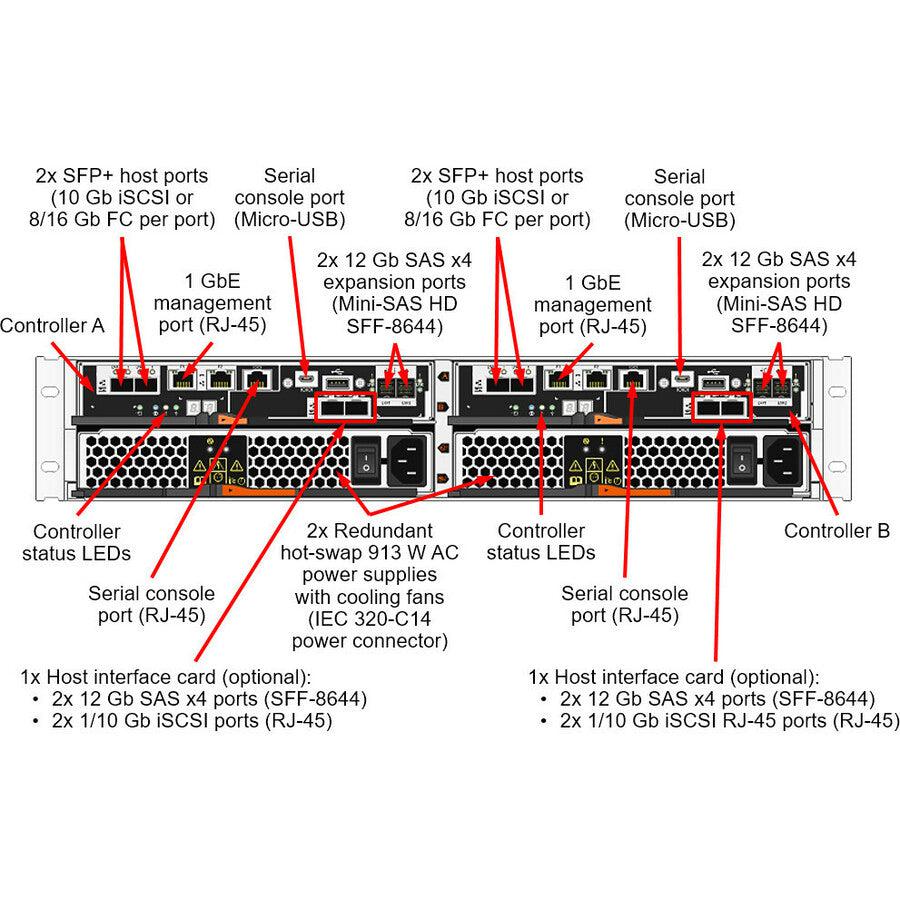

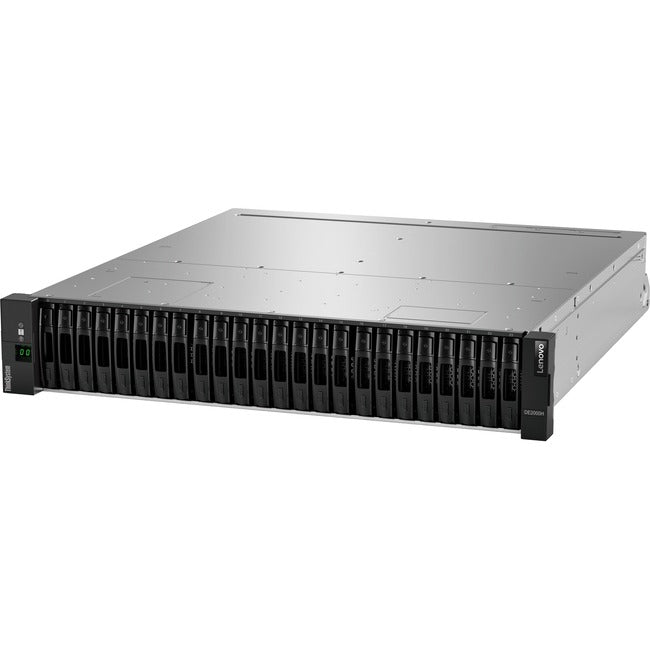

ThinkSystem DE2000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) or 12 large form-factor (3.5-inch LFF) drives (2U12 LFF) and include two controllers, each with 8 GB cache for a system total of 16 GB. Universal 10 Gb iSCSI or 8/16 Gb Fibre Channel (FC) ports provide base host connectivity, with an option for 12 Gb SAS or 1/10 Gb iSCSI RJ-45 connections with the host interface cards.

The ThinkSystem DE2000H Storage Array scales up to 96 drives with the attachment of Lenovo ThinkSystem DE120S 2U12 and DE240S 2U24 SFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).

• Low-cost, entry-level hybrid storage with dual active/active controller configurations with 8 GB cache per controller for high availability and performance.


• Improved performance and data protection with Dynamic Disk Pools (DDP) technology, as well as support for traditional RAID 0, 1, 3, 5, 6, and 10.


• Flexible host connectivity to match diverse client needs with support for 10 Gb iSCSI SFP+, 8/16 Gb FC, 12 Gb SAS, or 1/10 Gb iSCSI (RJ-45) connectivity.

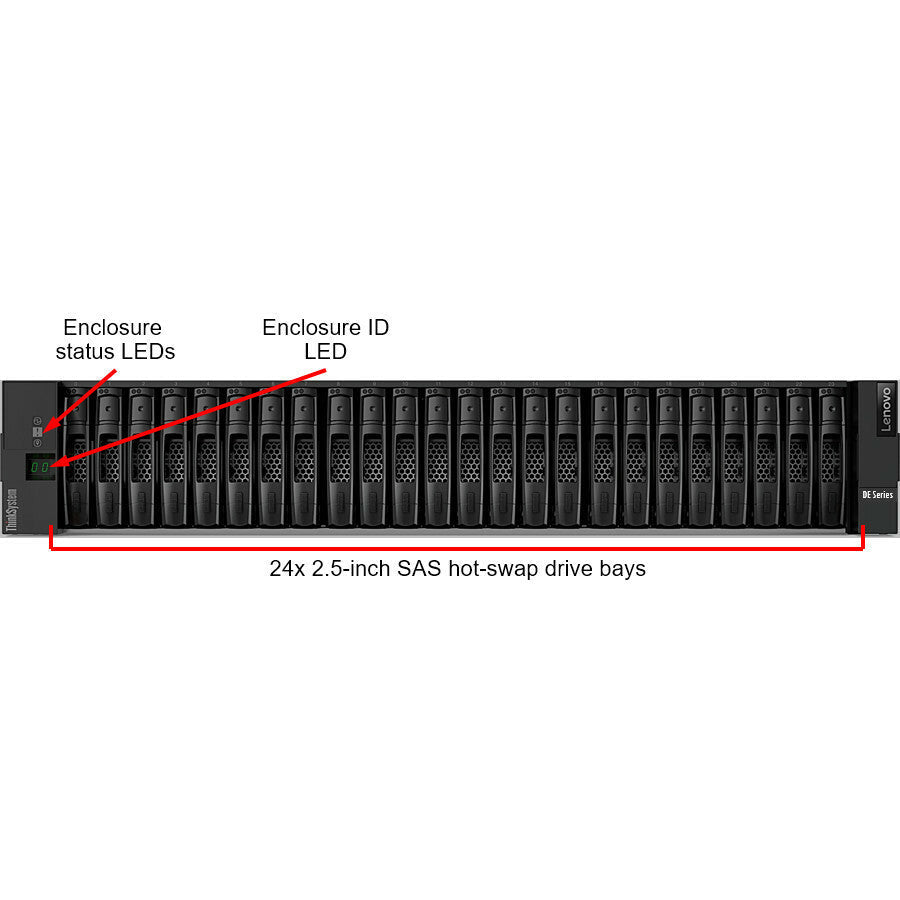

• 12 Gb SAS drive-side connectivity with support for up to 24x 2.5-inch small form factor (SFF) drives in the 2U24 SFF enclosures or up to 12x 3.5-inch large form factor (LFF) drives in the 2U12 LFF enclosures.


• Scalability to up to 96 SFF or 48 LFF drives with the attachment of up to three expansion enclosures (ThinkSystem DE240S 2U24 SFF, or DE120S 2U12 LFF, or a combination of the DE240S and DE120S) to satisfy growing needs for storage capacity and performance.


• Rich set of standard storage management functions available at no extra cost, including Dynamic Disk Pools, SSD read cache, snapshots, volume copy, and thin provisioning.


• Optional licensed functions, including higher number of snapshots for greater scalability and asynchronous mirroring for continuous data availability.


• Intuitive, web-based GUI for easy system setup and management.


• Designed for 99.999% availability with redundant hot-swap components, including controllers and I/O modules, power supplies, proactive maintenance, and non-disruptive firmware upgrades.

Product Type: SAN Storage System
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Product Series: DE
Rack Height: 2U
Brand Name: Lenovo
Form Factor: Rack-mountable
Manufacturer: Lenovo Group Limited
Product Model: DE2000H
Product Name: ThinkSystem DE2000H 10GBASE-T Hybrid Flash Array SFF
Product Line: ThinkSystem
Manufacturer Part Number: 7Y71A002WW
Manufacturer Website Address: http://www.lenovo.com/us/en/
Packaged Quantity: 1
Package Contents:

• ThinkSystem DE2000H 10GBASE-T Hybrid Flash Array SFF
• 4 x 1 m MiniSAS HD 8644/MiniSAS HD 8644 Cables
• Lenovo ThinkSystem Storage Rack Mount Kit
• Quick Installation Guide
• Electronic Publications Flyer
• 2 x Power Cables
