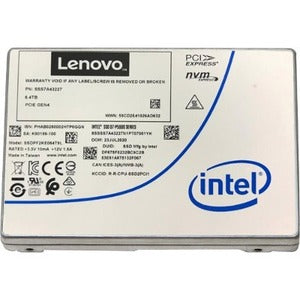

Lenovo D7-P5620 1.60 Tb Solid State Drive - 2.5" Internal - U.2 (Pci Express Nvme 4.0 X4) - Mixed Use 4Xb7A76781

Description :

Lenovo D7-P5620 1.60 TB Solid State Drive - 2.5" Internal - U.2 (PCI Express NVMe 4.0 x4) - Mixed Use

The P5620 SSDs are part of the growing family of PCIe 4.0 SSDs that match the performance of the ThinkSystem V2 family of servers. By having a Gen 4 host interface, sequential performance is doubled compared to Gen 3 SSDs. The NVMe host interface also maximizes flash storage performance and minimizes latency. The P5620 SSDs drives offer 40% and 60% improvements in latency over SAS and SATA SSDs respectively.

Lenovo Mixed Used SSDs like the P5620 SSDs are suitable for mixed read-write and general-purpose data center workloads, however their NVMe PCIe interface means the drives also offer high performance. Overall, these SSDs provide outstanding IOPS/watt and cost/IOPS for enterprise solutions.

• Based on the Solidigm D7-P5620 SSDs (formerly known as the Intel D7-P5620 SSDs)


• PCIe 4.0 connection for each NVMe drive


• Also supports PCIe 3.0 host connection for servers with first and second-generation Intel Xeon Scalable processors or with PCIe 3.0 NVMe switch adapters


• Compliant with Trusted Computing Group Opal 2.01 Security Subsystem Class cryptographic standard (TCG Opal 2.01 SSC)


• Intel 144-layer TLC 3D NAND Flash Memory


• Ultra-low I/O latency, with a read latency as low as of 9 µs and write latency as low as 12 µs


• Suitable for mixed read-write workloads


• Available in capacities up to 12.8 TB


• Variable sector size and end-to-end data-path protection


• Enhanced power-loss data protection

Product Type: Solid State Drive
Environmentally Friendly: Yes
Environmental Certification: WEEE
Product Series: D7-P5620
Brand Name: Lenovo
Drive Type: Internal
Compatibility:

ThinkSystem Servers:

• SD650 V2 (7D1M)
• SD650-N V2 (7D1N)

Form Factor: 2.5"
Manufacturer: Lenovo Group Limited
Product Name: ThinkSystem 2.5" 15mm U.2 P5620 1.6TB Mixed Use NVMe PCIe 4.0 x4 Trayless SSD
Device Supported: Server
Manufacturer Part Number: 4XB7A76781
Manufacturer Website Address: http://www.lenovo.com/us/en/
Packaged Quantity: 1
Package Contents:

• ThinkSystem 2.5" 15mm U.2 P5620 1.6TB Mixed Use NVMe PCIe 4.0 x4 Trayless SSD
• Documentation Flyer

Limited Warranty: 1 Year
Weight (Approximate): 5.15 oz
