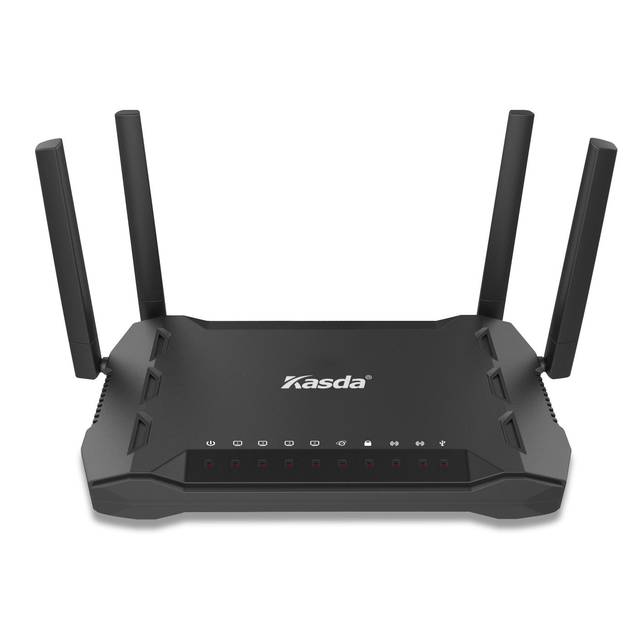

Mfr Part Number: KW6516
-
Features:
- Compliant with 802.11b/g/n/ac, wireless speed up to 1200Mbps
- Gigabit Ethernet Port - 1 Gigabit Ethernet port for WAN connection and 4 GigabitEthernet ports for wired LAN connection
- WPS Security - Offers one button security
- Multi-antenna - 4 external antennas to deliver the best wireless signal, fully expanded coverage
- Parental control - Web filtering for all your connected devices
- Advanced security - WPA/WPA2 encryption. Keep your wireless network safely connected
- QoS - Network priority can be determined
- IPv6 - Support next generation network
-
Wireless:
-
Wireless Standards: IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
-
Frequency: 2.4GHz, 5GHz
-
Wireless Speed: Up to 300Mbps for 2.4GHz and up to 900Mbps for 5GHz, totals up to 1200Mbps
-
Transmit Power: <(20dBm)
-
Wireless Security: 64/128-bit WEP, WPA-PSK/WPA2-PSK/TKIP/AES
-
Wireless Features: Enable/Disable Wireless Radio, Multi-SSID, WDS, Access Control List, Wireless Statistics
-
Guest Network: 1x 2.4GHz guest network, 1x 5GHz guest network
-
Hardware:
-
Physical Interface: 4x 10/100/1000 Mbps LAN port & 1x 10/100/1000 Mbps WAN port
-
Buttons: ON/OFF, Reset, WPS
-
LED Indicators: Power, WAN, LAN1/2/3/4, 5G WiFi, 2.4G WiFi, WPS
-
Antenna: 4x External 3dBi Antennas
-
Power: Input - 100-240V AC, 50Hz; Output - 12V/1A
-
Software:
- WAN Connection Types - DHCP Client/Static IP/PPPoE, PPTP/ L2TP/ Bridge
- PPP Auto Reconnect and Configurable Timeouts, PPP Auto Reconnect on WAN Access/PPP on Demand, Static Route, Dynamic RIPv1, RIPv2 support
- MTU Adjustment
- DNS Relay Agent/DDNS Support
- Network Address Translation (NAT)
- Port Forwarding, DMZ Support, UPnP(Universal Plug and Play)
- NAT Application Level Gateway for popular applications
- IGMP Snooping v1/2 and IGMP Multicast
- DHCP: Server, Client, DHCP Client List, Address Reservation, DHCP Relay
- Parental Control
- PAP/CHAP for PPP mode
- NAT for Firewall
- SPI Firewall
- 2 Level (User/Admin) Authentication to Router
- IP and MAC Filtering
- Quality of Service - Priority Queuing /Classification Rules /802.1p, WMM
- VPN Pass-through - IPSec/PPTP/L2TP Pass-through
- Dynamic DNS - DynDns, NO-IP
- Management Support - Web Based GUI,FTP /HTTP /Telnet, Command Line Interface, Diagnostic Test, Firmware Upgrade-able, Supports Remote Access Control
-
Operating System: Windows 8/7/vista/XP, Mac OS, Android, iOS
-
Environment:
-
Operating Temperature: -10°C~55°C(14~131°F)
-
Storage Temperature: -30°C~60°C(-22~140°F)
-
Operating Humidity: 5%~95% non-condensing
-
Storage Humidity: 5%~90% non-condensing
-
Package Content:
- AC1200 Wireless Dual Band Router KW6515
- Power Adapter
- RJ45 Cable
- Quick Setup Guide
