Description :

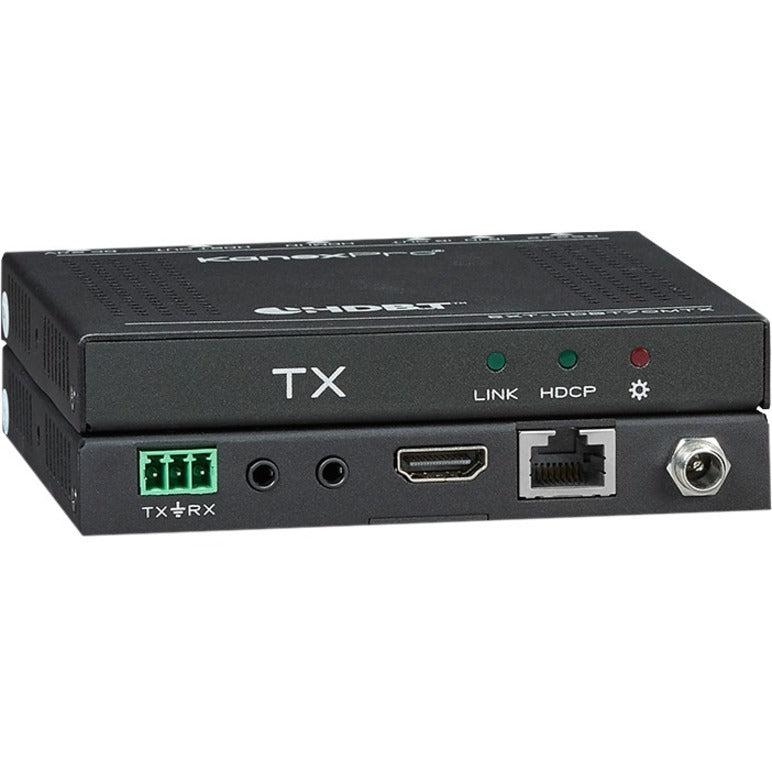

KanexPro UltraSlim 4K/30 HDMI Transmitter over HDBaseT- 230ft. (70m) - 1 Input Device - 229.66 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 4K - 4096 x 2160 - Twisted Pair - Category 6 - Rack-mountableThe KanexPro EXT-HDBT70MTX is an HDCP 2.2 compliant transmitter - extender consisting of one HDMI input one Ethernet output and IR + RS-232 controls. It uses HDBaseT technology to transmit uncompressed, high-resolution 1080p/ 4K signals from transmitter to the receiver via a CAT5e/CAT6a cable at up to 70/40m. Moreover, EXT-HDBT70M supports CEC, bi- directional RS232 & IR control, and bi-directional PoH (power over HDBaseT) function.
Applications
Ideal for use in digital signage applications, healthcare AV, control rooms, educational facilities, airports, commanding centers and home theater.
Please note: use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.
Specifications :
General Information
Manufacturer | KanexPro |
---|---|
Manufacturer Part Number | EXT-HDBT70MTX |
Manufacturer Website Address | http://www.kanexpro.com |
Brand Name | KanexPro |
Product Name | UltraSlim 4K/30 HDMI Transmitter over HDBaseT- 230ft. (70m) |
Product Type | Video Extender Transmitter |
UPC | 0813982021365 |
Network (RJ-45) | Yes |
---|
Package Contents |
|
---|
Limited Warranty | 3 Year |
---|
