IOGEAR GCS1808KITU Combo KVM Switch

Description :

IOGEAR GCS1808KITU Combo KVM Switch

The GCS1808KITU KVM is a combo VGA switch that includes 8 USB KVM cables (4 x 6ft and 4 x 10ft). Access and control of up to 64 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 64 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS1808KITU features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.

More from the Manufacturer

• Rack mountable in a 19" (1U) system rack


• Front USB Port - for system upgrades and shared peripherals (fully compliant with USB 1.1)


• Maximum video resolution: up to 2048 x 1536


• Security - 2 level password protection for OSD


• Cascade up to 2 levels* - control up to 128 computers from a single console


• Easy to operate - computer selection via front panel LED's, intuitive OSD (on screen display) and hotkeys


• Broadcast Mode to send commands to all connected computers


• Auto Scan Mode to monitor connected computers


• Supports both USB and PS/2, VGA computers


• Multi-platform OS support - Windows®, Mac, Oracle® Solaris and Linux®

Product Type: KVM Switchbox
Environmentally Friendly: Yes
Environmental Certification: RoHS
Rack Height: 1U
Brand Name: IOGEAR
Form Factor: Rack-mountable
Manufacturer: IOGEAR, Inc
Product Name: GCS1808KITU Combo KVM Switch
Manufacturer Part Number: GCS1808KITU
Manufacturer Website Address: http://www.iogear.com

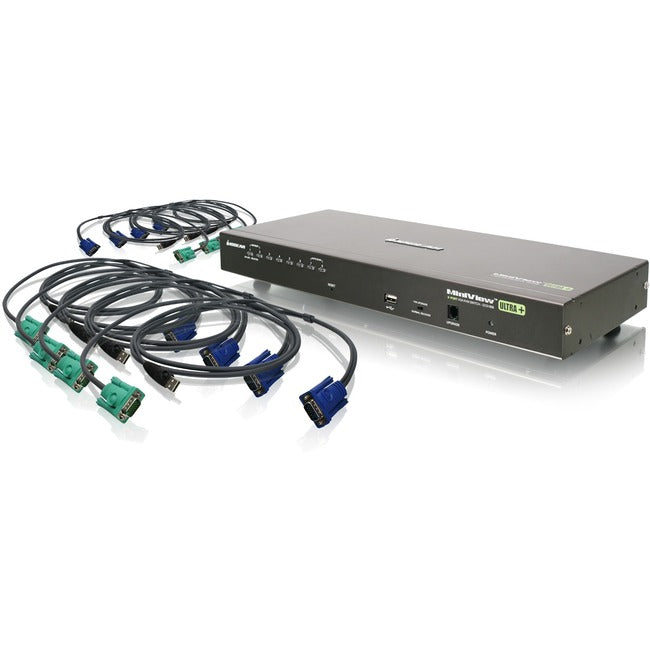

Package Contents:

• GCS1808KITU Combo KVM Switch


• 4 x USB KVM Cables (6ft - G2L5202U)


• 4 x USB KVM Cables (10ft - G2L5203U)


• 1 x PS/2 KVM Cable (6ft - G2L5202P)


• 1 x Console Cable


• 1 x Cascade Cable


• 1 x Firmware Upgrade Cable


• 1 x Grounding Wire


• 1 x Foot Pad Set (4 Pads)


• 1 x Power Adapter


• 1 x Standard Rack Mounting Kit


• 1 x Installation Guide


• 1 x Warranty Card
