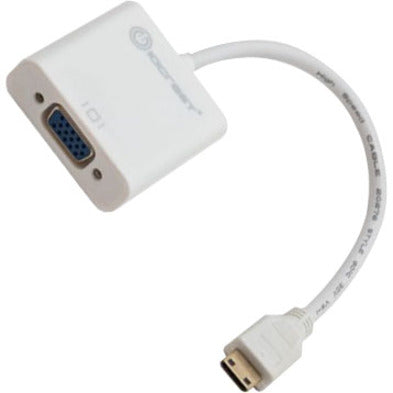

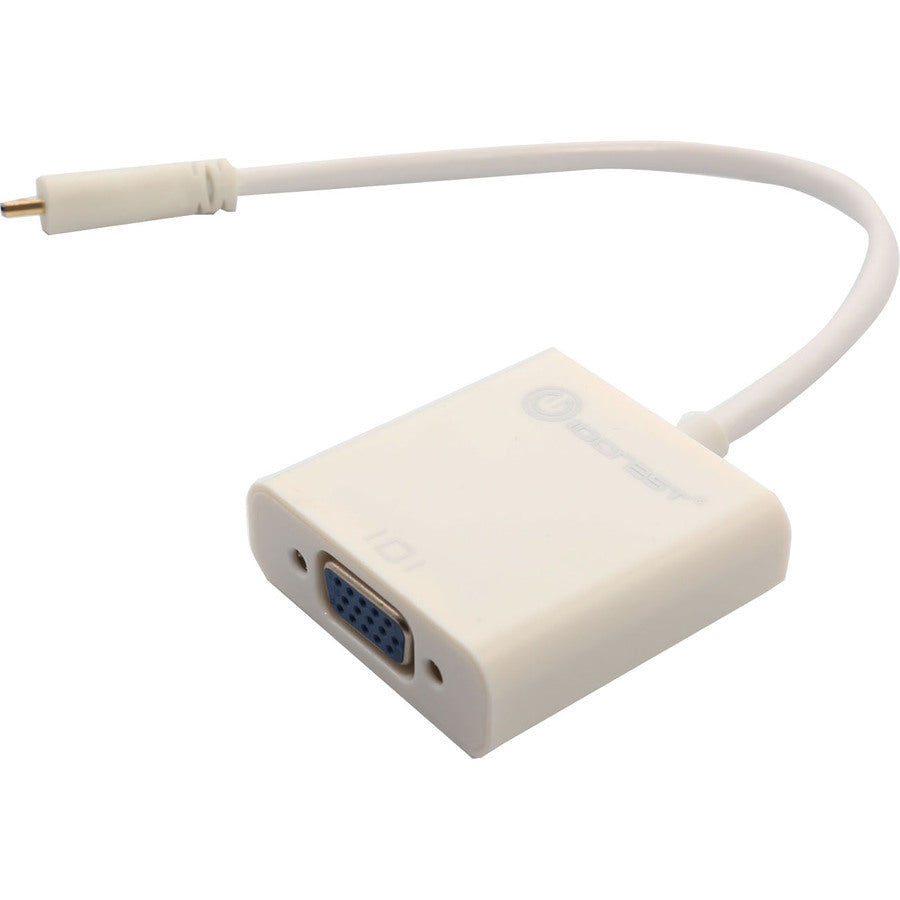

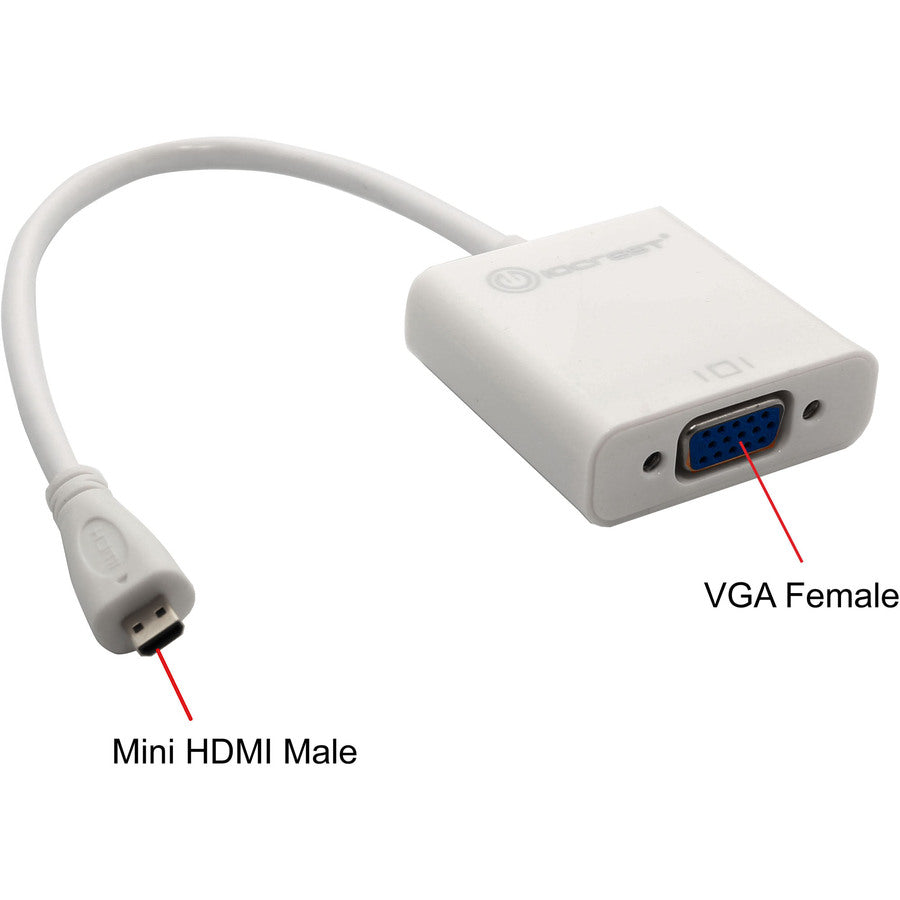

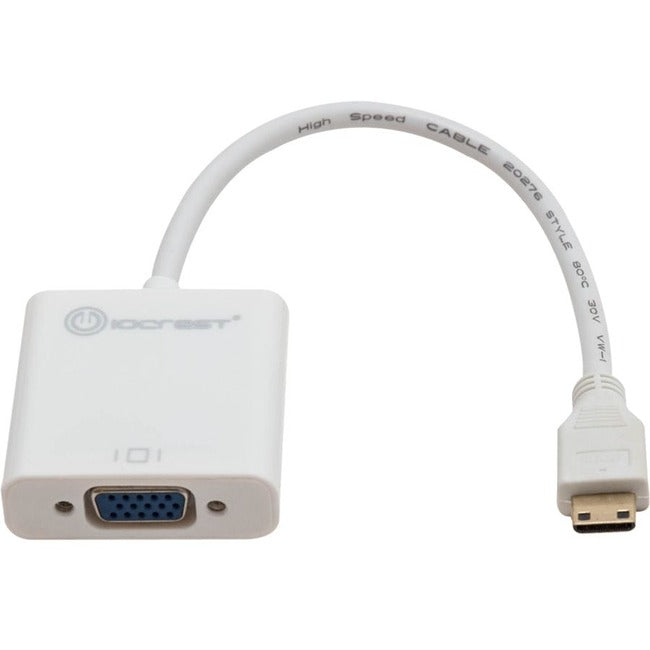

IO Crest Active Mini HDMI Male to VGA Female Adapter SY-ADA31046

Description :

IO Crest Active Mini HDMI Male to VGA Female Adapter

Convert HDMI signals into VGA outputs at a maximum conversion rate of 200 MHz with IIS. The HDMI Receiver integrated is compliant with HDMI 1.4b. The DACs are based on current source architecture. And the VGA output meet VESA VSIS v1r2 clock jitter target.

• VGA/HDMI connection detection supported


• Integrated EDID buffer


• On-chip encoder supports 2 channel IIS/S/PDIF audio output


• Supports VESA and CEA timing standards up to WUXGA 1920x1200@60MHz and 1920x1080@60MHz.


• Analog RGB output for VGA with Triple 9-bit DAC up to 200MHz pixel rate.


• Compliant with HDMI 1.4 specification


• Supports Mini HDMI Standard Norm

Product Type: Video Cable
Product Color: White
Brand Name: IO Crest
Manufacturer: SYBA Multimedia, Inc
Product Name: Active Mini HDMI Male to VGA Female Adapter
Manufacturer Part Number: SY-ADA31046
Manufacturer Website Address: http://www.syba.com
Weight (Approximate): 0.08 lb
