Advantech ICR-3241W Wi-Fi 5 IEEE 802.11ac 2 SIM Cellular Wireless Router ICR-3241W-1ND

Description :

Advantech ICR-3241W Wi-Fi 5 IEEE 802.11ac 2 SIM Cellular Wireless Router
The ICR-3200 LTE gateway is the perfect way to connect IP or serial devices to a cellular network. Industrial M2M and IoT applications include kiosks, industrial PCs, HMIs, traffic controllers, meters, UPS systems, and much more.

With LTE Cat.4 upload speeds of up to 50 Mbps and download speeds of up to 150 Mbps, the router provides ample bandwidth for high data demand applications such as CCTV or public Wi-Fi hotspots.

In addition to its two independent or switched Ethernet ports, serial ports RS232 and RS485, ICR-3200 has built-in digital I/O connectivity, backup real-time clock and sleep mode support. The device has two SIM readers protected by metallic cover for carrier failover redundancy. As an addition the router is ready to use internal eSIM.

Optional built-in GNSS chipset provides information about the accurate position of the router. An optional built-in Wi-Fi and Bluetooth v5.1 module (class 1) are also available. WiFi with 802.11a,b,g,n,ac modes, and MU-MIMO support is appropriate for on-board Wi-Fi transport applications.

The router supports VPN tunnel creation using various protocols to ensure safe communications. The router provides diagnostic functions which include automatic monitoring of the wireless and wired connections, automatic restart in case of connection losses, and a hardware watchdog that monitors the router status.

• 4G LTE Cat.4 VPN Gateway for Industrial IoT applications


• Carriers support; Verizon, AT&T, T-Mobile, FirstNet (Public Safety)


• Powerful CPU with 1.3 GB storage to host customer SW applications

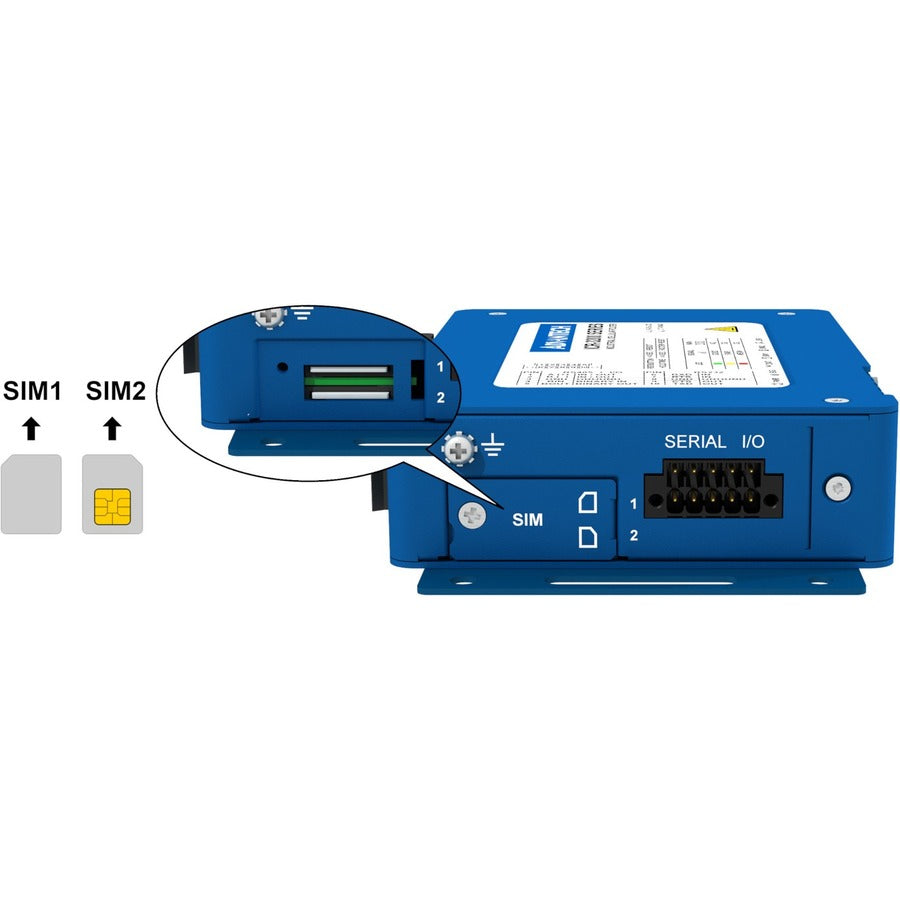

• 2 SIM with cover, Dual SIM + eSIM

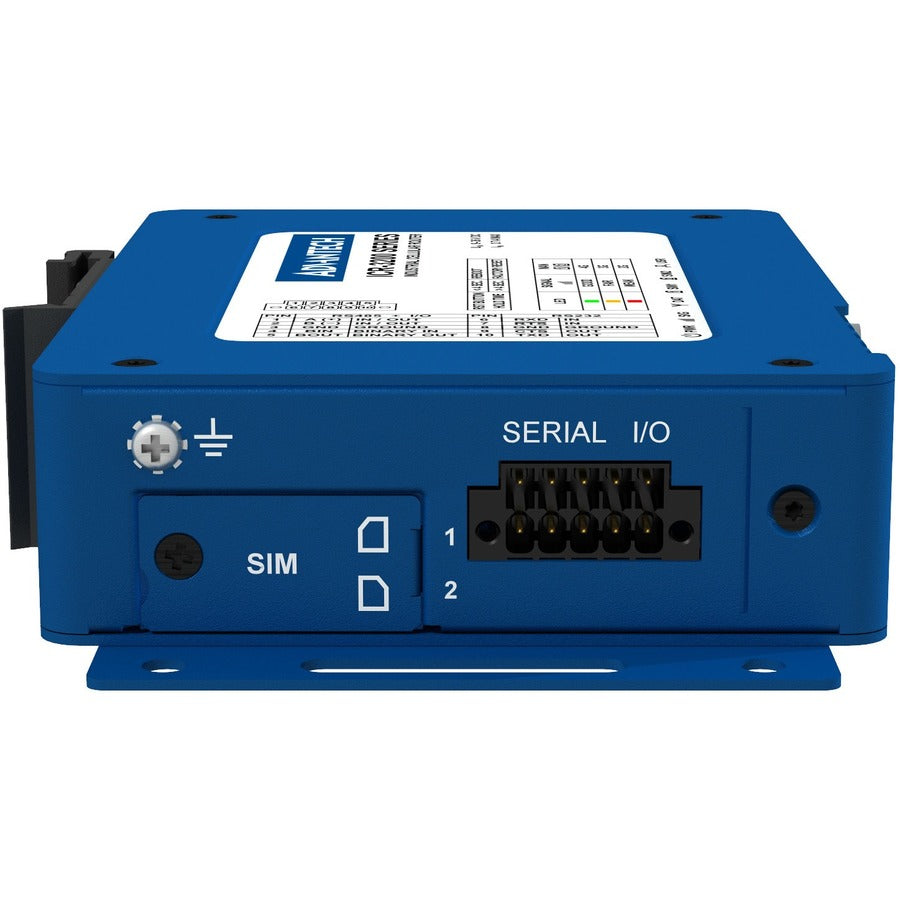

• 2 Ethernet 10/100, 1x RS232, 1x RS485 and I/O


• Optional Wi-Fi 802.11ac using MU-MIMO technology

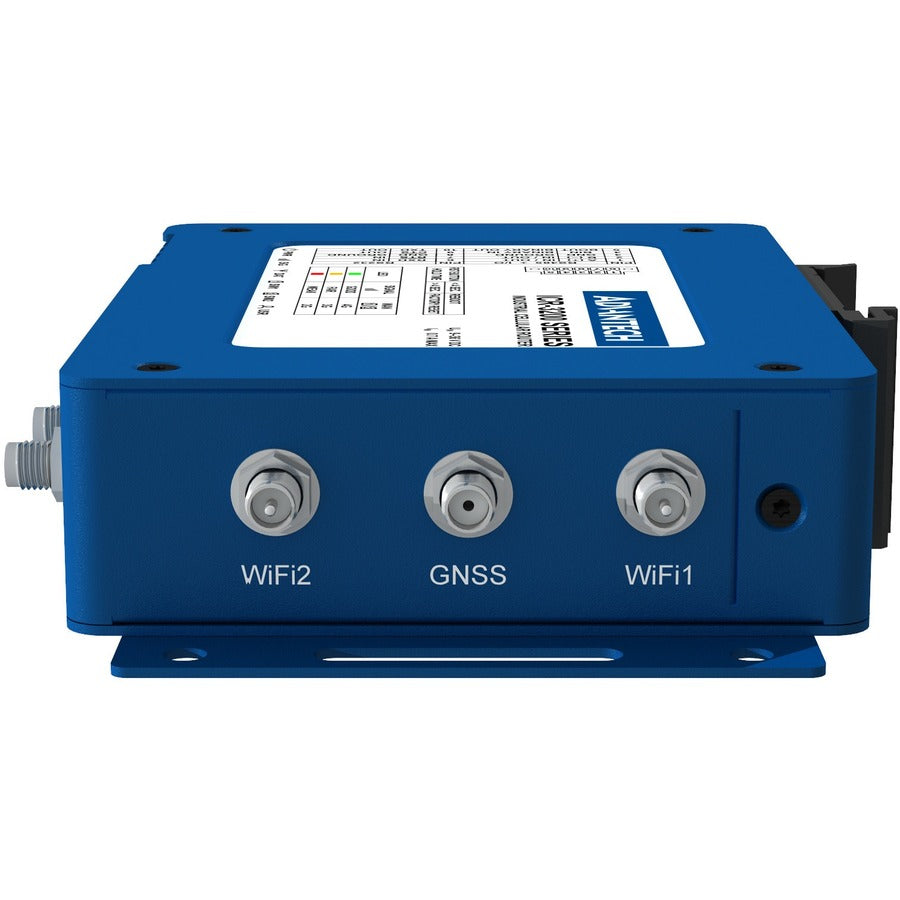

• Optional GNSS receiver


• Robust metal cover with DIN and Wall mount options


• Operational temperature range from -40 °C to +75 °C


• Sleep mode & Power ignition & Backup real time clock

Product Type: Wireless Router
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: Czech Republic
Product Series: ICR-3200
Brand Name: Advantech
Form Factor: Wall Mountable
Manufacturer: Advantech Co., Ltd
Product Model: ICR-3241W
Product Name: Industrial IoT 4G LTE Router & Gateway
Manufacturer Part Number: ICR-3241W-1ND
Manufacturer Website Address: http://www.advantech.com
Package Contents:

• Industrial IoT 4G LTE Router & Gateway
• Wall Mount Kit
• DIN Clip
• Serial / IO Connector
• PWR Connector
• Quick Start Guide
