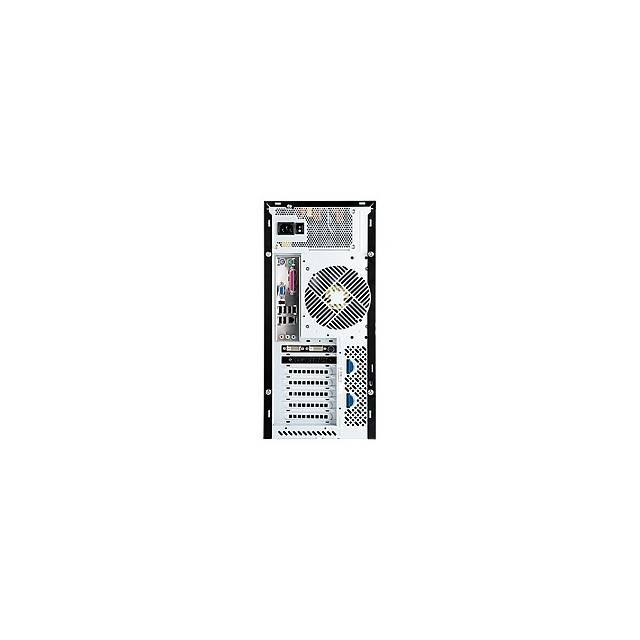

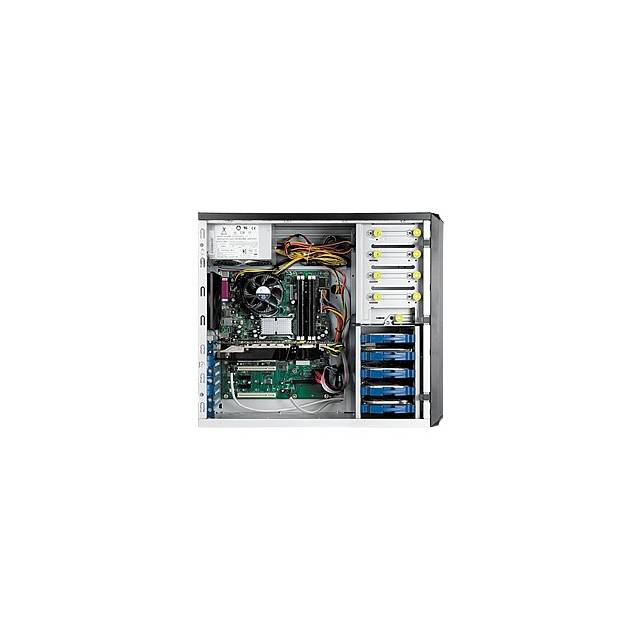

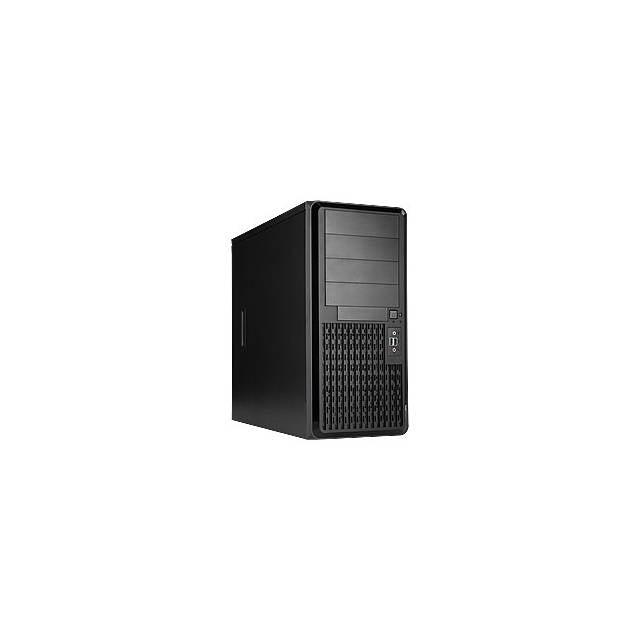

Mfr Part Number: IW-PE689.U3
-
Case Type: Pedestal Entry Server Chassis
-
Material: 1.0 mm SECC
-
M/B Type: ATX (12" x 9.6"), CEB (12" x 10.5")
-
Drive Bays: 10
-
External: 4x 5.25", 1x 3.5"
-
Internal: 5x 3.5" or 5x 2.5"
-
Expansion Slots: 7 Full Height PCI Slots
-
Chassis Security: Intrusion Switch, Padlock Loop, Kensington Lock Supported
-
Cooling System:
-
Front: 1x 120 mm or 1x 92 mm Fan PWM
-
Rear: 1x 120mm PWM Fan
-
Front Panel:
-
Front Control: Power Switch, System Reset, Audio
-
Ports: 2x USB 3.0 Ports
-
Power Supply: None, Support PS/2 ATX12V, EPS12V
-
Option: not included with Storage Kit (hotswapable bays)
-
Dimensions (WxDxH): 7.9 x 18.3 x 16.9 inch / 200.0 x 465.0 x 430.0 mm (w/o Front Door)
