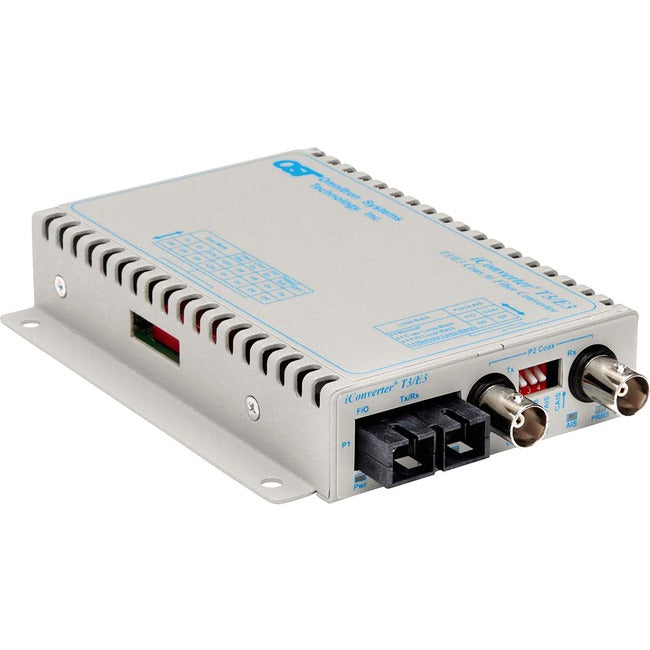

iConverter T3/E3 Fiber Media Converter Coaxial SC Single-Mode 30km 8743-1-D

Description :

iConverter T3/E3 Fiber Media Converter Coaxial SC Single-Mode 30km
The iConverter T3/E3 media converter provides standard T3 (44.736Mbps) or E3 (34.368Mbps) coax to fiber conversion and can be used to connect to devices such as PBXs, multiplexers, routers and video servers via fiber. T3/E3 media converters operate in pairs, extending distances over fiber, which improves noise immunity, quality of service, intrusion protection and network security.

• Supports B3ZS for T3 (DS3) and HDB3 for E3 codes


• Framing independent; supports framed or unframed and channelized or fractional unchannelized data


• Supports RG-59 75 ohms coax interface with shorthaul and long-haul build-out options


• Features user-selectable local and remote loopback modes and Force 1s (AIS) to Coax and Fiber


• Management is available with the addition of a management module to the chassis


• Modules are hot-swappable and can be used in the 19-Module, 5-Module, 2-Module or 1-Module iConverter chassis


• LED displays for immediate visual status of each port


• Lifetime Warranty and free 24/7 Technical Support

• Attach multiple devices together or expand the number of devices connected to your existing network by using 3 transceiver/media converter


• Coaxial cable for environment requiring moderate coverage and low bandwidth


• With T3/E3 technology get up to 34.368Mbps (E-carrier) or 44.736Mbps (T-carrier) data transfer rate over service provider link


• The Rack-mountable provides convenient installation

Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: T3/E3
Brand Name: Omnitron Systems
Form Factor: Wall Mountable
Manufacturer: Omnitron Systems
Product Model: 8743-1-x
Product Name: iConverter T3/E3 SC Single-Mode 30km Wall-Mount Standalone US AC Powered
Package Type: Retail
Product Line: iConverter
Manufacturer Part Number: 8743-1-D
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:

• iConverter T3/E3 SC Single-Mode 30km Wall-Mount Standalone US AC Powered


• US Power Supply - 100-120Volt / 60Hz


• User Manual
