Description :

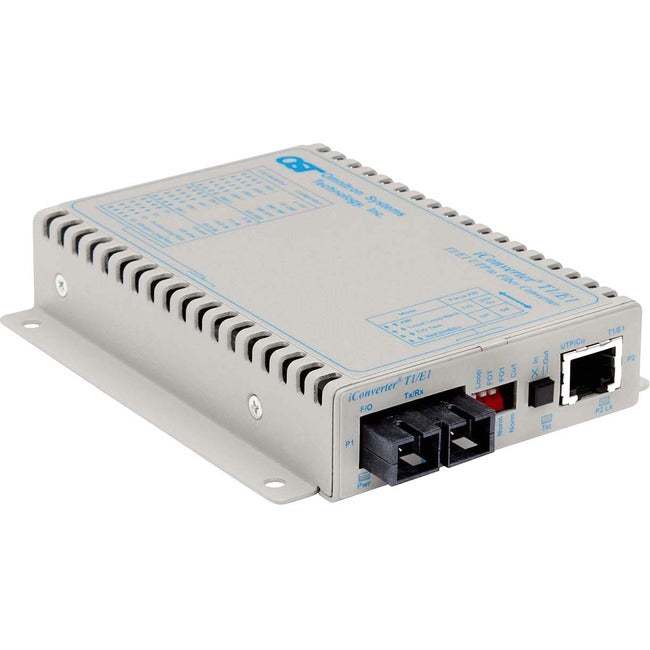

iConverter T1/E1 Fiber Media Converter RJ48 SC Multimode 5km
The iConverter T1/E1 media converter provides standard T1 (1.544Mbps) or E1 (2.048Mbps) copper-to-fiber conversion and can be used to extend the demarcation point between service provider and networking equipment. T1/E1 media converters operate in pairs, extending distances over fiber, which improves noise immunity, quality of service, intrusion protection and network security.
Designed as a transparent repeater, the iConverter T1/E1 supports standard T1, E1 and Primary Rate Interface (PRI), voice or data. The converter also supports AMI, B8ZS and HDB3 line codes. DIP-switches provide easy configuration of T1/E1 line codes and line build-out.
The iConverter T1/E1 is available as a compact, unmanaged standalone unit with an RJ48 interface or as a chassis managed plug-in module with RJ48 or coax interface.
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- With T1/E1 technology get up to 2.048Mbps (E-carrier) or 1.544Mbps (T-carrier) data transfer rate over service provider link
- Rackmountable feature for convenient and safe installation of device
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: T1/E1
Brand Name: Omnitron Systems
Form Factor: Wall Mountable
Manufacturer: Omnitron Systems
Product Model: 8702-0-x
Product Name: iConverter T1/E1 SC Multimode 5km Standalone US AC Powered
Package Type: Retail
Product Line: iConverter
Manufacturer Part Number: 8702-0-D
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:
- iConverter T1/E1 SC Multimode 5km Standalone US AC Powered
- US Power Supply - 120Volt / 60Hz
- User Manual
Limited Warranty: Lifetime
Weight (Approximate): 8 oz
Specifications :
General Information
Manufacturer | Omnitron Systems |
---|---|
Manufacturer Part Number | 8702-0-D |
Manufacturer Website Address | http://www.omnitron-systems.com |
Brand Name | Omnitron Systems |
Product Line | iConverter |
Product Series | T1/E1 |
Product Model | 8702-0-x |
Product Name | iConverter T1/E1 SC Multimode 5km Standalone US AC Powered |
Product Type | Transceiver/Media Converter |
UPC | 0800975029910 |
Height | 1" |
---|---|
Width | 3.1" |
Depth | 4.8" |
Weight (Approximate) | 8 oz |
Package Contents |
|
---|---|
Environmentally Friendly | Yes |
Limited Warranty | Lifetime |
---|
