Omnitron Systems

Iconverter Rs-422/485 Serial To Fiber Media Converter Db-9 St Multimode 5Km Module

SKU: 8780-0

Regular price $290.48
Regular price Sale price $290.48
Sale Sold out
Shipping calculated at checkout.
          Description
          Que. & Ans.
          Reviews

          Description :

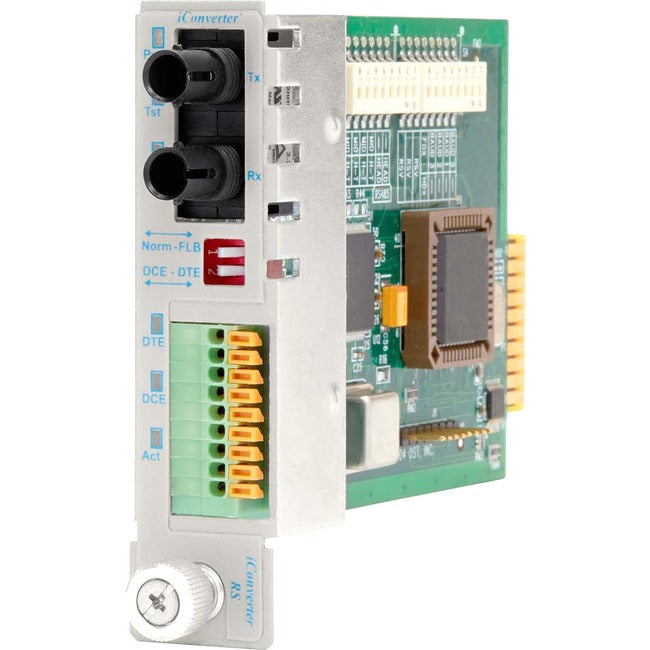

          iConverter RS-422/485 Serial to Fiber Media Converter DB-9 ST Multimode 5km Module
          The Omnitron iConverter RS422/485 is a managed serial RS-422 and RS-485 to fiber converter that transmits serial protocol over fiber media. Fiber transmission extends serial signals up to 120km, and is immune from electrical and magnetic interference.

          The RS422/485 is available with a single-mode, multimode or single-fiber transceiver. The serial port interface is available with either a DB-9 female connector or terminal block connector for field wiring.

          The RS422/485 automatically detects the signal baud rate of connected Full-Duplex serial device, ranging from 110 to 921,600 baud. It also automatically adjusts to changes in the connected device's Full-Duplex baud rate during operation without reconfiguration or interruption of service.

          Half-Duplex RS-485 and Full-Duplex RS-485 (sometimes referred to as Multipoint RS-422) operations are supported via a configurable baud rate DIP-switch to match the master/slave communication timing.


          • Supports baud rates ranging from 110 to 921,600 baud

          • Serial interface available as DB-9 or Terminal Block connector for field wiring

          • Features built-in configurable terminators

          • Features configurable baud rate for Half-Duplex RS-485 and Full-Duplex RS-485 operation

          • Supports RTS and CTS controls

          • Supports Point-to-Point Half and Full-Duplex, Multi- Point Full-Duplex, and either Head, Tail or Mid-Position

          • Features remote Fiber Loopback DIP-switch for easy testing of fiber link, even during serial transmission

          • Management is available with the addition of a management module to the chassis

          • Modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis

          • Lifetime Warranty and free 24/7 Technical Support


          • Expand your network capabilities with this 2 transceiver/media converter

          • With Optical Fiber cable, get the desired data transfer rate up to a required distance

          • The Rack-mountable provides convenient installation

          Product Type: Transceiver/Media Converter
          Environmentally Friendly: Yes
          Environmental Certification: WEEE
          Country Of Origin: United States
          Product Series: RS422/485
          Brand Name: Omnitron Systems
          Form Factor: Wall Mountable
          Manufacturer: Omnitron Systems
          Product Model: 8780-0-x
          Product Name: iConverter RS422/485 DB-9 ST Multimode 5km Plug-In Module
          Package Type: Retail
          Product Line: iConverter
          Manufacturer Part Number: 8780-0
          Manufacturer Website Address: http://www.omnitron-systems.com
          Package Contents:


          • iConverter RS422/485 DB-9 ST Multimode 5km Plug-In Module

          • User Manual


          Limited Warranty: Lifetime
          Weight (Approximate): 8 oz
