Iconverter Rs-232 Serial Fiber Media Converter Db-9 Sc Single-Mode 120Km Module

Description :

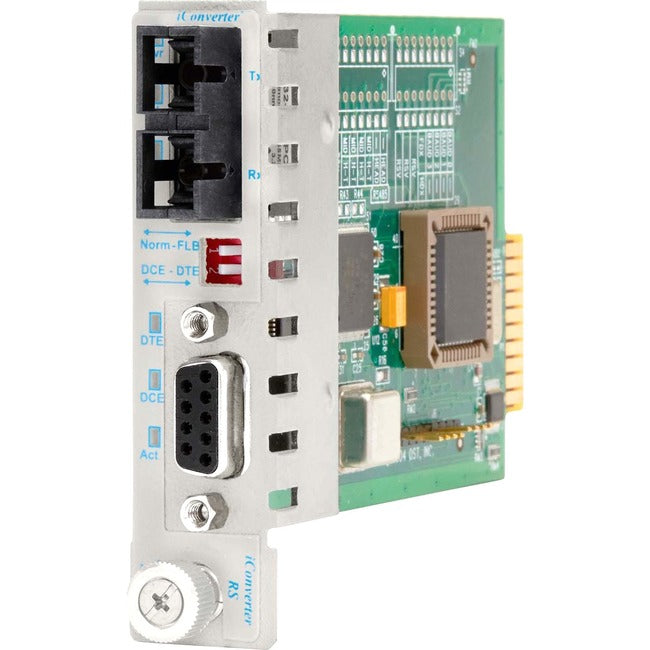

iConverter RS-232 Serial Fiber Media Converter DB-9 SC Single-Mode 120km Module
The Omnitron iConverter RS232 is a manageable serial RS-232 to fiber converter that transmits serial protocol over fiber media. Fiber transmission extends the serial signals up to 120km, and is immune from electrical and magnetic interference.

The serial port interface is available with either a DB-9 female connector or terminal block connector for field wiring.

The RS232 automatically detects the signal baud rate of the connected serial device, ranging from 110 to 921,600 baud. It also automatically adjusts to changes in the connected device's baud rate during operation without reconfiguration or interruption of service.

• Expand your network capabilities with this 2 transceiver/media converter


• With Optical Fiber cable, get the desired data transfer rate up to a required distance


• The Rack-mountable provides convenient installation

Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: RS232
Brand Name: Omnitron Systems
Form Factor: Mountable
Manufacturer: Omnitron Systems
Product Model: 8763-3-x
Product Name: iConverter RS232 DB-9 SC Single-Mode 120km Plug-In Module
Package Type: Retail
Product Line: iConverter
Manufacturer Part Number: 8763-3
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:

• iConverter RS232 DB-9 SC Single-Mode 120km Plug-In Module


• User Manual
