Description :

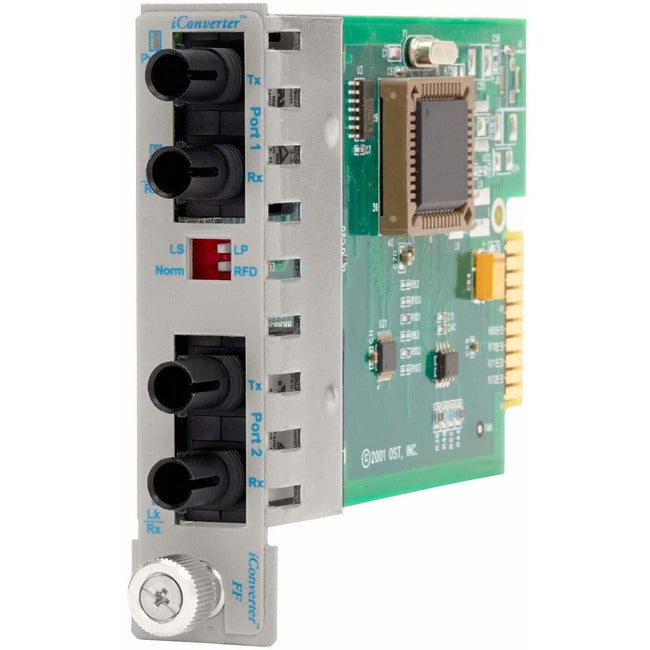

iConverter 100Mbps Ethernet Fiber to Fiber Media Converter ST Multimode 2km to Single-Mode 30km Module
The iConverter 100FF media converter provides multimode to single-mode and dual fiber to single fiber conversion. The 100FF is a cost-effective solution for extending fiber network distances.
iConverter 100FF models are available with multimode, single-mode and single-fiber options. The single-mode fiber port supports ST or SC connectors and distances up to 120km. The multimode fiber port supports ST or SC connectors and distances up to 5km.
The 100FF features user-selectable Link Propagate and Remote Fault Detection modes to facilitate quick fault detection, isolation and reporting.
The iConverter 100FF is available as a compact, unmanaged standalone unit, or as a chassis plug-in module that can be managed with a management module installed in the chassis. The hot-swappable plug-in module can be mounted in a high-density 19 or 5-Module chassis with any combination of redundant AC and DC power supplies. It can also be mounted in a 2-Module AC or DC powered chassis, or in a 1-Module chassis with AC or DC power input.
The standalone 100FF can be wall-mounted and is DC powered. It can be ordered with an external AC/DC power adapter, or it can be directly powered using a 2-pin terminal connector.
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
- With 100Base-FX technology get up to 100Mbps data transfer rate over optical fiber cable
- The Rack-mountable provides convenient installation
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Country Of Origin: United States
Product Series: 100FF
Brand Name: Omnitron Systems
Form Factor: Wall Mountable
Manufacturer: Omnitron Systems
Product Model: 8620-51-x
Product Name: iConverter 100FF ST Multimode 5km to ST Single-Mode 30km Plug-in Module
Package Type: Retail
Product Line: iConverter
Manufacturer Part Number: 8620-51
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:
- iConverter 100FF ST Multimode 5km to ST Single-Mode 30km Plug-in Module
- User Manual
Limited Warranty: Lifetime
Weight (Approximate): 8 oz
Specifications :
General Information
Manufacturer | Omnitron Systems |
---|---|
Manufacturer Part Number | 8620-51 |
Manufacturer Website Address | http://www.omnitron-systems.com |
Brand Name | Omnitron Systems |
Product Line | iConverter |
Product Series | 100FF |
Product Model | 8620-51-x |
Product Name | iConverter 100FF ST Multimode 5km to ST Single-Mode 30km Plug-in Module |
Product Type | Transceiver/Media Converter |
UPC | 0800975021891 |
Ethernet Technology | Fast Ethernet |
---|
Height | 2.8" |
---|---|
Width | 0.9" |
Depth | 4.5" |
Weight (Approximate) | 8 oz |
Package Contents |
|
---|---|
Environmentally Friendly | Yes |
Limited Warranty | Lifetime |
---|
