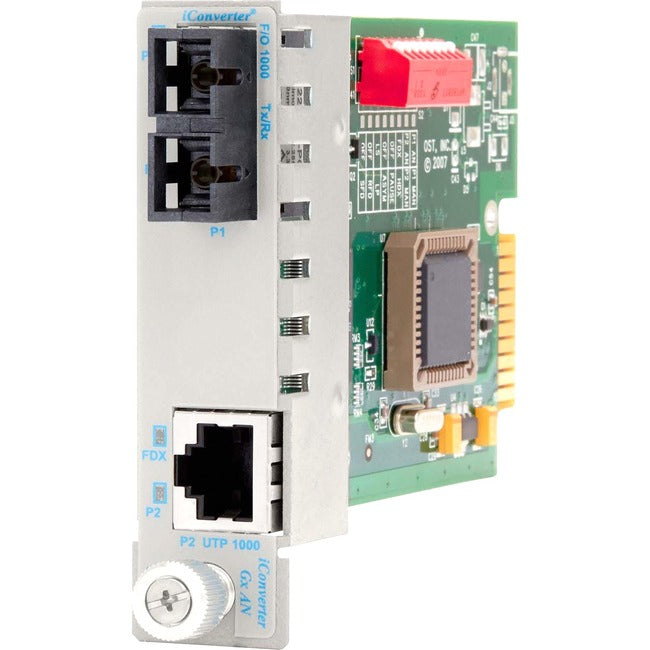

iConverter 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 SC Single-Mode 80km Module 8503N-3

Description :

iConverter 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 SC Single-Mode 80km Module
The iConverter Gx AN Media Converter is a manageable media converter that provides 1000BASE-T UTP to 1000BASE-X fiber conversion between Gigabit networking devices.

The UTP port supports auto-negotiation or forced negotiation of duplex modes and pause capability while the fiber port supports both manual or auto-negotiation.

• SFP models support Small Form Pluggable (SFP) transceivers with Optical Statistics for standard or CWDM applications


• Fixed-fiber connectors available for multimode and single-mode dual fiber and single-mode single-fiber


• UTP auto or forced negotitaion of duplex modes and pause capabilities


• Fiber port supports auto or manual negotiation


• User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting


• Management of the plug-in module is available with the addition of a management module to the chassis


• SNMP management via NetOutlook" provides module information, remote parameter configuration and trap notification


• Plug-in modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis


• LED displays for immediate visual status of each port


• Lifetime Warranty and free 24/7 Technical Support

• Expand your network capacity and fulfill requirement with this 2 transceiver/media converter


• With Twisted Pair cable, get the desired data transfer rate up to a required distance


• With 1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable


• Tuck the device out of the way with its Wall Mounting feature

Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: Gx AN
Brand Name: Omnitron Systems
Form Factor: Wall Mountable
Manufacturer: Omnitron Systems
Product Model: 8503N-3-x
Product Name: iConverter Gx AN SC Single-Mode 80km Plug-In Module
Package Type: Retail
Product Line: iConverter
Manufacturer Part Number: 8503N-3
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:

• iConverter Gx AN SC Single-Mode 80km Plug-In Module


• User Manual
