iConverter 10/100 Ethernet Single-Fiber Media Converter RJ45 SC Single-Mode BiDi 20km Module 8391-1

Description :

iConverter 10/100 Ethernet Single-Fiber Media Converter RJ45 SC Single-Mode BiDi 20km Module

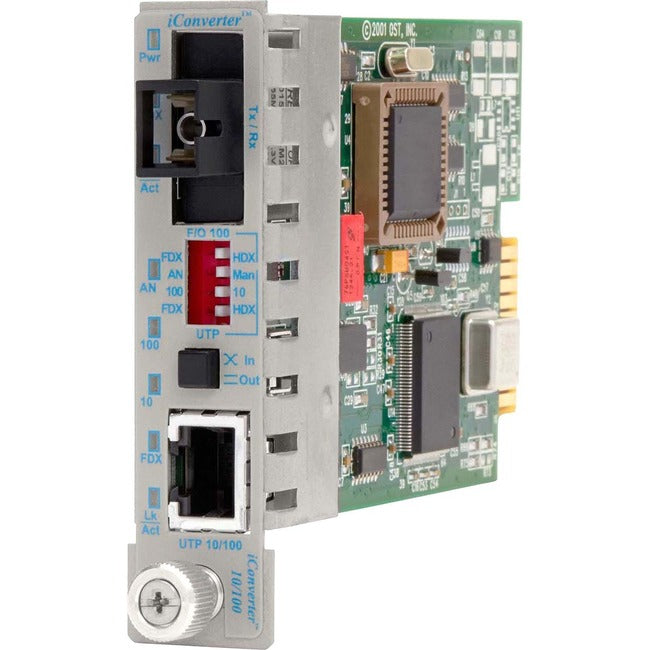

The iConverter 10/100 manageable media converter is a member of the modular iConverter product family. It provides UTP to Fiber conversion as well as rate conversion between 10BASE-T or 100BASE-Tx and 100BASE-Fx fiber. The 10/100 features user-selectable Link Propagate, Link Segment and Remote Fault Detection modes to facilitate quick fault detection, isolation and reporting.

• UTP port with 10/100 automatically supports Half or Full-Duplex auto-negotiation with a manual crossover switch


• User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting


• Management is available with the addition of a management module to the chassis


• Modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis


• Wide Temperature models available with temperature range of -40 to +60" C


• Lifetime Warranty and free 24/7 Technical Support

• Expand your network capacity and fulfill requirement with this 2 transceiver/media converter


• Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters


• With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable


• The Rail-mountable provides convenient installation

Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: 10/100
Brand Name: Omnitron Systems
Form Factor: Wall Mountable
Manufacturer: Omnitron Systems
Product Model: 8391-1-x
Product Name: iConverter 10/100 SC Single-Mode Single-Fiber 15/13 20km Plug-In Module
Package Type: Retail
Product Line: iConverter
Manufacturer Part Number: 8391-1
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:

• iConverter 10/100 SC Single-Mode Single-Fiber 15/13 20km Plug-In Module


• User Manual
